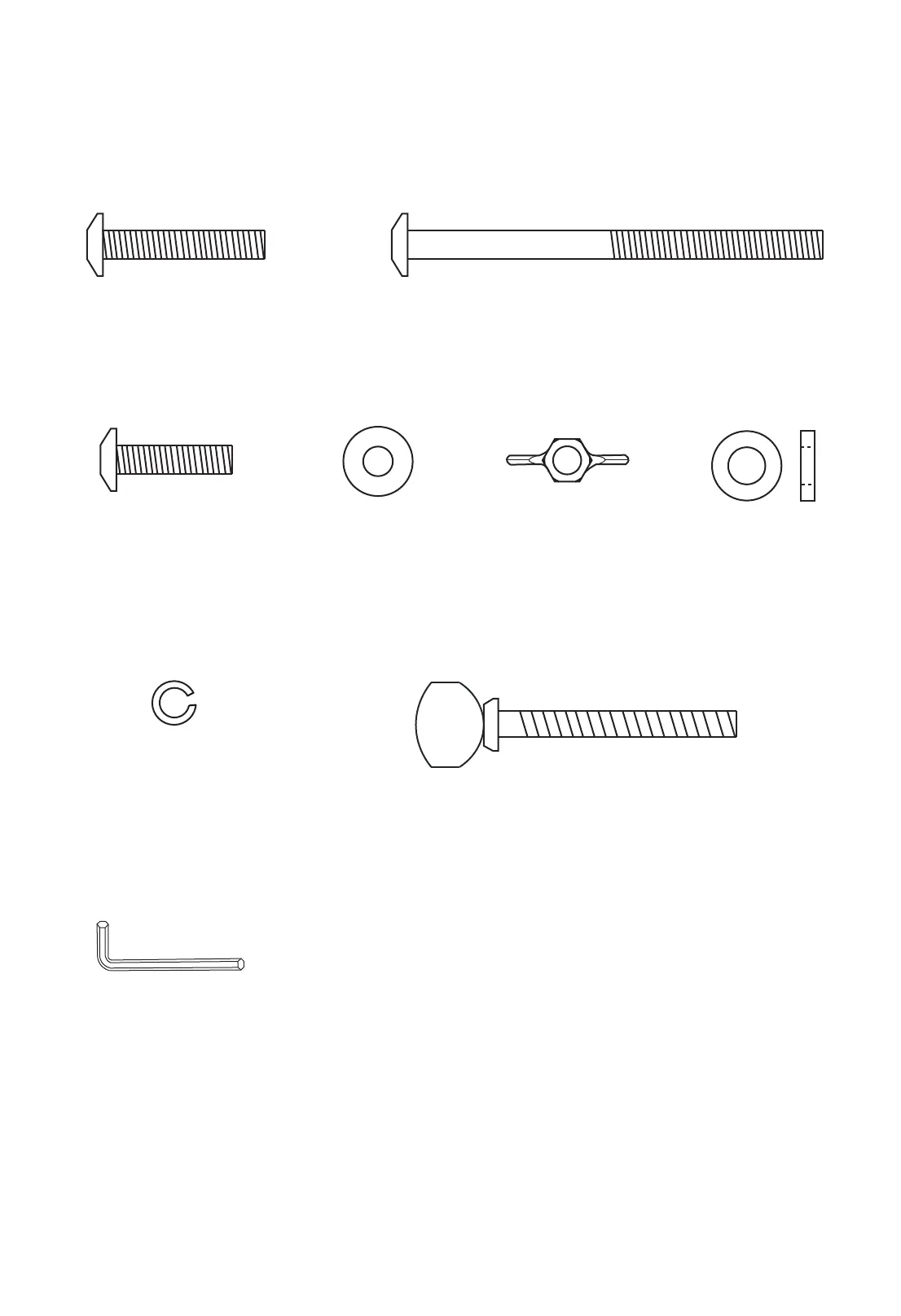

Triumph AL7100F - Hardware Identifier

H1 - M6 x 35mm
Allen Head Bolt
(1 pc)
H4 - M6 x 15mm
Flat Washer
(3 pcs)
H5 - M6
Wing Nut
(19 pcs)
H6 - Plastic
Bushing
(2 pcs)
H2 - M6 x 90mm
Allen Head Bolt
(2 pcs)
H3 - M6 x 25mm
Allen Head Bolt
(16 pcs)
3
For Customer Service Call 1-888-996-2729
© 2019 Escalade S por t s
All Rights Reserved
HARDWARE IDENTIFIER
(To Scale)
H7 - M6
Lock Washer
(16 pcs)
(Not to Scale)
T1 - Allen Wrench
(1 pc)
H8 - Plastic
Wing Bolt to
attach P17
Control Box
(1 pc)
