• Alternator Rotor - Removal
• Lower Crankcase - Removal
Due to the weight and size of the crankshaft, the three protectors in service tool
T3880504 must fitted to the crankcase to protect the oil spray jets.
If service tool T3880504 is not used the oil spray jets may get damaged and require
replacing.
NOTICE
When fitting service tool T3880504, make sure it sits on the oil spray jet and covers the
pipe.

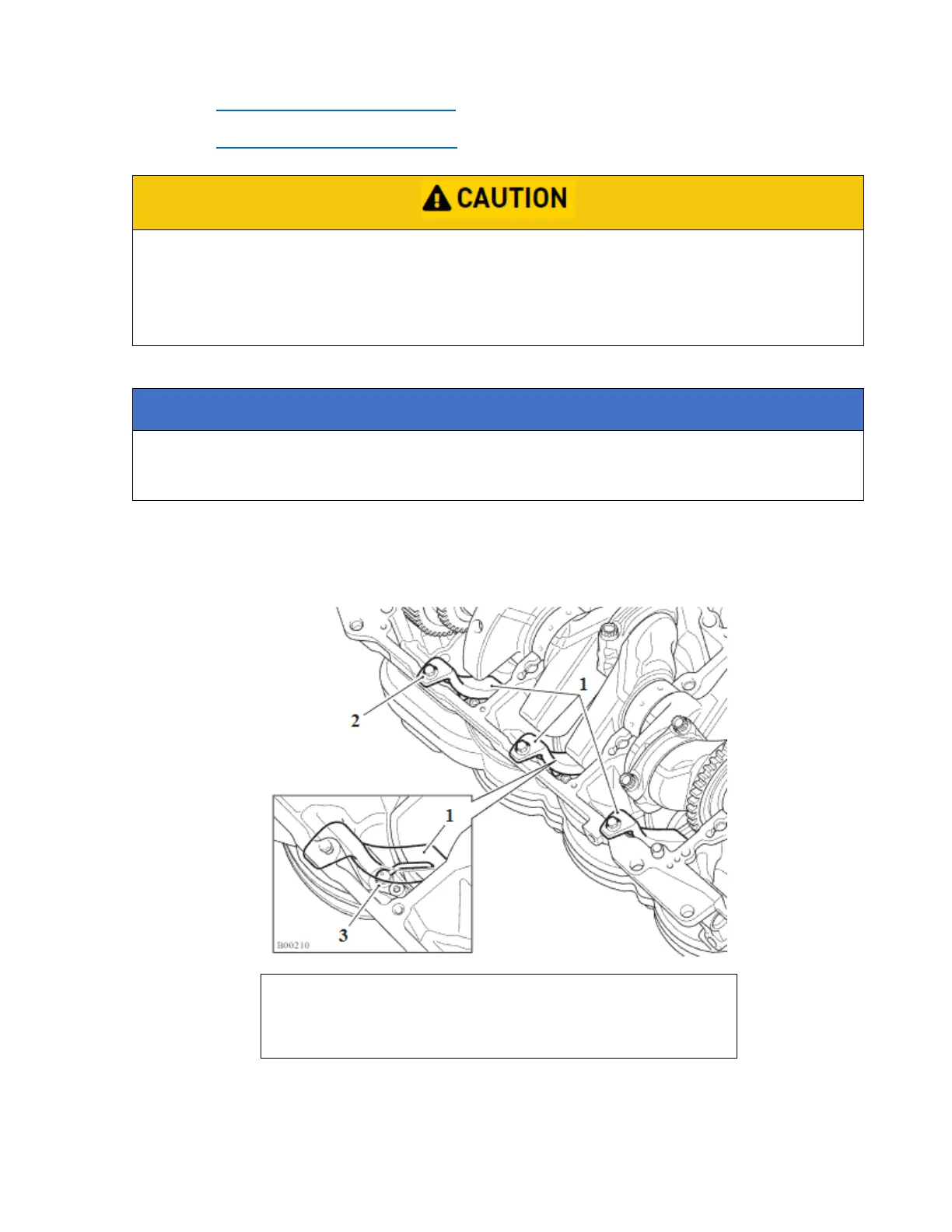

1. To protect the three oil spray jets from damage, use three of the M6 x 30 mm
crankcase fixings to fit service tool T3880504 as shown in the illustration below.
1. T3880504 - Oil spray jet protectors
2. M6 x 30 mm fixings
3. Oil spray jet
