1. Press a new actuator shaft oil seal to the lower crankcase as noted for removal, make
sure the sealing lip is facing inwards.
2. Lubricate the seal lip with molybdenum disulphide grease and fit the actuator shaft
into the lower crankcase as noted for removal.
3. Fit the washer and a new E-clip to the gear change actuator shaft.

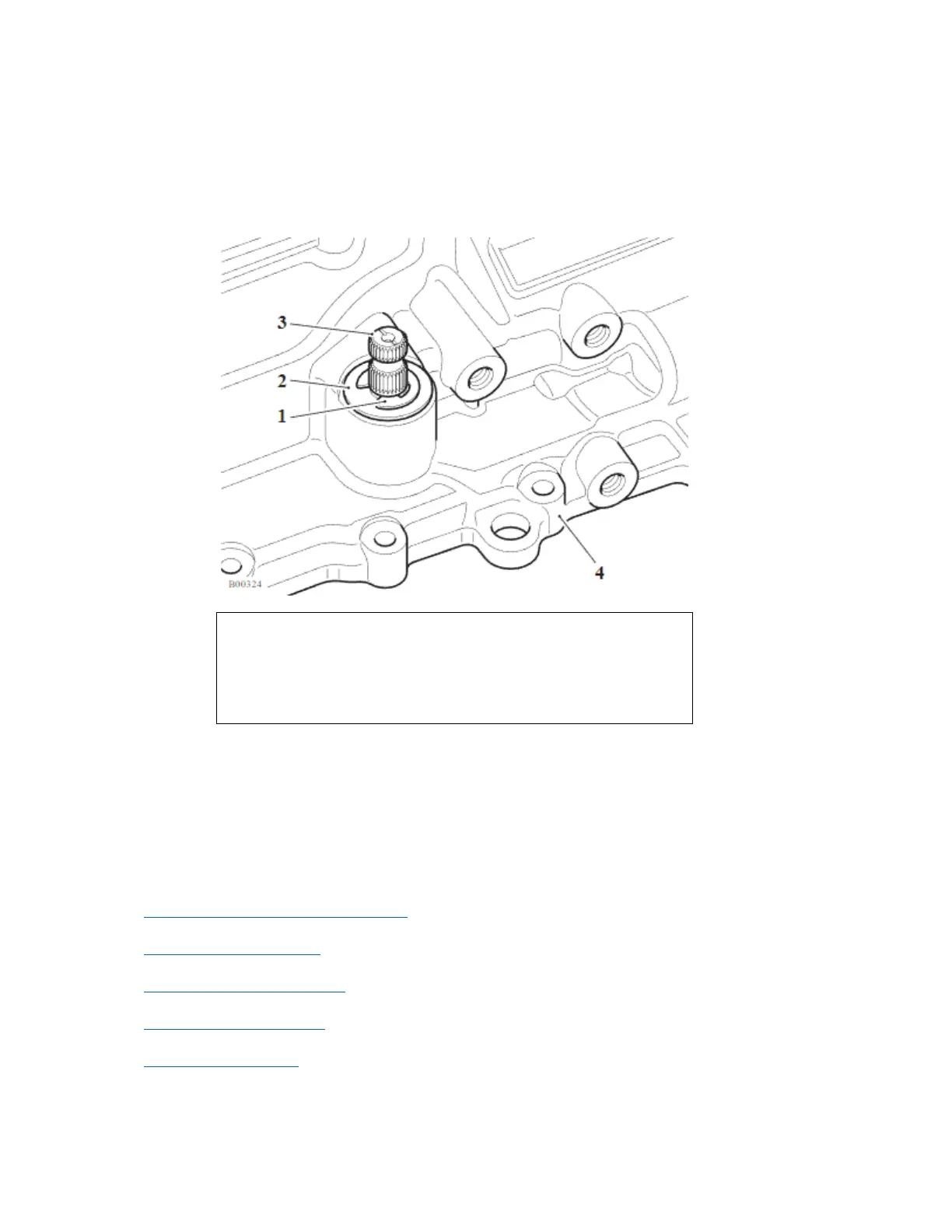

1. E-clip
2. Washer
3. Actuator shaft
4. Lower crankcase
4. Check the operation of the actuator shaft and its orientation before installing the
lower crankcase.
Perform the following operations:
• Lower Crankcase - Installation
• Engine - Installation
• Fuel Tank - Installation
• Battery - Installation
• Seat - Installation
