5. Once all six bolts have been tightened, go around again in sequence and recheck
each bolt is correctly torqued, if any bolt moves, go around again. Repeatedly check
the bolts in sequence until all are correctly torqued and do not move when checked,
this will ensure the sprag clutch housing is correctly seated on the rotor.
6. Fit the starter drive gear to the sprag clutch.
7. Withdraw the starter drive gear from the sprag clutch.

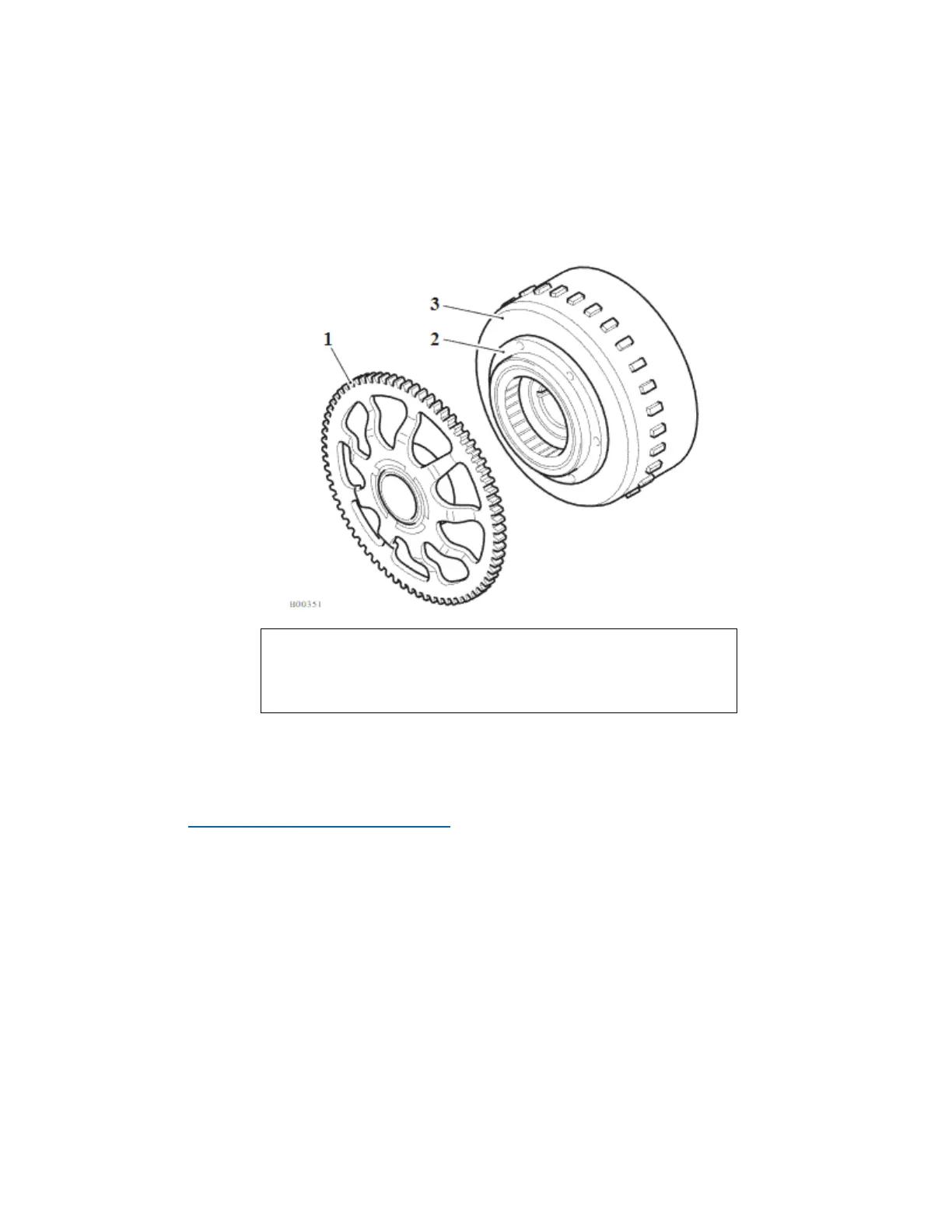

1. Starter drive gear
2. Sprag housing
3. Alternator rotor
Perform the following operations:
• Alternator Rotor - Installation
