Fuel Level Sensor – Installation
Make sure the motorcycle is stabilised and adequately supported.
A correctly supported motorcycle will help prevent it from falling.
An unstable motorcycle may fall, causing injury to the operator or damage to the
motorcycle.
Observe the warning advice given in the General Information section on the safe
handling of fuel and fuel containers.
A fire, causing personal injury and damage to property could result from spilled fuel or
fuel not handled or stored correctly.

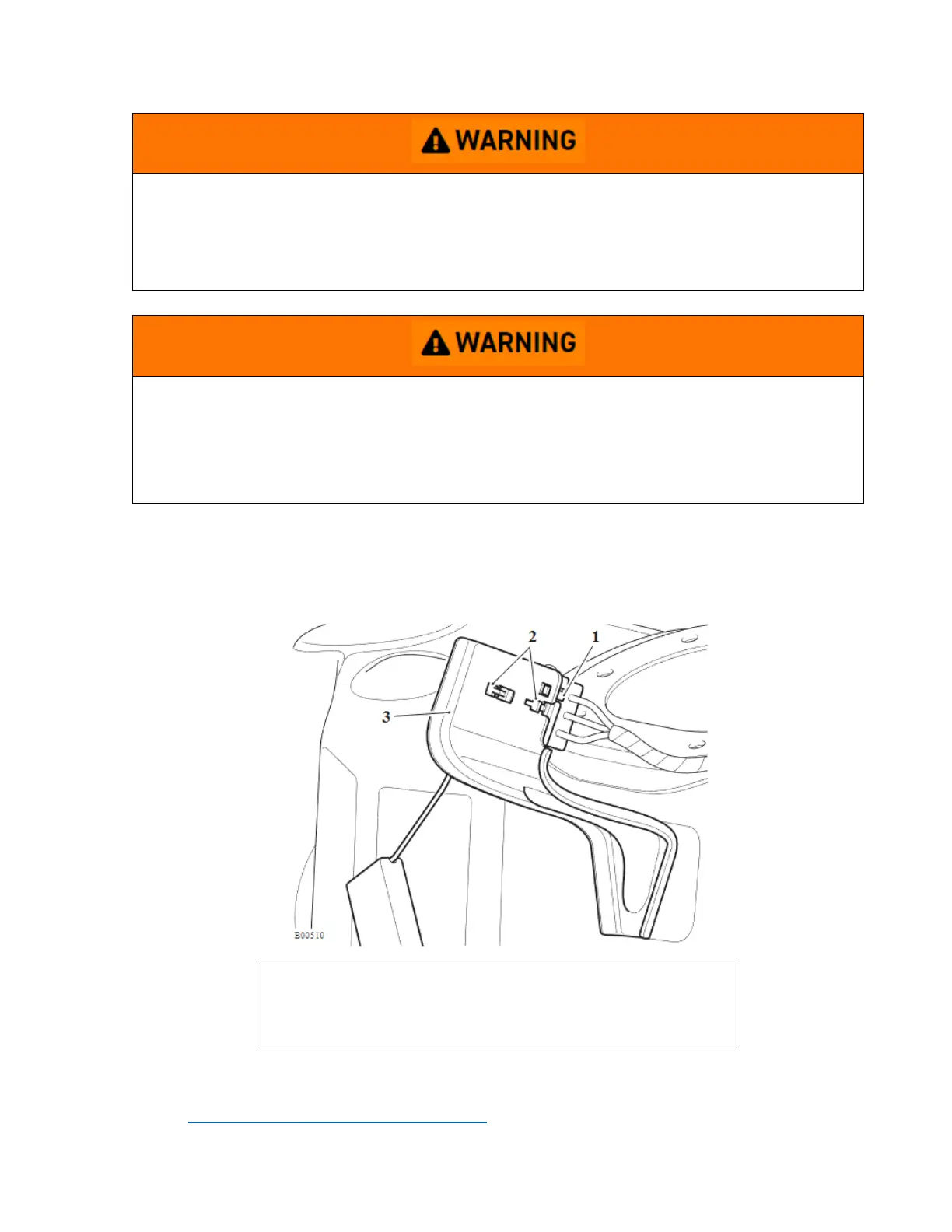

1. Align the two locating lugs into the holes in the bracket.
2. Slide the fuel level sensor down the bracket for the locking device to engage and
secure the sensor.
1. Locking device
2. Locating lugs
3. Bracket
Perform the following operations:
• Fuel Pump Assembly - Installation
