Triumph Rocket III Service Manual

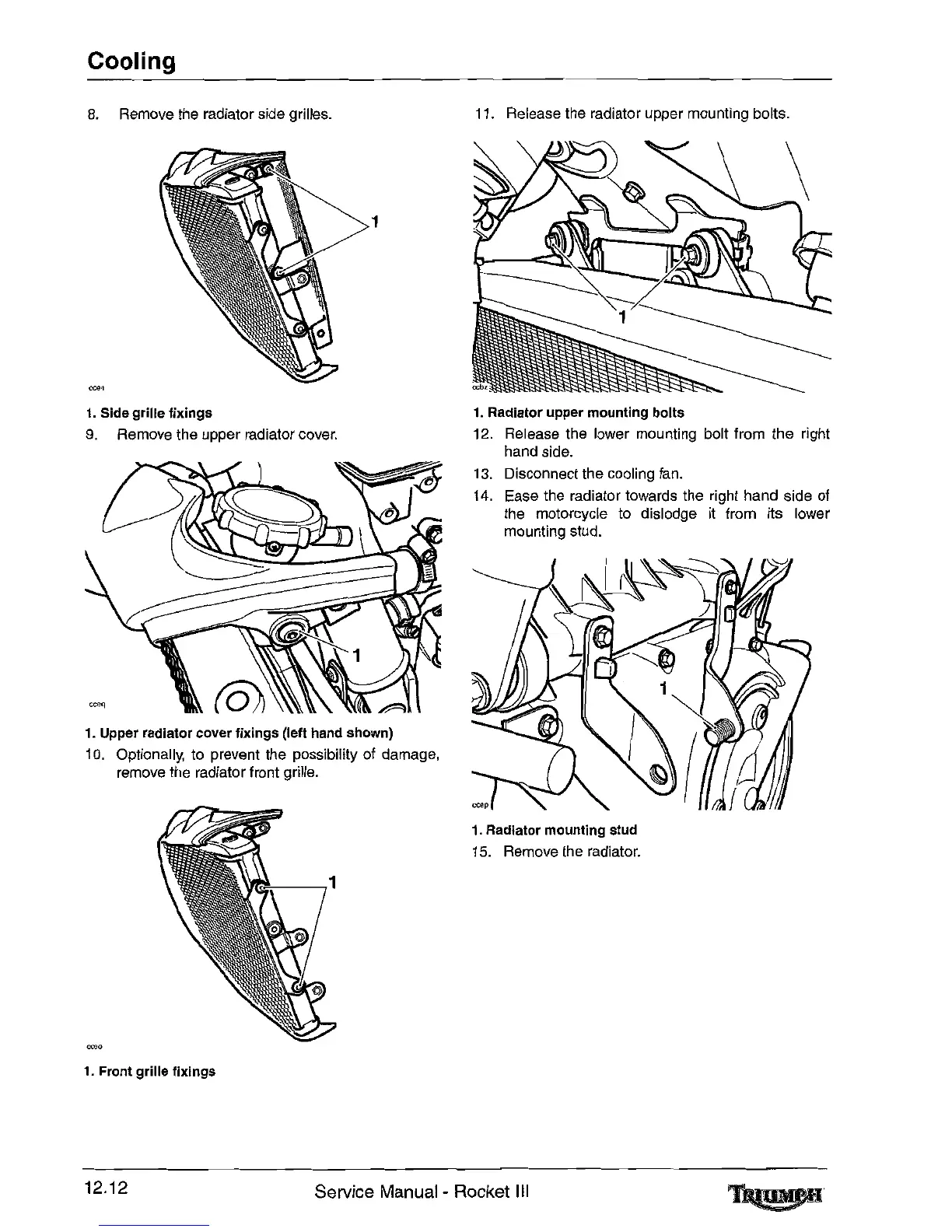

Cooling
8. Remove the radiator side grilles.
1
11. Release the radiator upper mounting bolts.
1. Side grille fixings
9. Remove the upper radiator cover.
1. Upper radiator cover fixings (left hand shown)
10. Optionally, to prevent the possibility of damage,
remove the radiator front grille.
1. Front grille fixings
1. Radiator upper mounting bolts
12. Release the lower mounting bolt from the right
hand side.
13. Disconnect the cooling
fan.
14. Ease the radiator towards the right hand side of
the motorcycle to dislodge
it from its lower
mounting stud.
1. Radiator mounting stud
15. Remove the radiator.
12.12
Service Manual - Rocket III

Triumph Rocket III Specifications

General

Compression Ratio	10.0:1
Final Drive	Shaft
Transmission	5-speed
Rear Brakes	Single 316mm disc, 2-piston caliper
Front Tire	150/80 R17
Rear Tire	240/50 R16
Dry Weight	320 kg (705 lbs)
Fuel System	Electronic fuel injection
Exhaust	3-into-1 into 2
Clutch	Wet, multi-plate
Frame	Tubular steel, twin spine
Rear Suspension	Twin shocks, adjustable preload
Front Brakes	Twin 320mm floating discs, 4-piston calipers
Front Wheel	17 x 3.5 in
Fuel Tank Capacity	24 liters (6.3 US gal)
Engine Type	Liquid-cooled, DOHC, in-line 3-cylinder
