Triumph Rocket III Service Manual

Front Suspension
Front Fork
Before starting work, ensure the motorcycle is stabilised and adequately supported.
from falling and causing injury to the operator
or damage to the motorcycle.
Disassembly
"'ob
1. Top cap
2.0-ring
3. Spacer
4. Spring seat
5. Spring
6. Damper rod/cylinder
7. Inner tube
8. Dust seal
~.

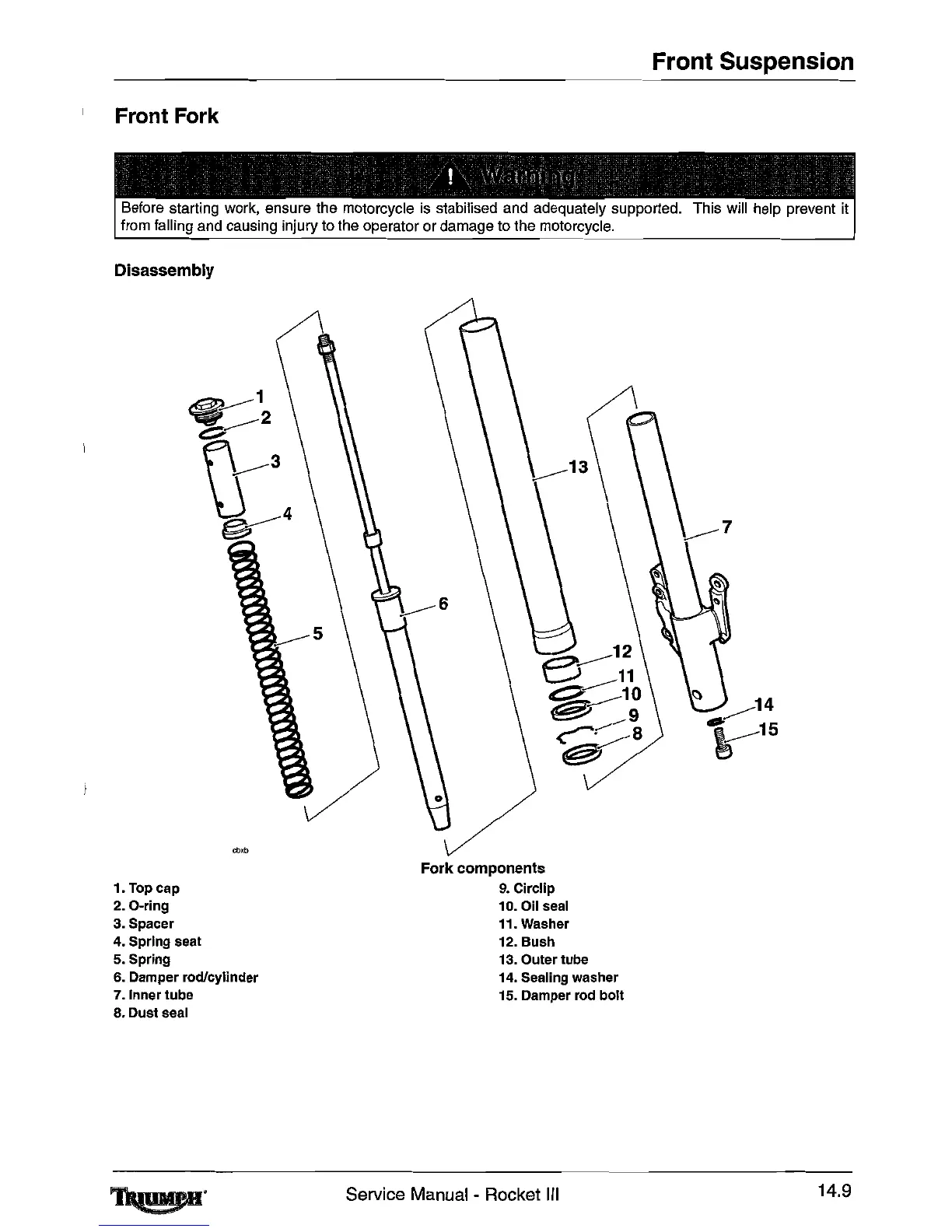

Fork components
9. Circlip
10. Oil seal
11. Washer
12. Bush
13. Outer tube
14. Sealing washer
15. Damper rod bolt
Service Manual - Rocket III
14.9
