120
Maintenance and Adjustment
Headlight Adjustment - Vertical

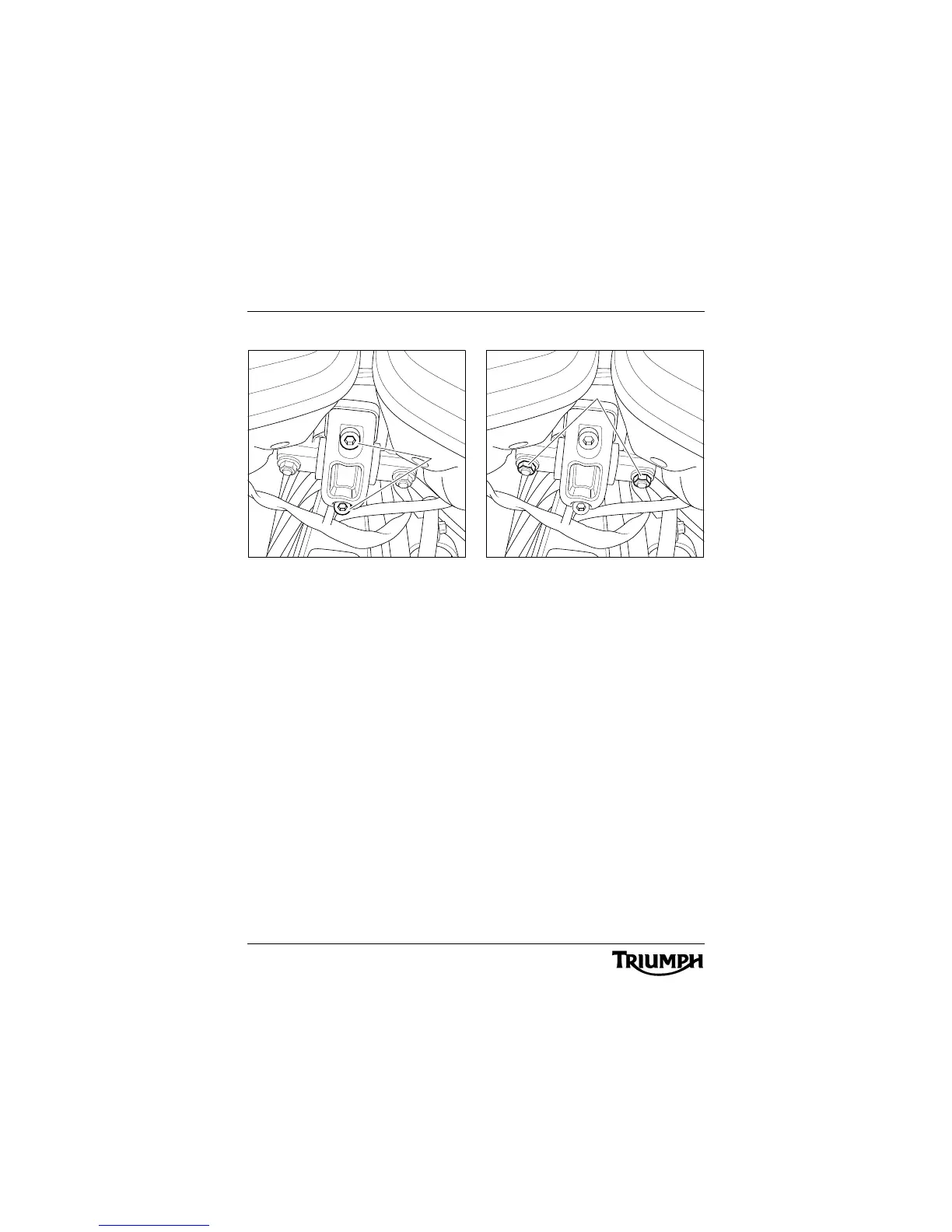

1. Vertical beam adjuster bolts
The vertical beams of the left hand and right
hand headlights can only be adjusted
together. Independent adjustment is not
possible.
Switch the headlight dipped beam on.
Loosen the clamp bolts sufficiently to allow
restricted movement of the headlights.
Adjust the position of the headlights to give
the required beam setting.
Tighten the clamp bolts, front first, to
11 l b f f t ( 15 N m ) .
Re-check the headlight beam settings.
Switch the headlights off when both beam
settings are satisfactorily set.
Headlight Adjustment - Horizontal
1. Headlight mounting nut
The horizontal beams of both headlights can
be adjusted individually. The same procedure
is used to adjust either headlight.
Switch the headlight dipped beam on.
Loosen the headlight mounting nut.
Adjust the horizontal position of the headlight
to give the required beam setting.
Tighten the nut to 22 lbf ft (30 Nm).
Repeat for the second headlight.
Re-check the headlight beam settings.
Switch the headlights off when both beam
settings are satisfactorily set.
1
