Triumph Speed Triple - Fuel Tank; Raising

88
Maintenance and Adjustment
Fuel Tank
Raising

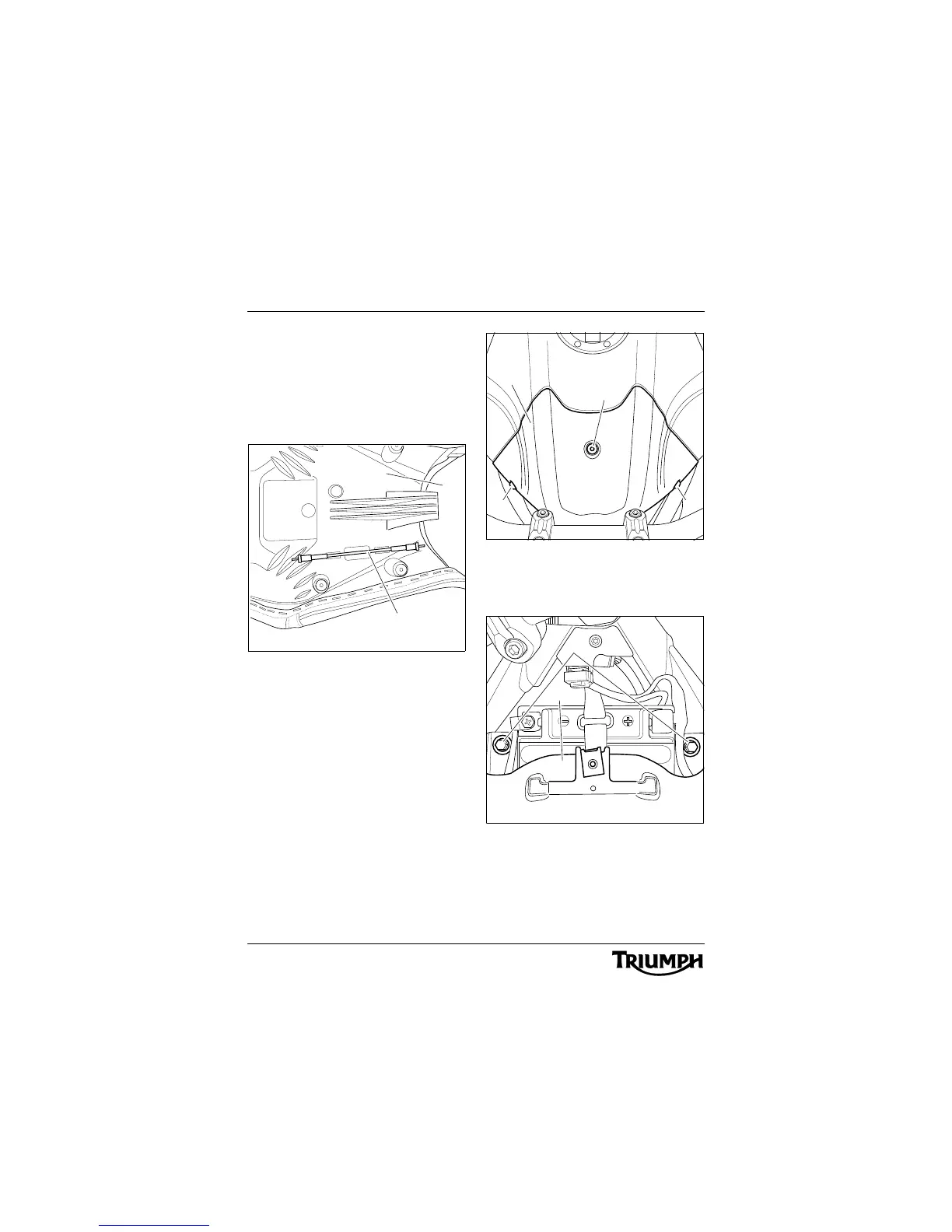

Remove the seat (see page 53) and remove
the fuel tank prop from its location on the
seat base. Store the seat as described on
page 53.
1. S e a t
2. Fuel tank prop
Release the three fasteners and remove the
front panel from the fuel tank.
1. Front panel
2. Fasteners
Remove the front fasteners from the fuel
tank.
1. Fasteners
2. Fuel tank
Pivot the fuel tank upwards at the front.
While holding the fuel tank in the raised
position, locate the fuel tank prop into the
support points on the air box and the fuel
tank.
