FUEL SYSTEM/ENGINE MANAGEMENT 9
7.

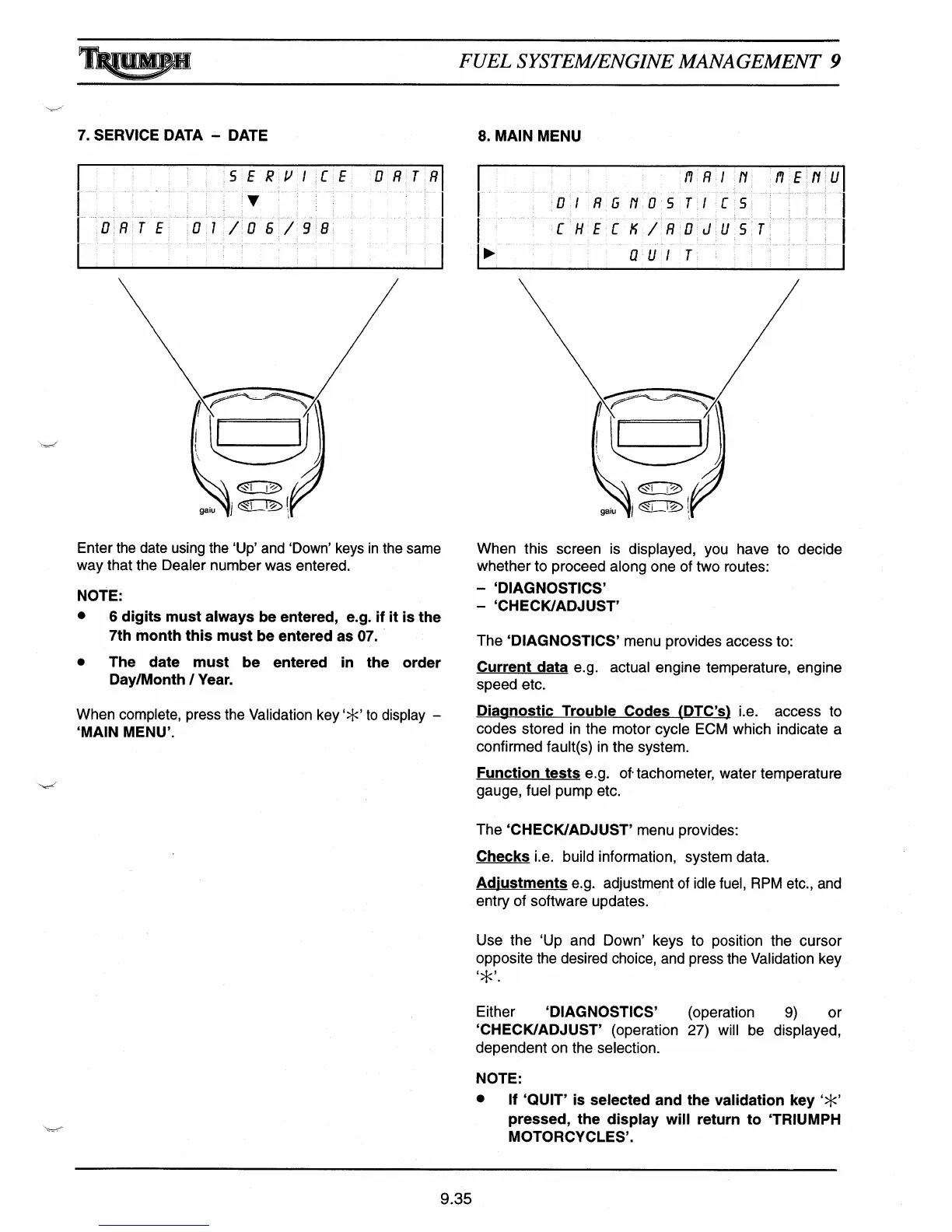

SERVICE DATA - DATE
SERU'! CE
DATA
DATE 01 /05/48
8. MAIN MENU
fiRi n
rr
Fnu
DI ftGn`osrr
CS
.
1
HECK / R D J,U 5 7
I
►
QUIT
I
Enter the date using the 'Up' and `Down' keys in the same
way that the Dealer number was entered.
NOTE:
•
6 digits must always be entered, e.g. if it is the
7th month this must be entered as 07.
•
The date must be entered in the order
Day/Month
/
Year.
When complete, press the Validation key'*' to display -
'MAIN MENU'.
When this screen is displayed, you have to decide
whether to proceed along one of two routes:
-
`DIAGNOSTICS'
- `CHECK/ADJUST'
The
`DIAGNOSTICS'
menu provides access to:
Current data
e.g. actual engine temperature, engine
speed etc.
Diagnostic Trouble Codes (DTC's)
i.
e.
access to
codes stored in the motor cycle ECM which indicate a
confirmed fault(s) in the system.
Function tests
e.g. of tachometer, water temperature
gauge, fuel pump etc.
The
`CHECK/ADJUST'
menu provides:
Checks i.e. build information, system data.
Adjustments
e.g. adjustment of idle fuel, RPM etc., and
entry of software updates.
Use the `Up and Down' keys to position the cursor
opposite the desired choice, and press the Validation key
'
*'
Either
`DIAGNOSTICS'
(operation
9) or
`CHECK/ADJUST' (operation 27) will be displayed,
dependent on the selection.
NOTE:
•
If `QUIT' is selected and the validation key
`
*'
pressed, the display will return to `TRIUMPH
MOTORCYCLES'.
9.35
