Triumph THUNDERBIRD 1950 - Grub Screw; Rotor Sleeve Stop

I
I
I
Twistgrip
I
I 5
I i
I
I
!

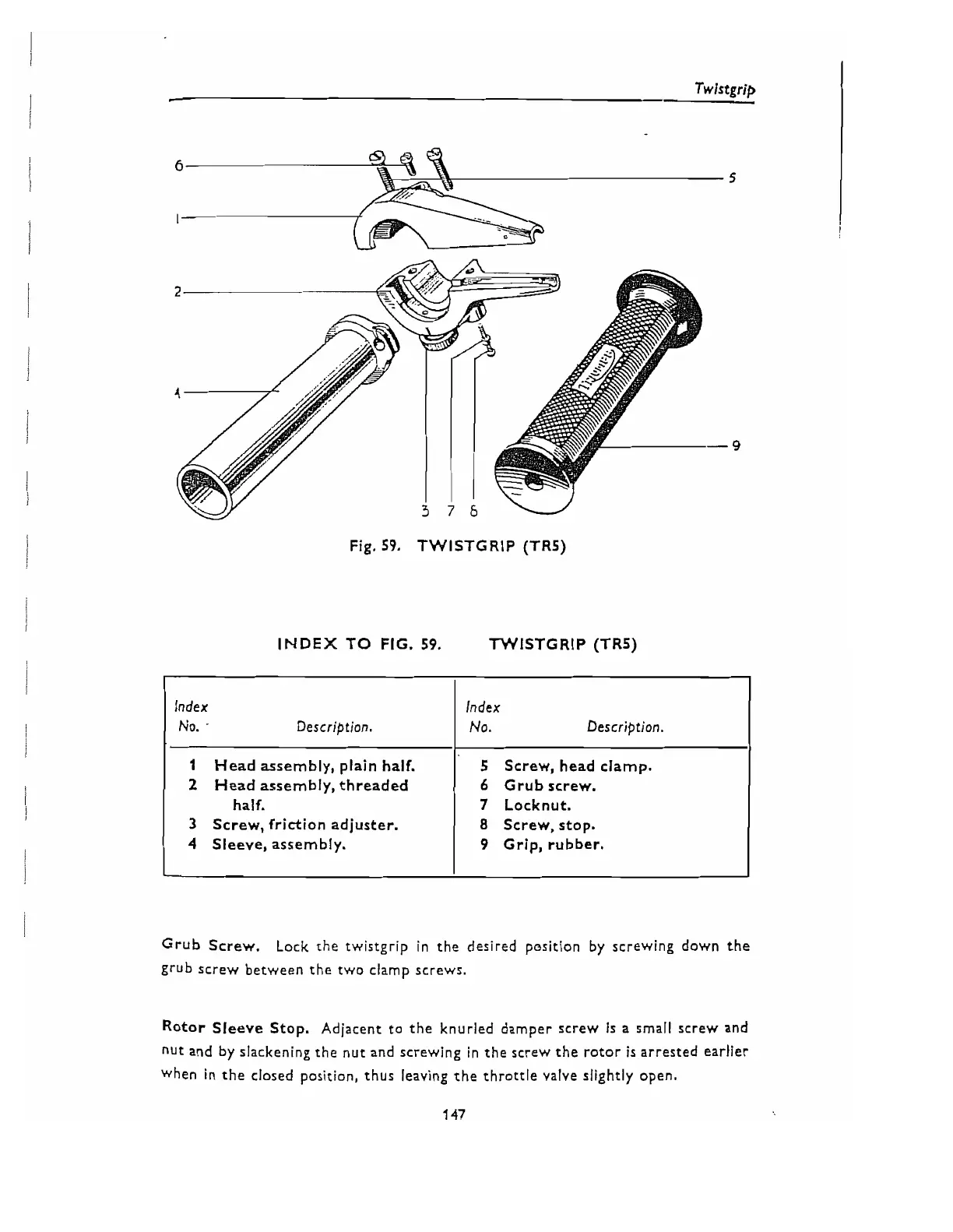

Fig. 59. TWlSTGRlP (TRS)
INDEX
TO FIG. 59.
TWISTGRIP (TRS)
Grub Screw.
Lock the twistgrip in the desired position by screwing down the
grub screw between the two clamp screws.
Index
No. Description.
1 Head assembly, plain half.
2 Head assembly, threaded
half.
3 Screw, friction adjuster.
4 Sleeve, assembly.
Rotor Sleeve Stop. Adjacent to the knurled damper screw Is a small screw and
nut and by slackening the nut and screwing in the screw the rotor
is arrested earlier
when in the closed position, thus leaving the throttle valve slightly open.
index
No. Description.
5 Screw, head clamp.
6 Grub screw.
7 Locknut.
8 Screw, stop.
9 Grip, rubber.
