Chain Maintenance
RIVET EXTRACTOR
The rivet extractor can be used on all motorcyile chains up to
pitch, whether
the chains are on or off the wheels.
When using the extractor:-
1.
Turn screw anti.clockwise to permit the punch end to clear the chain rivet.
2.
Open the jaws by pressing down the lever (See Fig.
37).
3.
Pass jaws over chain and release the lever. Jaws should rest on a chain roller
free of chain link plates (See Fig.
38).
4.
Turn screw clockwise until punch contacts and pushes out rivet and through
chain outer link plate. Unscrew punch, withdraw extractor and repeat
complete operation on the adjacent rivet in the same chain outer link plate.
The outer plate
is
then free and the two rivets can be withdrawn from opposite
sides with the opposite plate in position. Do not use the removed part again.

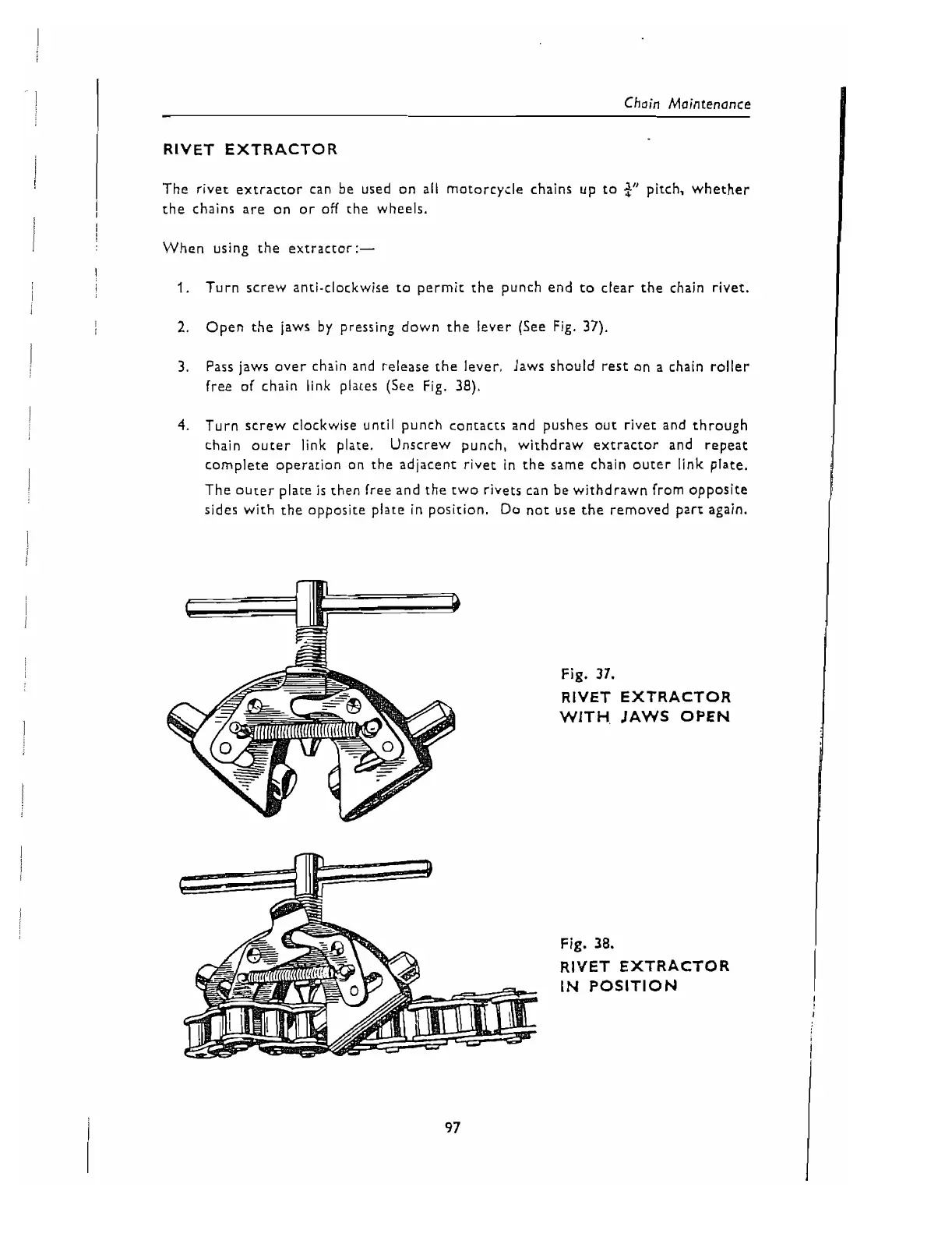

Fig.
37.
RIVET EXTRACTOR
WITH. JAWS OPEN
