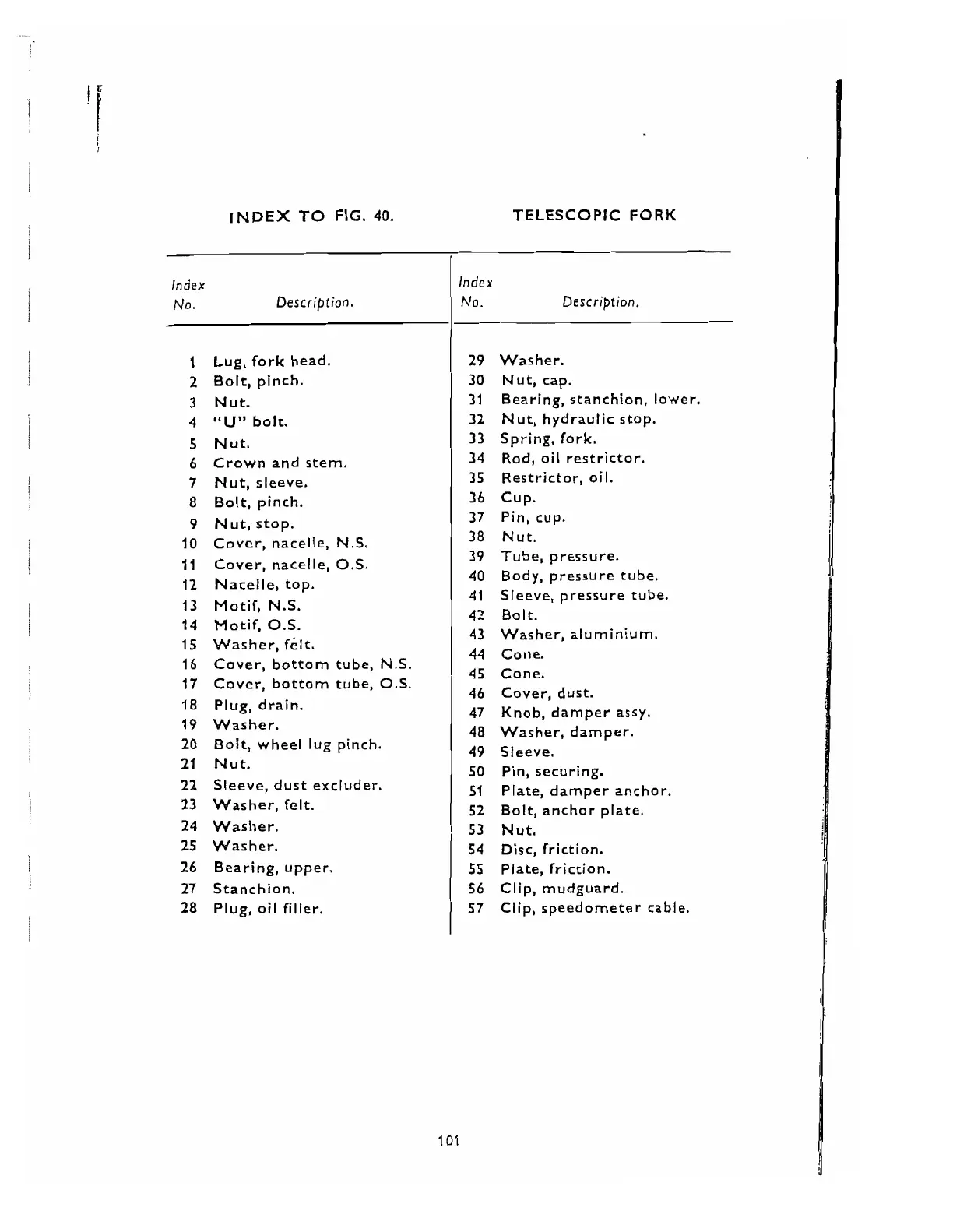

INDEX TO FIG. 40. TELESCOPIC FORK
lndex
No.
Description.
1 Lug, fork head.
2 Bolt, pinch.
3 Nut.
4
"U"
bolt.
5 Nut.
6
Crown and stem.
7 Nut, sleeve.
8 Bolt, pinch.
9 Nut, stop.
10 Cover, nacelle, N.S.
11 Cover, nacelle, O.S.
12 Nacelle, top.
13 Motif, N.S.
14 Motif, O.S.
15 Washer, felt.
16 Cover, bottom tube, N.S.
17 Cover, bottom tube, O.S.
18
Plug, drain.
19 Washer.
20 Bolt, wheel lug pinch.
21 Nut.
22 Sleeve, dust excluder.
23 Washer, felt.
24 Washer.
25 Washer.
26 Bearing, upper.
27 Stanchion.
28 Plug, oil filler.
Index
h'o.
Description.
29 Washer.
30 Nut, cap.
31 Bearing, stanchion, lower.
32 Nut, hydraulic stop.
33 Spring, fork.
34 Rod, oil restrictor.
35 Restrictor, oil.
36 Cup.
37 Pin, cup.
38 Nut.
39
Tube, pressure.
40 Body, pressure tube.
41 Sleeve, pressure tube.
42 Bolt.
43 Washer, aluminium.
44 Cone.
45 Cone.
46 Cover, dust.
47
Knob, damper assy.
48 Washer. damper.
49 Sleeve.
50 Pin, securing.
51 Plate, damper anchor.
52 Bolt, anchor plate.
53 Nut.
54 Disc, friction.
55 Plate, friction.
56 Clip, mudguard.
57 Clip, speedometer cable.
