Dismantling Spring Wheel
I
-
plunger Guide Box Assembly. Withdraw the assembly from the'hub.
I
i
Brake Drum and Sprocket.
Bend back the four locking tabs and remove the
i
eight nuts securing the brake drum to the hub. Remove the brake drum and
sprocket and, using a suitably shaped piece of hard wood, drift out the brake drum
side bearing.
!
End Plate Bearing.
Tap out this bearing using
a suitable soft drift.
Removal
can be facilitated by heating the back plate to approximately
100' C.
DISMANTLING THE ANCHOR PLATE ASSEMBLY
I
1
Brake Shoes.
Remove the two springs and lift the brake shoes away.
I
Brake Cam.
Remove the brake lever arm retaining nut and drift the cam spindle
I
out, when the lever arm and spring will also be released.
i

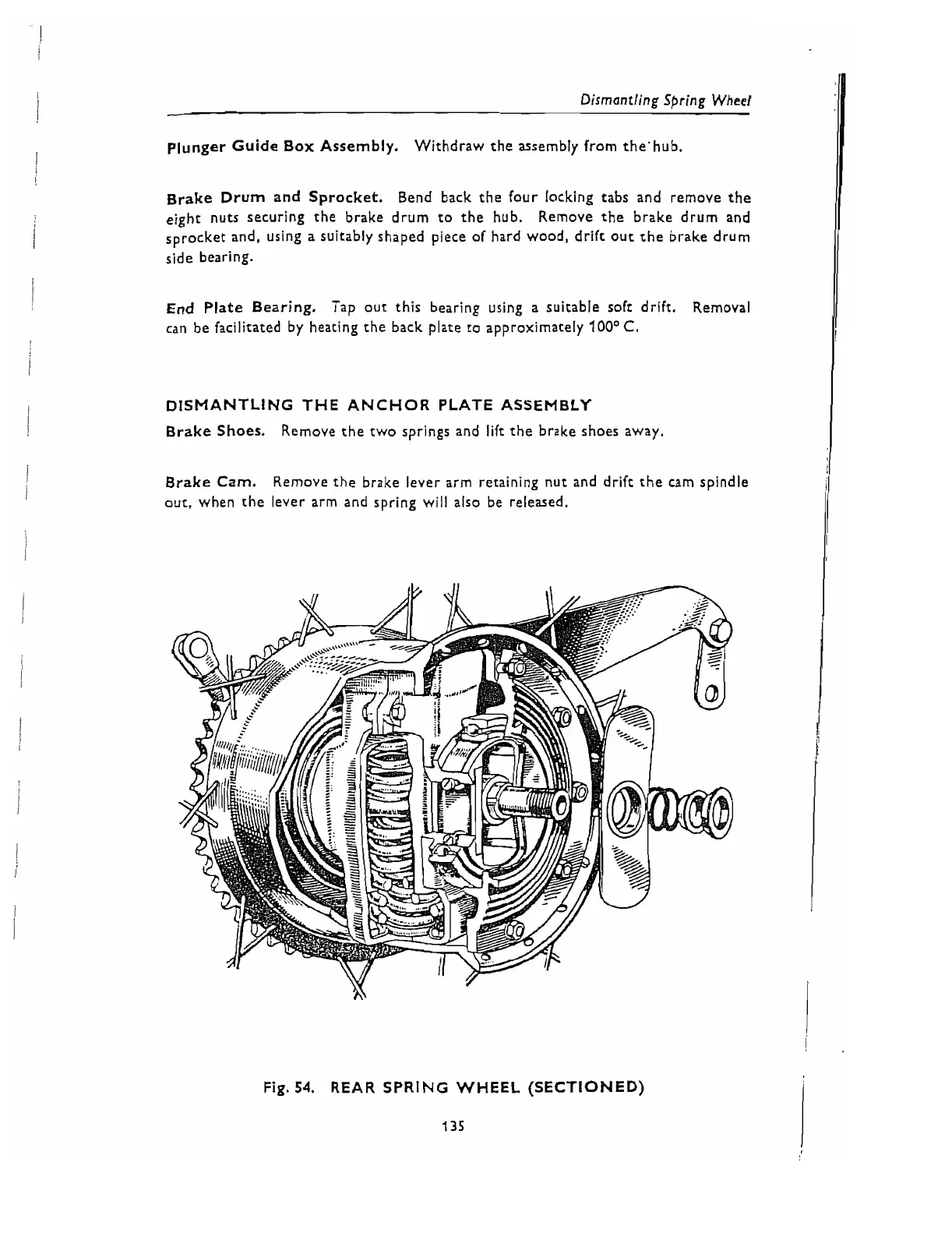

Fig. 54. REAR SPRING WHEEL (SECTIONED)
