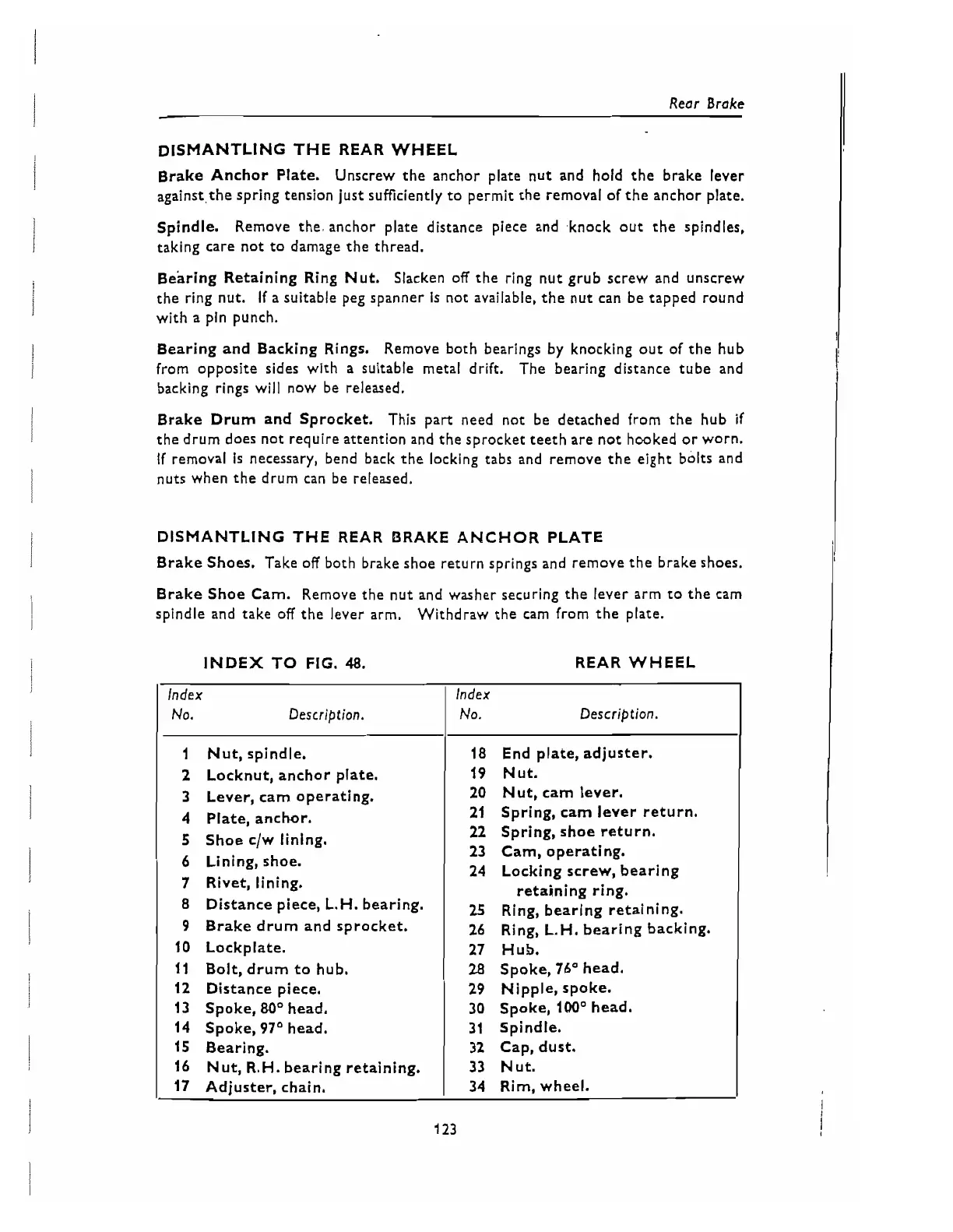

DISMANTLING THE REAR WHEEL
Brake Anchor Plate. Unscrew the anchor plate nut and hold the brake iever
against the spring tension just sufficiently to permit the removal of the anchor plate.
Spindle.
Remove the anchor plate distance piece and knock out the spindles,
taking care not to damage the thread.
Bearing Retaining Ring Nut. Slacken off the ring nut grub screw and unscrew
the ring nut. If a suitabie peg spanner
is
not available, the nut can be tapped round
with a pin punch.
Bearing and Backing Rings. Remove both bearings by knocking out of the hub
from opposite sides with a suitabie metal drift. The bearing distance tube and
backing rings will now be released.
Brake Drum and Sprocket. This part need not be detached from the hub if
the drum does not require attention and the sprocket teeth are not
hwked or worn.
If removal
is
necessary, bend back the locking tabs and remove the eight bolts and
nuts when the drum can be released.
DISMANTLING THE REAR BRAKE ANCHOR PLATE
Brake Shoes. Take off both brake shoe return springs and remove the brake shoes.
Brake Shoe Cam. Remove the nut and washer securing the iever arm to the cam
spindle and take off the lever arm.
Withdraw the cam from the plate.
INDEX
TO
FIG.
48.
REAR WHEEL
Index
No. Description.
1
Nut, spindle.
2
Locknut, anchor plate.
3
Lever, cam operating.
4
Plate, anchor.
5
Shoe c/w lining.
6
Lining, shoe.
7
Rivet, lining.
8
Distance piece, L.H. bearing.
9
Brake drum and sprocket.
10
Lockplate.
11
Bolt, drum to hub.
12
Distance piece.
13
Spoke,
80'
head.
14
Spoke,
97'
head.
15
Bearing.
16
Nut, R.H. bearing retaining.
17
Adjuster, chain.
Index
No. Description.
18
End plate, adjuster.
19
Nut.
20
Nut, cam lever.
21
Spring, cam lever return.
22
Spring, shoe return.
23
Cam, operating.
24
Locking screw, bearing
retaining ring.
25
Ring, bearing retaining.
26
Ring,
L.H.
bearing backing.
27
Hub.
28
Spoke,
76O
head.
29
Nipple, spoke.
30
Spoke,
1M0
head.
31
Spindle.
32
Cap, dust.
33
Nut.
34
Rim, wheel.
