Crankcase Assembly
(3T
De
Luxe)
a
I-
32
33
34
35
36
37
38
39

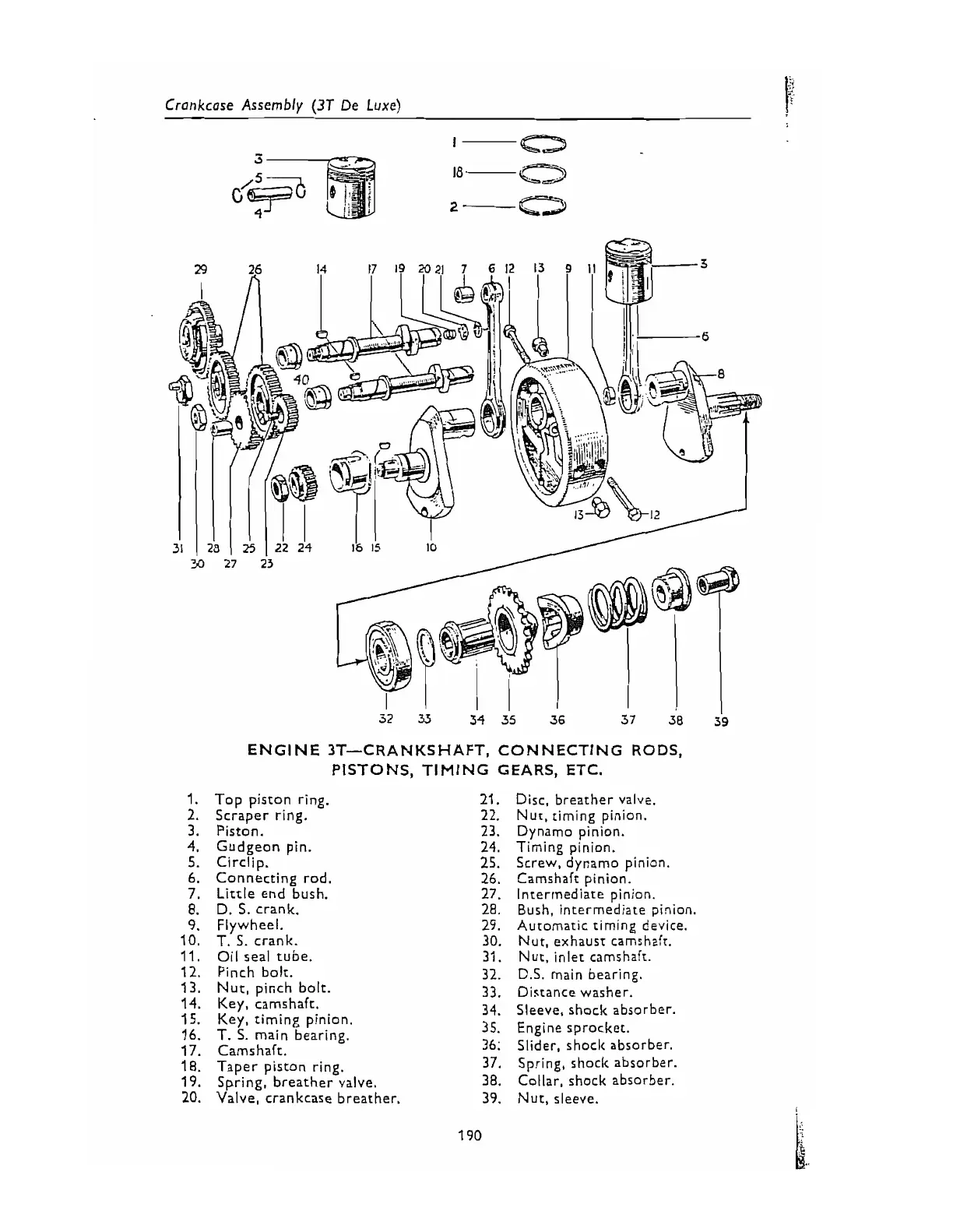

ENGINE 3T-CRANKSHAFT, CONNECTING RODS,
PISTONS, TIMING GEARS, ETC.
1. Top piston ring.
21.
Disc. breather valve.
2. Scraper ring. 22. Nut, timing pinion.
3. Piston. 23. Dynamo pinion.
4.
Gudgeon pin. 24. Timing pinion.
5.
Circlip. 25. Screw. dynamo pinion.
6.
Connecting rod. 26. Camshaft pinion.
7. Little end bush. 27. lnterrnediate pinion.
8.
D.
S. crank. 28. Bush. intermediate pinion.
9.
Flywheel. 29. Automatic timing device.
10. T. S. crank. 30. Nut, exhaust camshaft.
11. Oil seal tube. 31. Nut. inlet camshaft.
12. Pinch bolt. 32. D.S. main bearing.
13. Nut, pinch bolt. 33. Distance washer.
14.
Key. camshaft. 34. Sleeve. shock absorber.
15. Key. timing pinion. 35. Engine sprocket.
16. T. S. main bearing.
17. Camshaft.
36: Slider, shock absorber.
18. Taper piston ring.
37. Spring. shoclc absorber.
19. Spring, breather valve. 38. Collar, shock absorber.
20. Valve, crankcase breather. 39. Nut, sleeve.
