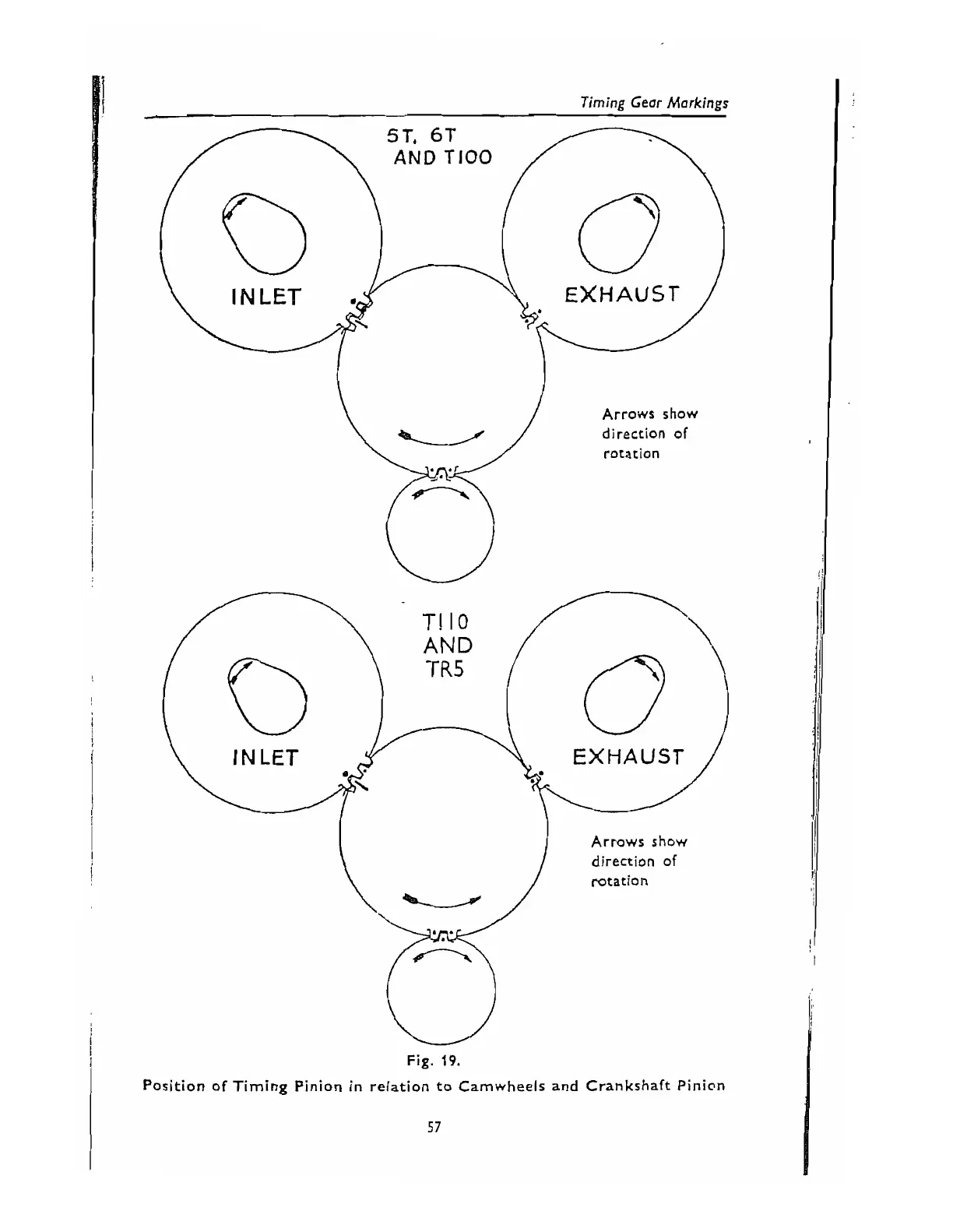

Timing Gear Markings
Arrows show
Fig.
19.
Position of Timing Pinion in relation to Camwheels and crankshaft Pinion
57
