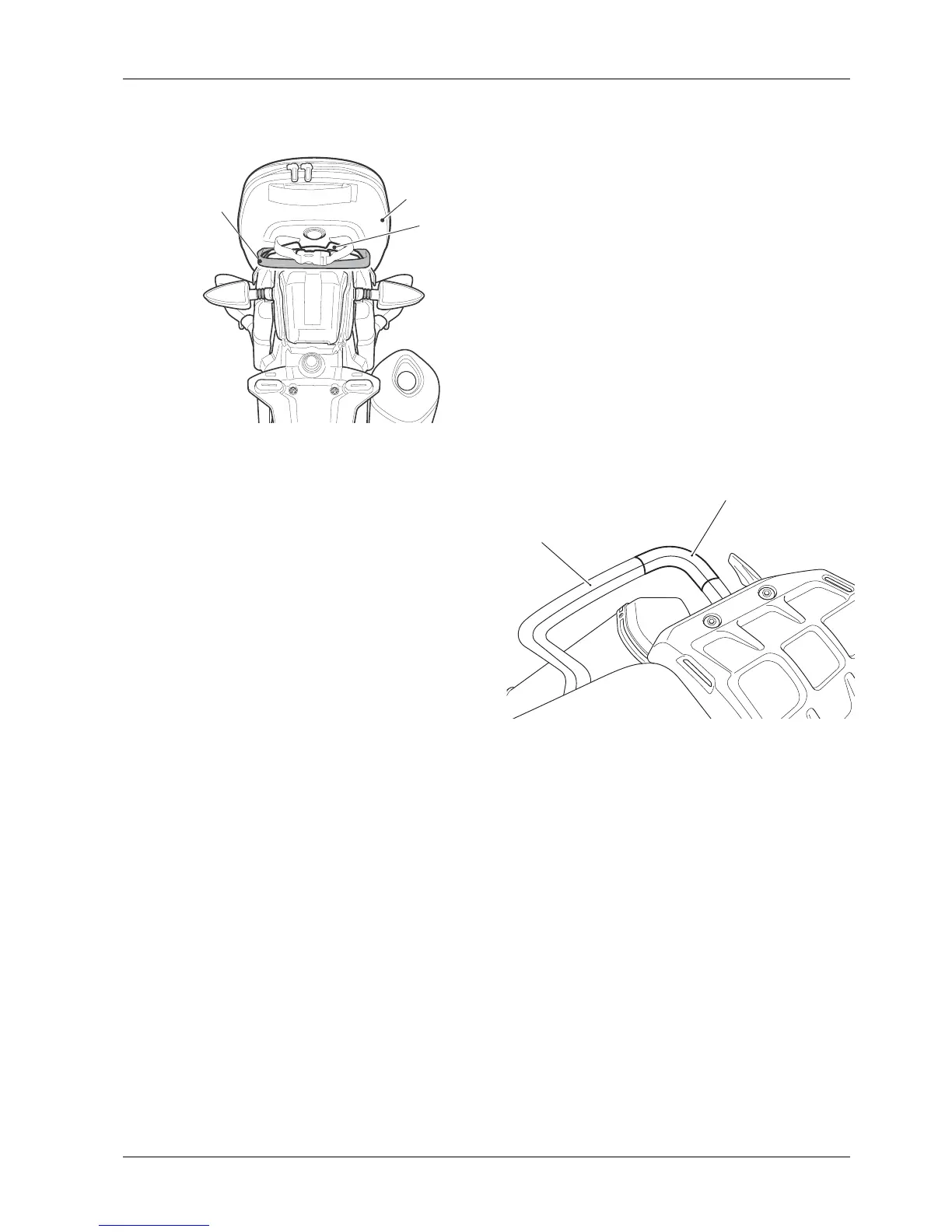

4. Slide the loop strap on the bottom of the tail pack
under the rear rack, as shown below.
1. Tail pack (10 litre shown)
2. Loop strap
3. Rear rack
5. Clip the straps to the tail pack and tension.
6. Securely tie any excess strap back around itself.
Tiger XR, Tiger XRT, Tiger XRX, Tiger XC,
Tiger XC
A, Tiger XCX,
Tiger 800, Tiger 800 XC, Tiger 800 XC
X,
Tiger 800 XC
A, Tiger 800 XR, Tiger 800 XRX,
Tiger 800 XR
X LRH, Tiger 800 XRT
50 Litre Tail Pack:
Note:
• The kit may include self-adhesive protective film
(item 9). Where applicable, follow steps 1 to 8
below. If self-adhesive protective film is not
included in the kit, go to step 9.
• Read the warning notices printed on the cleaning
wipe packet in the fitting kit.
1. Using the cleaning wipe provided, clean the grab
handles in the area shown below, on both the left
and right hand sides.
1. Grab handle (right hand shown)
2. Cleaning area
2. Take one of the self-adhesive protective films from
the kit and peel off the clear coloured upper cover.
3. Peel the white coloured backing paper away for
approximately 15 mm from the top edge of the
protective film.
