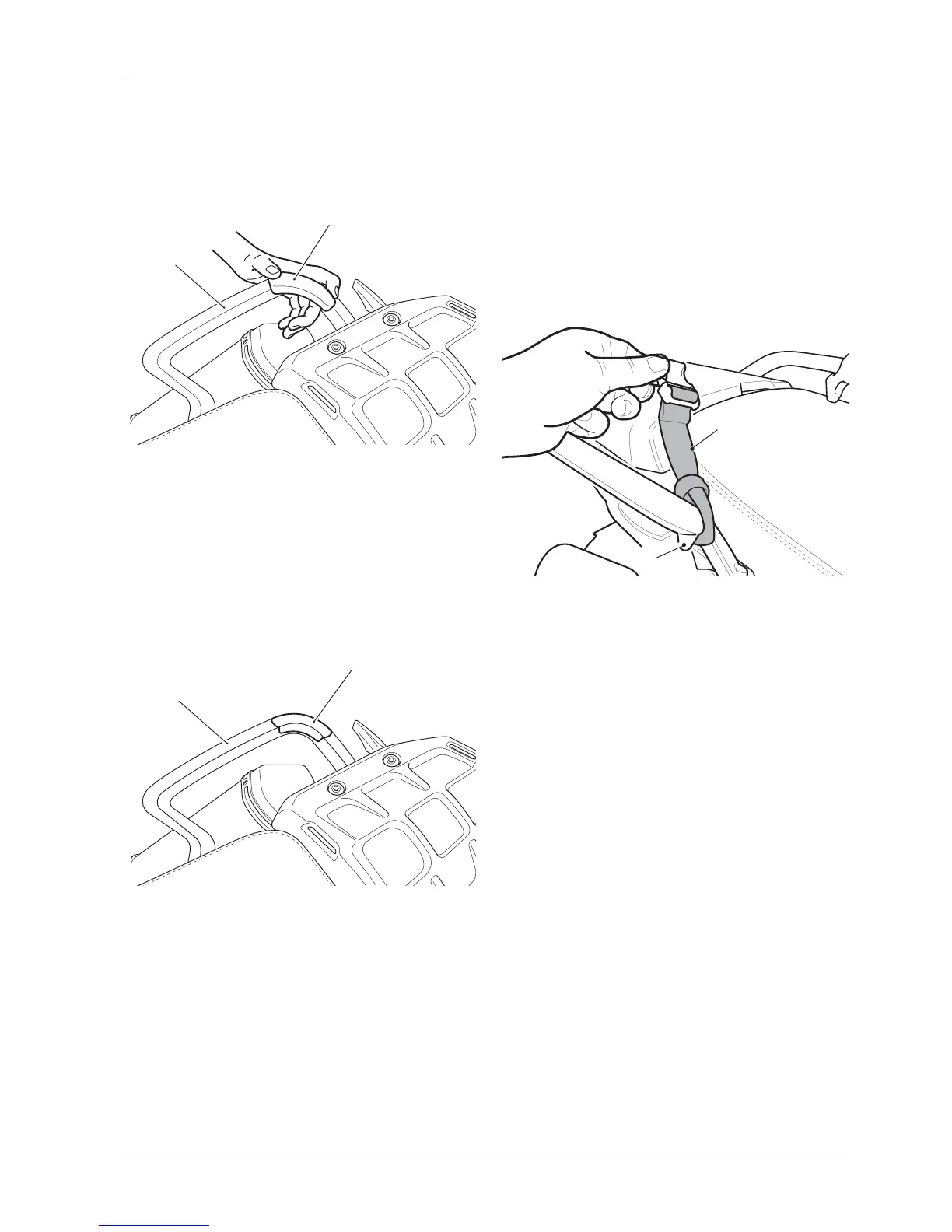

4. Locate the self-adhesive protective film against the
right hand grab handle, aligning the top edge of the
protective film with the contour of the grab handle,
as shown.
1. Grab handle (right hand shown)
2. Self-adhesive protective film
5. When aligned correctly, carefully press the exposed
area of film onto the right hand grab handle.
6. Gradually peel away the backing paper from the
protective film, pressing the areas of exposed film to
the contours of the right hand grab handle until the
protective film is fully applied, as shown.
1. Grab handle (right hand shown)
2. Self-adhesive protective film
7. Use a soft, lint free cloth to press the protective film
firmly on to the right hand grab handle, removing
possible air pockets where necessary.
8. Repeat steps 2 to 7 for the left hand grab handle.
9. Wrap the short male mounting strap around the left
hand grab rail, to the inside of the front lug, so that
the tensioning strap is uppermost.
10. Wrap the short female mounting strap around the
right hand grab rail, to the inside of the front lug, so
the tensioning strap is uppermost.
1. Short female mounting strap
2. Grab handle lug (right hand shown)
Note:
Ensure the underside of the tail pack is clean and
dry prior to fitting.
11. Position the tail pack to the rear rack, with the logo to
the rear.
Note:
On the 50 litre tail pack, the long loop strap is not
used when the tail pack is fitted to the rear rack.
Ensure the long loop strap is positioned between
the tail pack and the rear rack.
4
4
1
2
T0863
