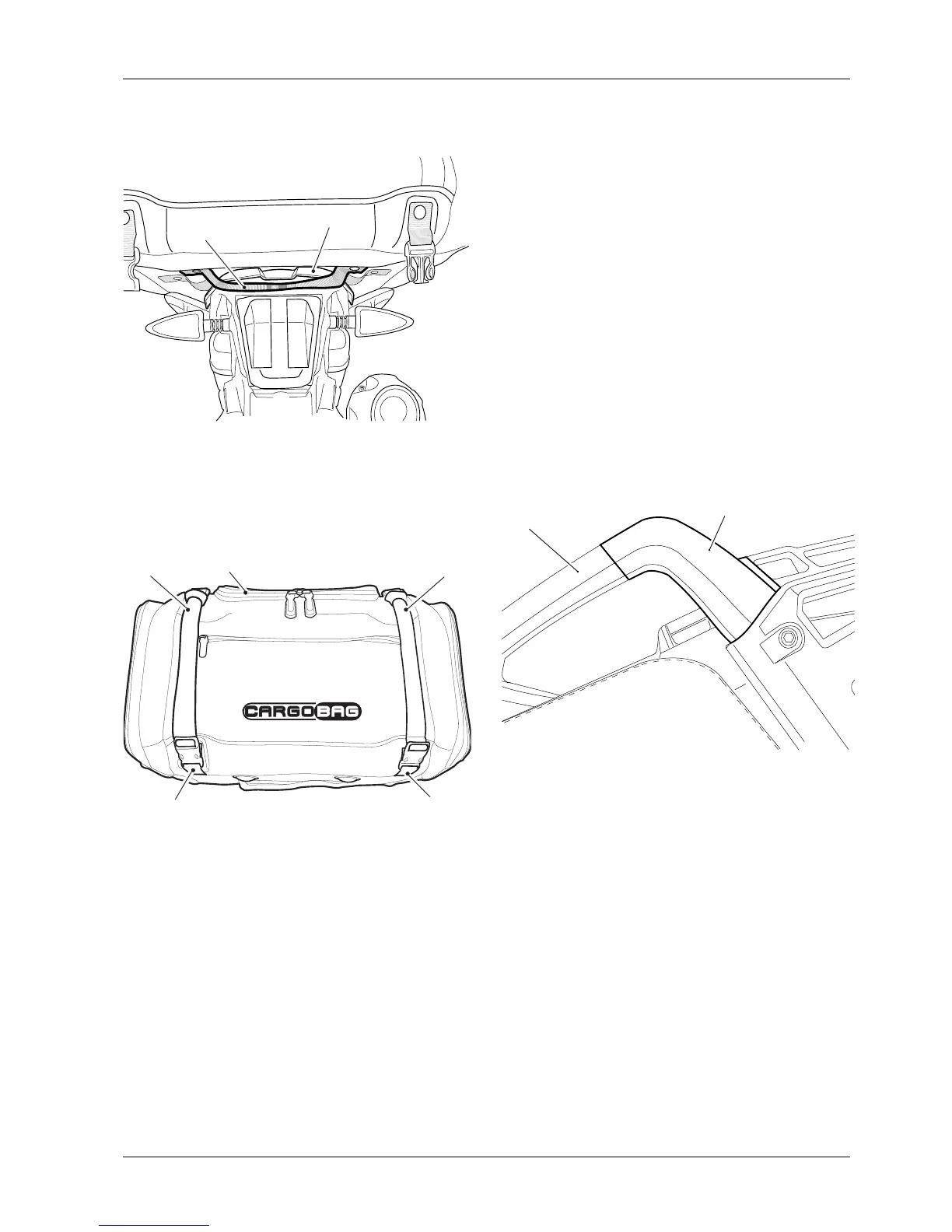

12. Slide the short loop strap on the bottom of the tail
pack under the rear rack, as shown below.
1. Loop strap (short)
2. Rear rack
13. On the side of the tail pack with the logo, and using
the two long straps supplied, wrap the strap through
the D-loop on the bag and connect to the buckle on
the bag, as shown below.
1. 50 litre tail pack
2. Long male strap
3. Long female strap
4. Buckles
14. Clip the straps to the tail pack and tension.
15. Securely tie any excess strap back around itself.
Tiger Explorer, Tiger Explorer XC
Explorer XR, Explorer XRx, Explorer XR
T,
Explorer XC, Explorer XCx, Explorer XC
A,
Tiger 1200 XCX, Tiger 1200 XCA,
Tiger 1200 XR, Tiger 1200 XR
X,
Tiger1200 XR
X LRH, Tiger 1200 XRT
50 Litre Tail Pack:
Note:
The kit may include self-adhesive protective film
(items 7 and 8). Where applicable, follow steps 1
to 8 below. If self-adhesive protective film is not
included in the kit, go to step 9.
Read the warning notices printed on the cleaning
wipe packet in the fitting kit.
1. Using the cleaning wipe provided, clean the grab
handle in the area shown below, on both the left and
right hand sides.
1. Grab handle
2. Cleaning area
2. Take the right hand self-adhesive protective film from
the kit and peel off the clear coloured upper cover.
3. Peel the backing paper away for approximately
15 mm from the bottom, stepped edge, of the
protective film.
1
2
T0882
4
2
1
3
4
2
1
