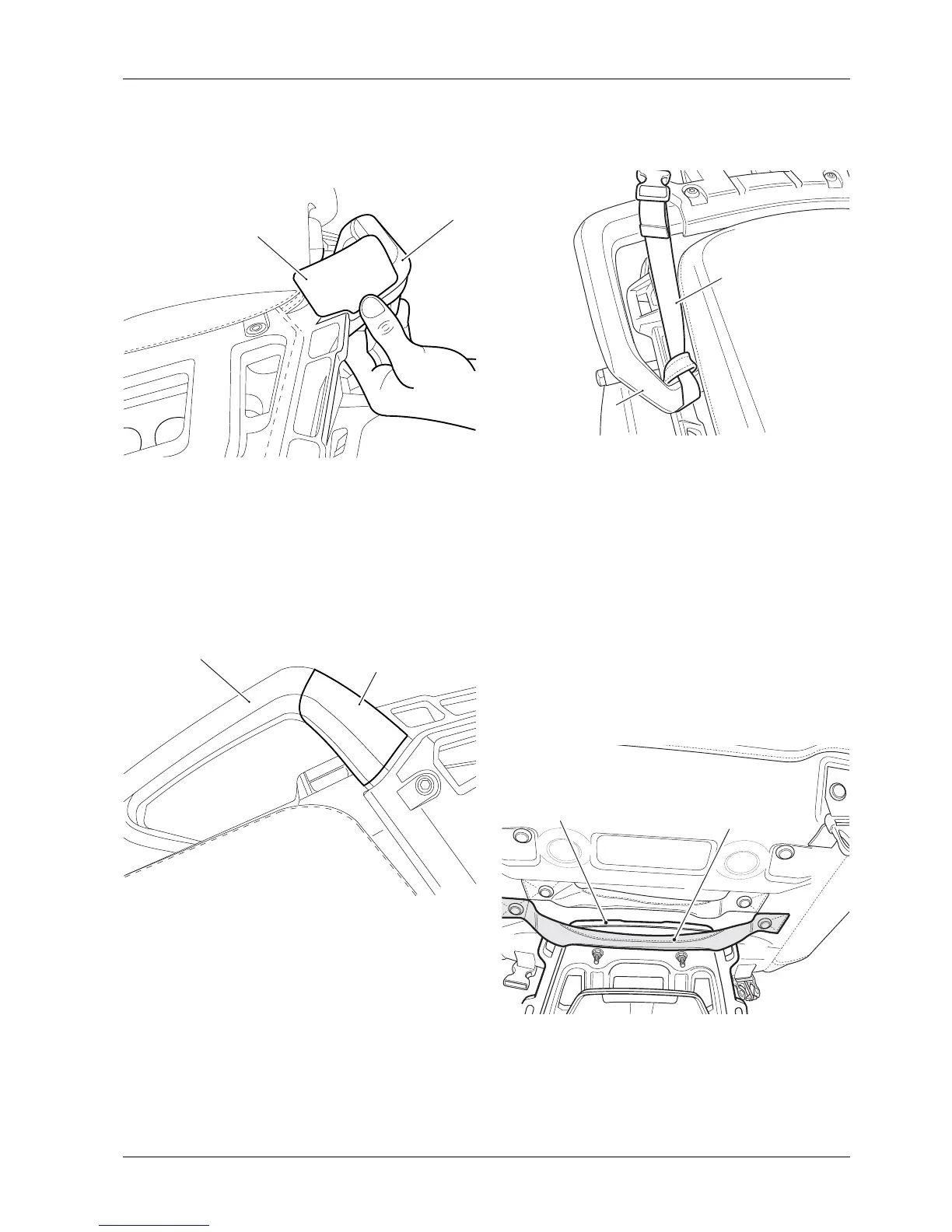

4. Locate the self-adhesive protective film against the
right hand grab handle, aligning the step in the
protective film with the contour of the grab handle,
as shown.
1. Self-adhesive protective film (right hand shown)
2. Grab handle (right hand shown)
5. When aligned correctly, carefully press the exposed
area of film onto the grab handle.
6. Gradually peel away the backing paper from the
protective film, pressing the areas of exposed film to
the contours of the grab handle until the protective
film is fully applied, as shown.
1. Grab handle
2. Self-adhesive protective film
7. Use a soft, lint free cloth to press the protective film
firmly on to the grab handle, removing possible air
pockets where necessary.
8. Repeat steps 2 to 7 for the left hand grab handle.
9. Wrap the long male mounting strap around the
left hand grab handle, to the inside of the front lug,
so that the tensioning strap is uppermost.
10. Wrap the long female mounting strap around the
right hand grab handle, to the inside of the front lug,
so the tensioning strap is uppermost.
1. Long female mounting strap
2. Grab handle (right hand shown)
Note:
• Ensure the underside of the tail pack is clean and
dry prior to fitting.
11. Position the tail pack to the rear rack, with the logo to
the rear.
Note:
• On the 50 litre tail pack, the short loop strap is not
used when the tail pack is fitted to the rear rack.
Ensure the short loop strap is positioned between
the tail pack and the rear rack.
12. Slide the long loop strap fully under the rear rack, as
shown below.
1. Loop strap (long)
2. Rear rack
13. Clip the straps to the tail pack and tension.
14. Securely tie any excess strap back around itself.
