8 of 10
Fitment to the Pillion Seat
Tiger 800, Tiger 800XC
10 Litre and 50 Litre Tail Packs:
Tiger XR, Tiger XRT, Tiger XRX, Tiger XC,
Tiger XC
A, Tiger XCX, Tiger 800 XCX,
Tiger 800 XC
A, Tiger 800 XR, Tiger 800 XRX,
Tiger 800 XR
X LRH, Tiger 800 XRT
50 Litre Tail Pack:

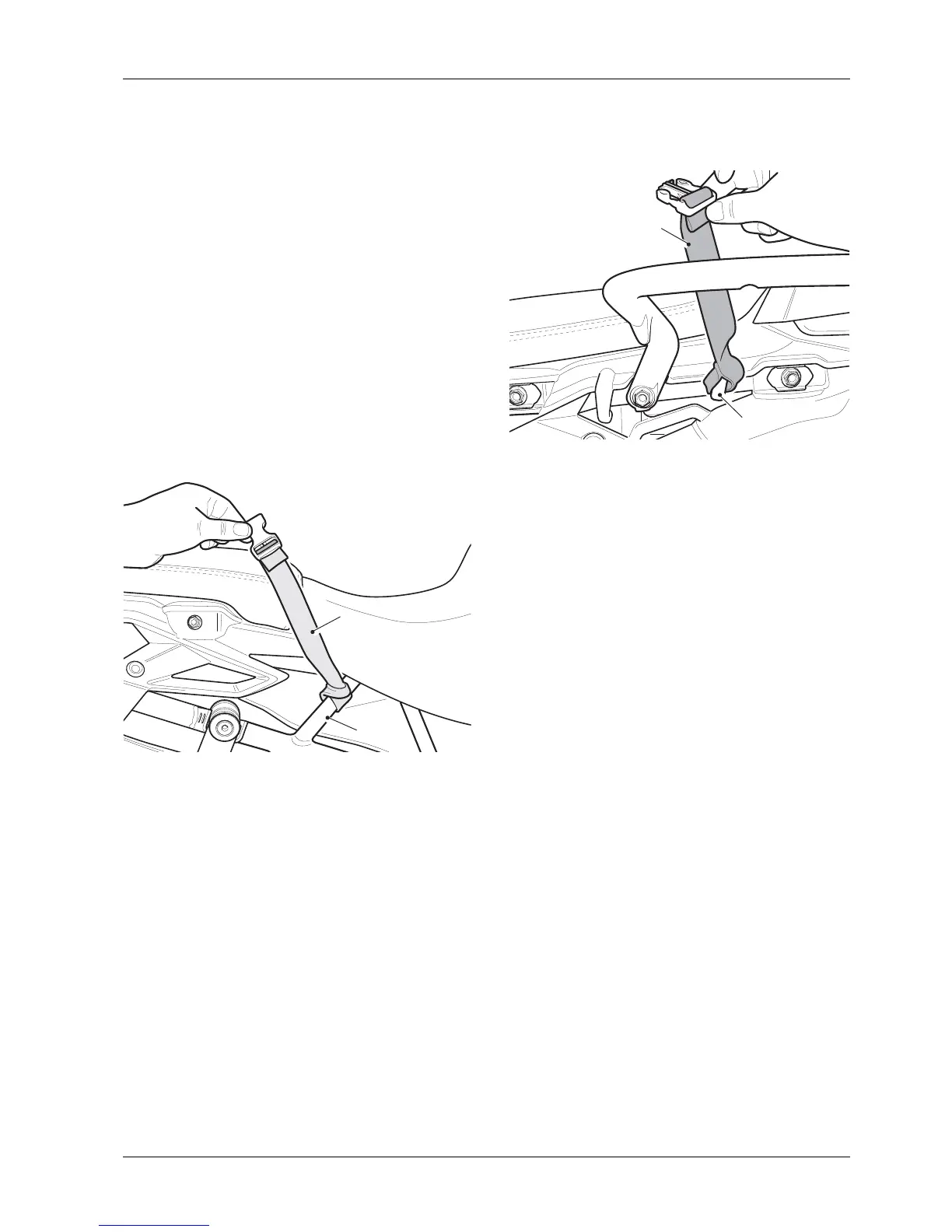

1. Wrap the long male mounting strap around the
left hand side of frame, so the tensioning strap is
uppermost.
2. Wrap the long female mounting strap around the
right hand side of frame, so the tensioning strap is
uppermost.
1. Long female mounting strap
2. Frame (right hand side)
3. Wrap the short female mounting strap around the
lashing hook on the right hand rear side panel, so
the tensioning strap is uppermost.
4. Wrap the short male mounting strap around the
lashing hook on the left hand rear side panel, so the
tensioning strap is uppermost.
1. Short male mounting strap
2. Lashing hook (left hand shown)
Note:
• Ensure the underside of the tail pack is clean and
dry prior to fitting.
5. If necessary, uncouple the tail pack straps from each
other.
6. Position the tail pack on the pillion seat, with the logo
to the rear.
7. Attach the straps to the tail pack and tension.
8. Securely tie any excess strap back around itself.
