50 Litre Tail Pack:

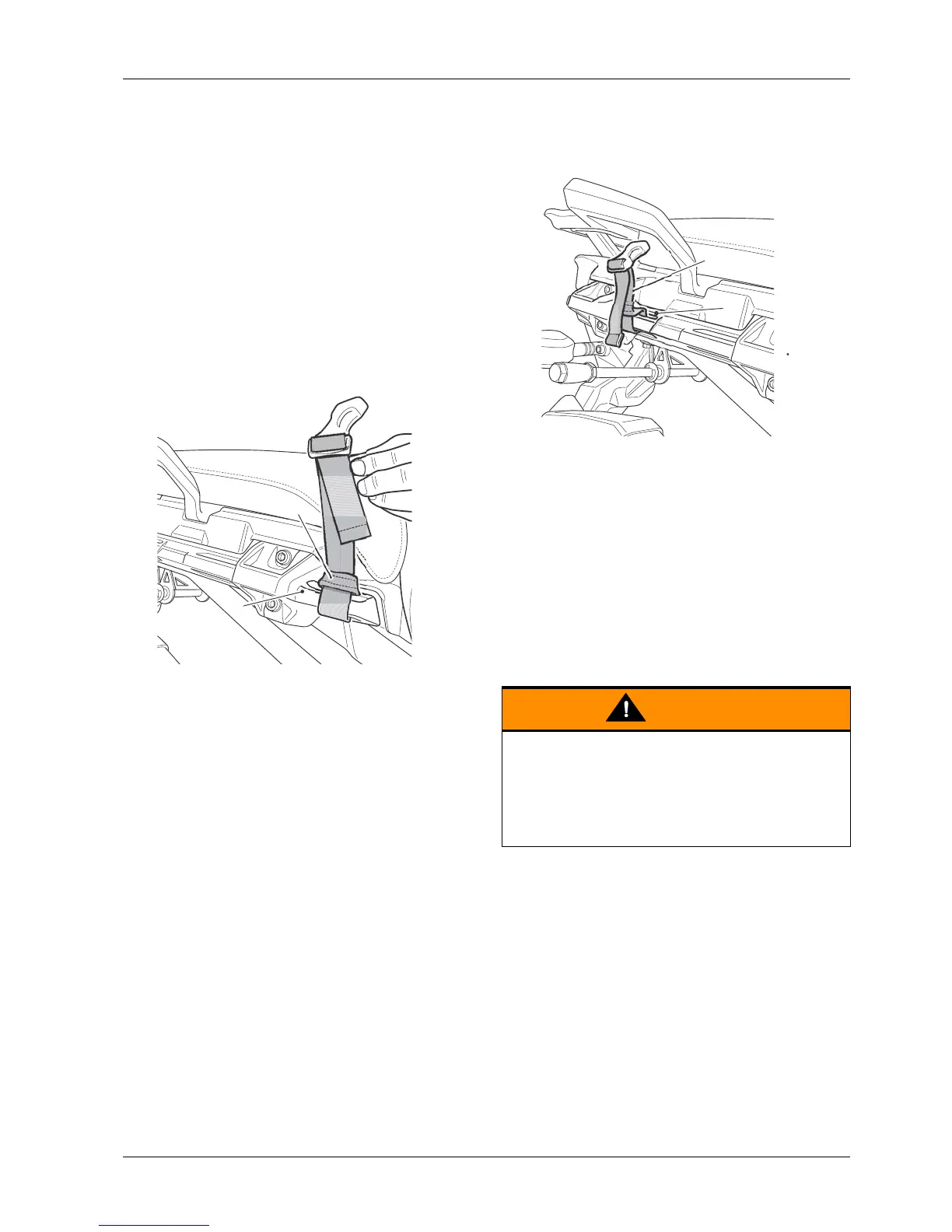

1. Wrap the long male mounting strap through the
front eyelet of the left hand side pannier mounting,
so the tensioning strap is uppermost.
2. Wrap the long female mounting strap through the
lashing eyelet of the right hand side pannier
mounting, so the tensioning strap is uppermost.
1. Long female mounting strap
2. Lashing eyelet (right hand shown)
3. Wrap the short male mounting strap through the
eyelet of the left hand side pannier mounting, as
shown below, so the tensioning strap is uppermost.
4. Wrap the short female mounting strap through the
eyelet of the right hand side pannier mounting, as
shown below, so the tensioning strap is uppermost.
1. Short female mounting strap
2. Lashing eyelet (right hand shown)
Note:
• Ensure the underside of the tail pack is clean and
dry prior to fitting.
5. Position the tail pack on the pillion seat, with the logo
to the rear.
6. Attach the straps to the tail pack and tension.
7. Securely tie any excess strap back around itself.
All Models
Ensure the tail pack or its mounting straps do not
interfere with the correct operation of the sliding
carriage (if fitted).
Riding the motorcycle with the sliding carriage operation
restricted may cause the motorcycle to become unstable
leading to loss of control and an accident.
