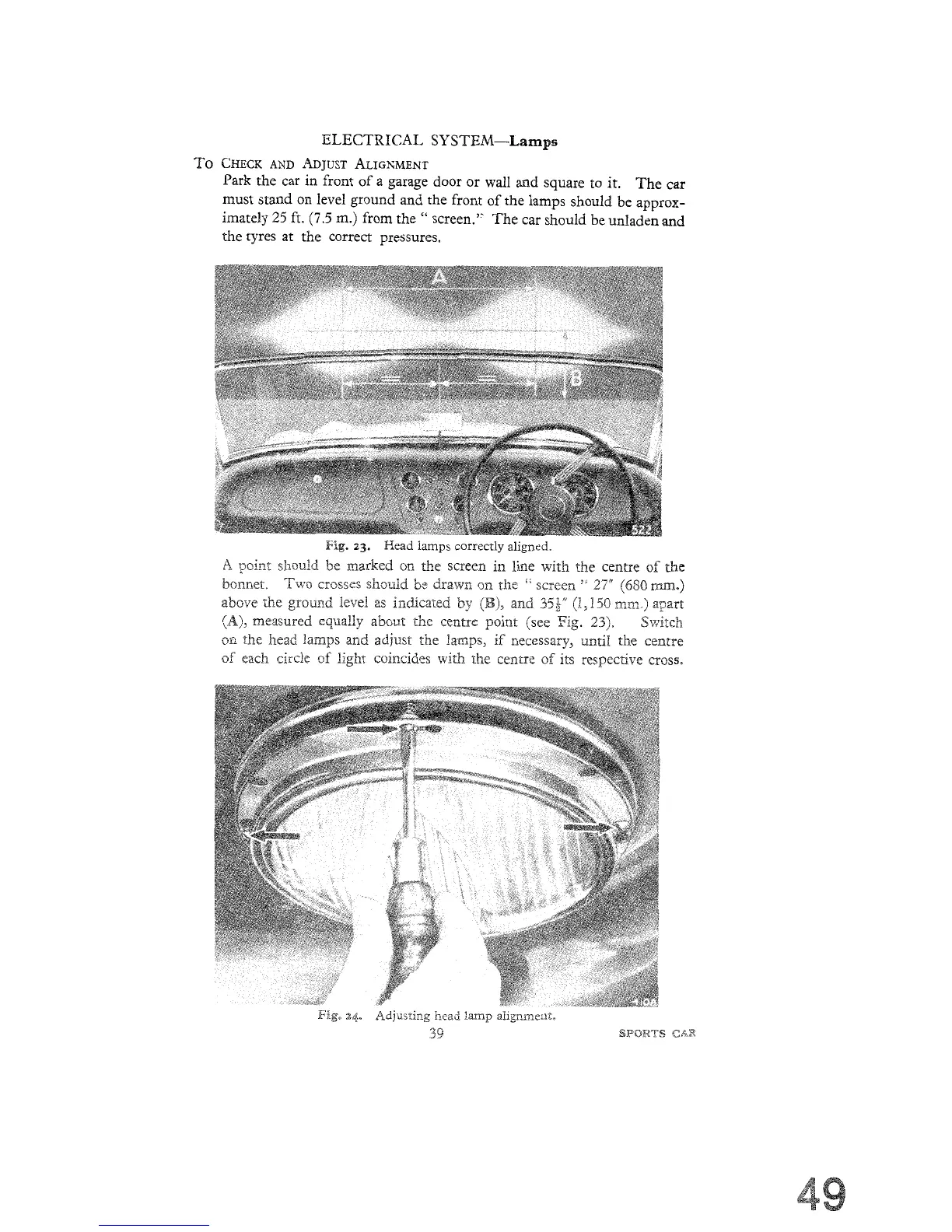

ELECTRICAL
SYSTEM-Lamp
To
CHECK
AND
ADJUST
ALIGNMENT
Park the car in front of a garage door or
wall
and square to
it.
The car
must stand on level ground and the front of the lamps should be
approx-
irnztely
25
ft.
(7.5
m.) from the
"
screen." The car should
be
unladen and
the tyres at the correct pressures.
A
paint
should
be marked on the screen in fine
with
the centre
of
he
bomet,
Two
crosses should
be
drawn
on
the
"
xsrcn
"
27"
(680
warn.)
above the ground level as indicated
by
(B),
and
35i"
(1,150 mm.)
apart
(A),
measured equally about the centre
point
(see
Fig.
231,
Switch
oil
ehc
head lamps and adjust the lamps,
if
necessary,
until
the centre
of each
circle of light coificides
with
the
cenxre
of
its
respective cross.
