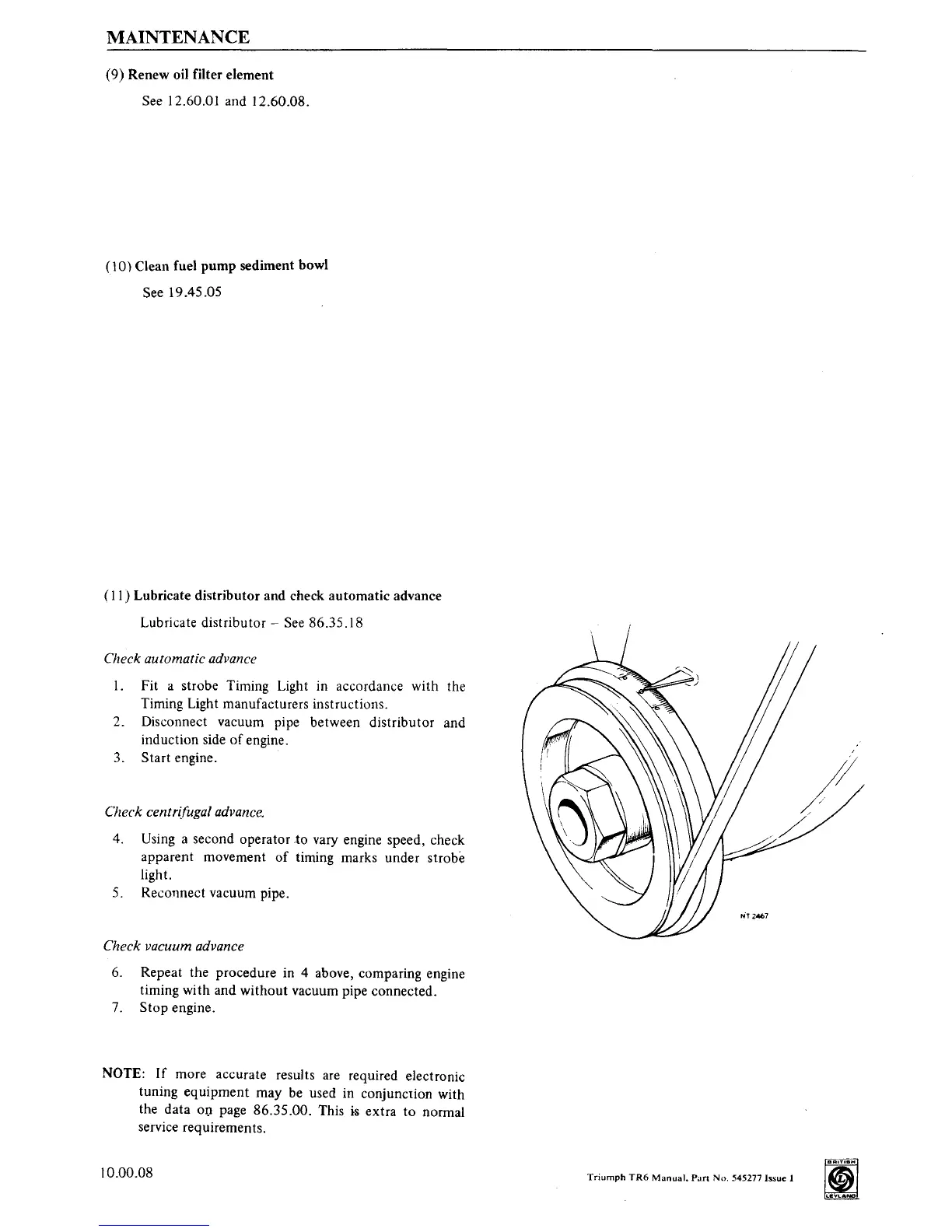

MAINTENANCE
(9) Renew oil filter element
See 12.60.01 and 12.60.08.
(I 0) Clean fuel pump sediment bowl
See 19.45.05
(II) Lubricate distributor and check automatic advance
Lubricate distributor -
See 86.35.18
Check automatic advance
I. Fit a strobe Timing Light in accordance with the
Timing Light manufacturers instructions.
2. Disconnect vacuum pipe between distributor and
induction side
of engine.
3. Start engine.
Check
centr(fugal advance.
4. Using a second operator
to vary engine speed, check
apparent movement
of timing marks under strobe
light.
5. Reconnect vacuum pipe.
Check vacuum advance
6. Repeat the procedure in 4 above, comparing engine
timing with and without vacuum pipe connected.
7. Stop engine.
NOTE:
If more accurate results are required electronic
tuning equipment may
be used in conjuncIion with
the data
01) page 86.35.00. This is extra to normal
service requirements.
10.00.08
Triumph TR6 Manual. Part No. 545277 Issue 1
~
~
