- 4 -
Operating Elements
Power inverter
q
Fan (on the rear panel)
w
Operation LED/Overload indicator
e
On/Off switch
r
220-240 V Socket for Euro-plug
t
USB Port
y
12 V connections (Red+/Black-)
u
Fuse holder
Cable with connection terminals
Cable with 12 V vehicle plug
40 A automotive flat fuse
Initial operation
Unpacking
1. Remove the device from the packaging.
2. Remove all packaging materials from the device.
Warning:
Do not permit small children to play with plastic
packaging. There is a risk of suffocation!
Check the items supplied
Before putting the device into use check to ensure
that all of the items listed are present and that there
are no visible signs of damage.
- Power inverter
- 1 Cable with connection terminals red/black
- 1 Cable with 12 V vehicle plug
- 1 40 A automotive flat fuse
- This operating manual
D
C
B
A
Operational information
For continuous operation of devices via the power
inverter the vehicle socket must supply a voltage
between 11 - 15,5 V . The voltage source of
the vehicle socket can be perhaps an automotive
battery or a regulated DC voltage like a transformer-
accumulator station. Before connecting the power
inverter check to see that the voltage source is supplying

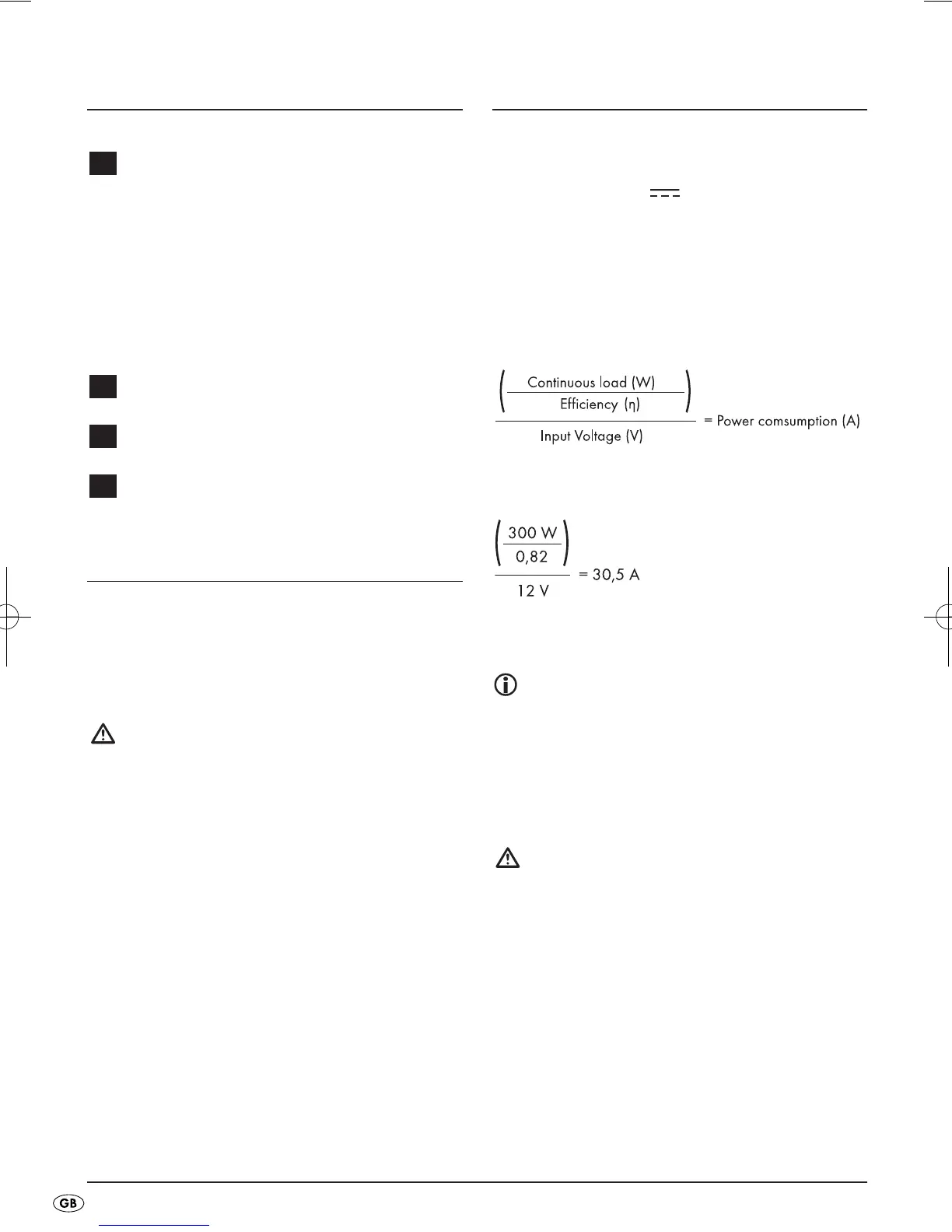

sufficient power for operation. The required power
needed for operation can be calculated as follows:
Example
The voltage source should provide for a continuous
load of 300 W and also for a minimum of 30,5 A.
Note:
12 V vehicle power sockets supply max. 15 A,
therefore the voltage transformer must be con-
nected directly to the terminals of a car battery
with the clamps. Only in this way can 300 W
continuous power be achieved.
Attention!
Never connect the power inverter to a 24 V
supply system. Otherwise the device will be
damaged. The device can only be connected to
a voltage source with a rated voltage of 12 V.
IB_61167_TSW300A1_GB_LB3.qxd 17.01.2011 14:04 Uhr Seite 4
