Trotec BE15 User Manual

4 EN
voltage detector BE15
Information about the device
Device description
The voltage detector detects alternating voltage (AC) and signals
it to the user via a flashing LED and an acoustic signal.
The device can be used for finding a cable break or determining
the presence of alternating voltage in fuses, wires and cables.
Additionally the measuring device is equipped with an
integrated LED torch.

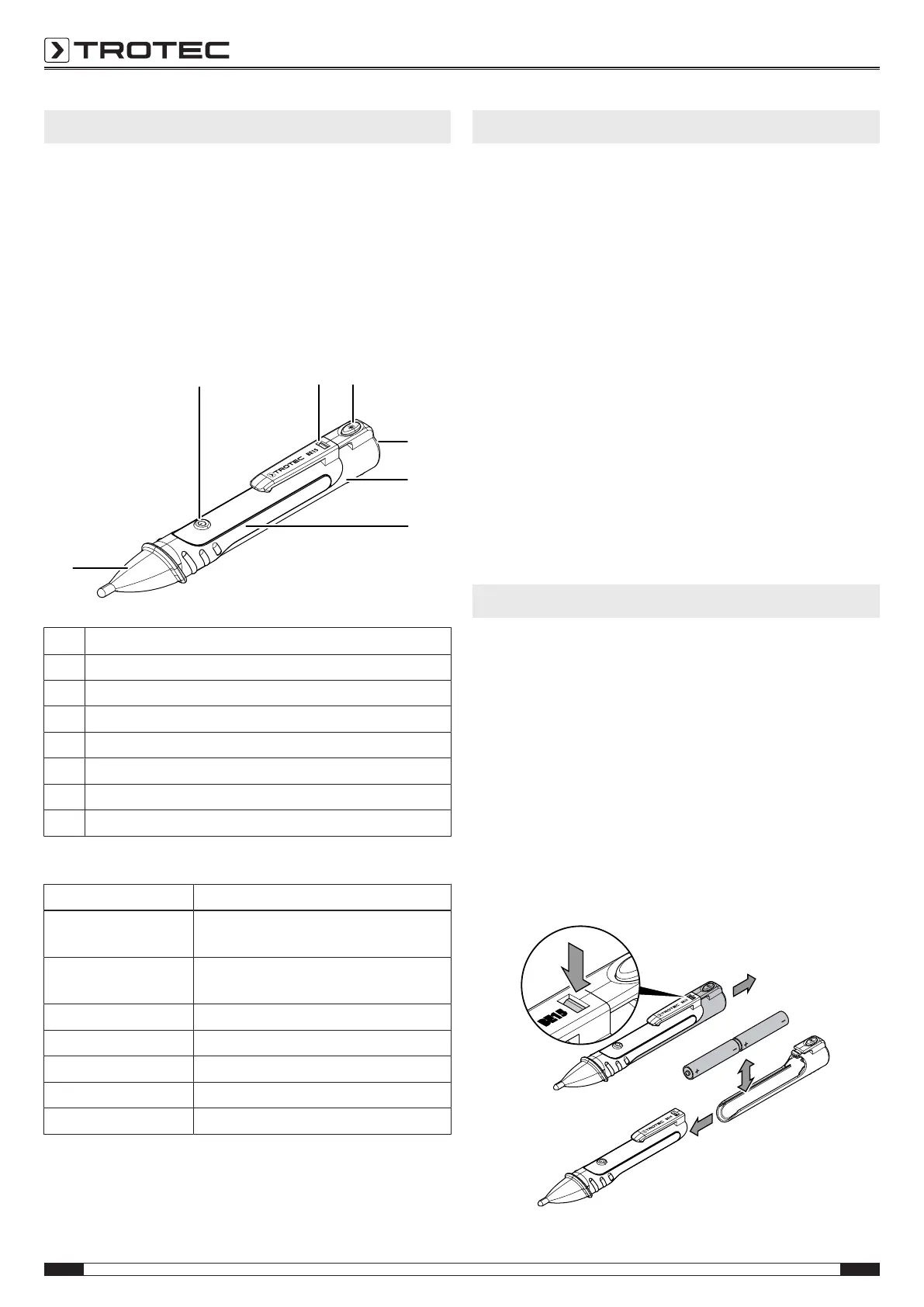

Device depiction
1 2 3
5
6
7
4
No. Designation
1 Device power button/ sensitivity selection button
2 Clip
3 LED torch power button
4 LED torch
5 Battery compartment cover
6 Battery compartment
7 Measuring tip
Technical data
Parameter Value
Detection range 200 V AC to 1000 V AC
24 V AC to 1000 V AC
Overvoltage category CAT III 1000 V
CAT IV 600 V
Degree of pollution 2
Battery type 2 x 1.5 V batteries AAA (Micro)
Weight 48.5 g
Ambient conditions 0°C to 40°C with max. 80% RH
Storage conditions -10°C to 60°C with max. 80% RH
Scope of delivery
1xVoltage detector BE15
2 x 1.5 V battery AAA (Micro)
1 x Quick guide
Transport and storage
Note
If you store or transport the device improperly, the
device may be damaged.
Note the information regarding transport and storage of
the device.
Transport
For transporting the device, use the bag included in the scope of
delivery in order to protect the device from external influences.
Storage
When the device is not being used, observe the following
storage conditions:
• dry and protected from frost and heat
• protected from dust and direct sunlight
• with a cover to protect it from invasive dust if necessary
• the storage temperature complies with the values specified
in the Technical data
• Remove the batteries from the device.
Operation
Inserting the batteries
Note
Make sure that the surface of the device is dry and the
device is switched off.
Insert the batteries contained in the scope of delivery
(2 x 1.5V AAA) before first use.
Please proceed as follows to insert the batteries into the device:
1. Press down the clip(2).
2. Pull the battery compartment cover(5) back.
3. Insert the batteries into the battery compartment(6) with
correct polarity.
4. Slide the battery compartment cover(5) back onto the
device and make sure that the clip(2) engages.
