4 EN
sound level measuring device Sl300

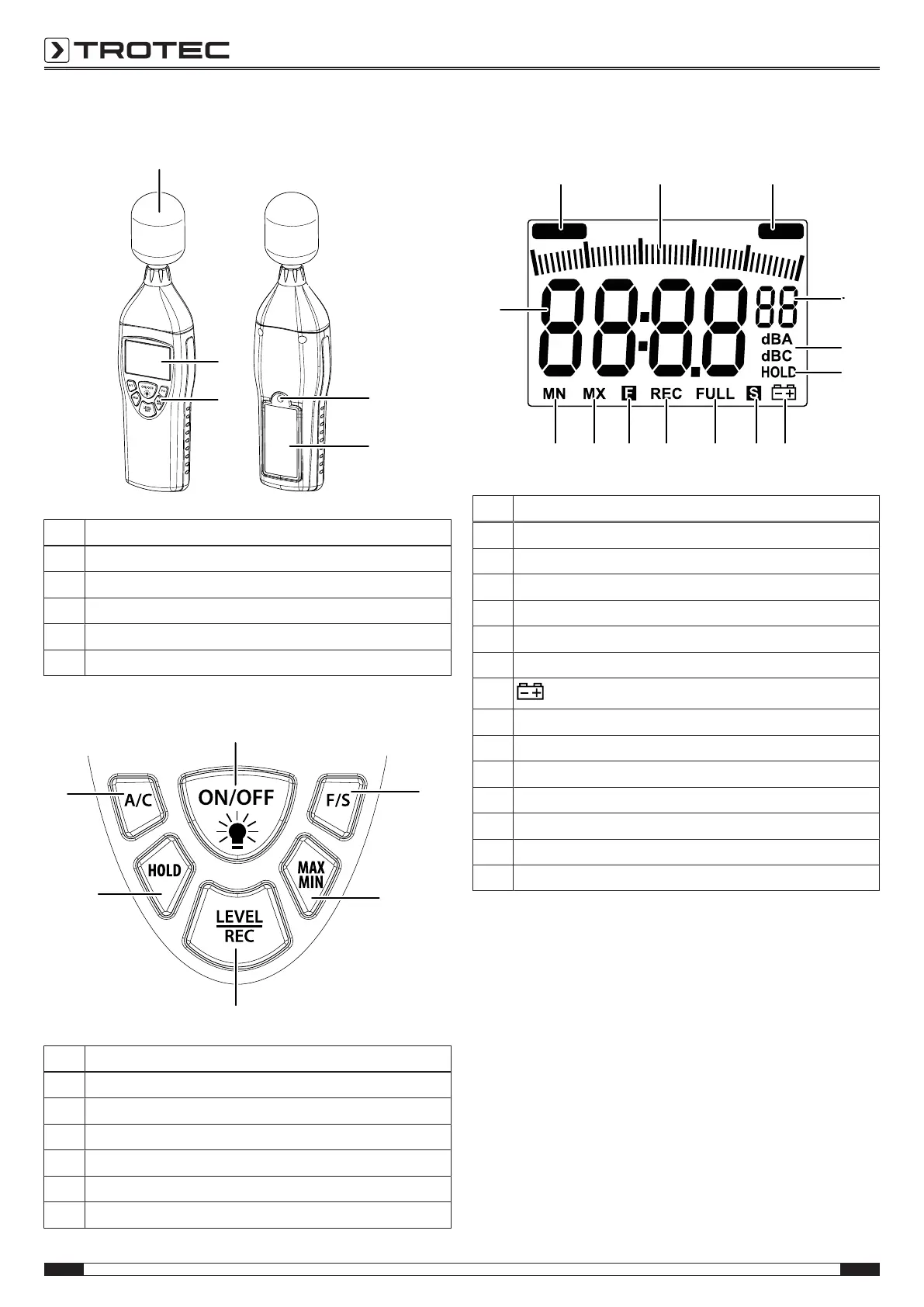

Device depiction
1
2
5
3
4
No. Designation
1 Measuring probe with protective cap
2 Display
3 Control panel
4 Tripod thread
5 Battery compartment with cover
Control panel
6
10
11
7
8
9
No. Designation
6 On/off button with background illumination
7 F/S button
8 MAX/MINbutton
9 LEVEL / RECbutton
10 HOLDbutton
11 A/C button
Display
OVERUNDER
12
14
16
15
17
13
19 1821 2023 2224
25
No. Designation
12 UNDER indication (i.e. fallen below measuring range)
13 Display of the measuring scale
14 OVER indication (i.e. measuring range exceeded)
15 Measuring range selectionindication (01–04)
16 dBA/ dBC indication (indication in dBA or dBC)
17 HOLD indication (measured value is recorded)
18
indication (low battery)
19 S indication (slow response time)
20 FULL indication (memory full)
21 REC indication (measuring process in progress)
22 F indication (fast response time)
23 MAXindication (maximum value)
24 MIN indication (minimum value)
25 Measured value display
