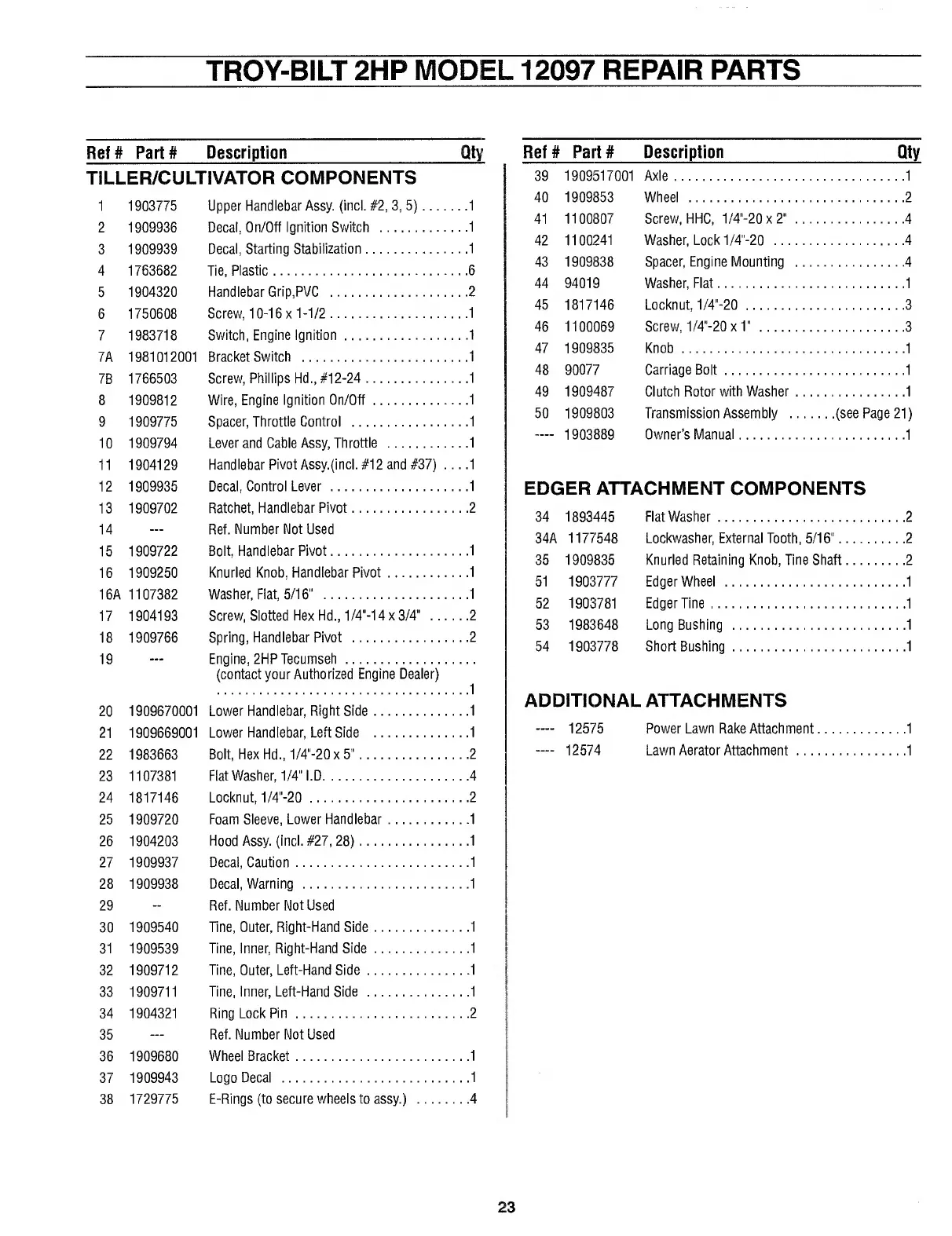

TROY-BILT 2HP MODEL 12097 REPAIR PARTS
Ref # Part # Description _ Qty
TILLER/CULTIVATOR COMPONENTS
1 1903775 Upper Handlebar Assy. (incl. #2, 3, 5).1
2 1909936 Decal, On/Off Ignition Switch .1
3 1909939 Decal, Starting Stabilization.1
4 1763682 Tie, Plastic.6
5 1904320 Handlebar Grip,PVC .2
6 1750608 Screw, 10-16x1-1/2.1
7 1983718 Switch, Engine Ignition.1
7A 1981012001 Bracket Switch .1
7B 1766503 Screw, Phillips Hd„ #12-24.1
8 1909812 Wire, Engine Ignition On/Off.1
9 1909775 Spacer, Throttle Control .1
10 1909794 Lever and Cable Assy, Throttle .1
11 1904129 Handlebar Pivot Assy.(incl. #12 and #37) ... .1
12 1909935 Decal, Control Lever .1
13 1909702 Ratchet, Handlebar Pivot.2
14 — Ref. Number Not Used
15 1909722 Bolt, Handlebar Pivot.1
16 1909250 Knurled Knob, Handlebar Pivot.1
16A 1107382 Washer, Flat, 5/16" .1
17 1904193 Screw, Slotted Hex Hd„ 1/4"-14x3/4" .2
18 1909766 Spring, Handlebar Pivot .2
19 — Engine, 2HP Tecumseh .
(contact your Authorized Engine Dealer)
.1
20 1909670001 Lower Handlebar, Right Side.1
21 1909669001 Lower Handlebar, Left Side .1
22 1983663 Bolt, Hex Hd„ 1/4"-20 x 5".2
23 1107381 Flat Washer, 1/4“ I.D.4
24 1817146 Locknut. 1/4 -20 .2
25 1909720 Foam Sleeve, Lower Handlebar.1
26 1904203 Hood Assy. (incl. #27, 28).1
27 1909937 Decal, Caution.1
28 1909938 Decal, Warning .1
29 - Ref. Number Not Used
30 1909540 Tine, Outer, Right-Hand Side.1
31 1909539 Tine, Inner, Right-Hand Side.1
32 1909712 Tine, Outer, Left-Hand Side.1
33 1909711 Tine, Inner, Left-Hand Side .1
34 1904321 Ring Lock Pin .2
35 — Ref. Number Not Used
36 1909680 Wheel Bracket.1
37 1909943 Logo Decal .1
38 1729775 E-Rings (to secure wheels to assy.) .4
Ref # Part # Description _Qty
39 1909517001 Axle.1
40 1909853 Wheel .2
41 1100807 Screw, HHC, 1/4"-20x2" .4
42 1100241 Washer, Lock 1/4"-20 .4
43 1909838 Spacer, Engine Mounting .4
44 94019 Washer, Flat.1
45 1817146 Locknut, 1/4 -20 .3
46 1100069 Screw, 1/4'-20 x 1“ .3
47 1909835 Knob.1
48 90077 Carriage Bolt.1
49 1909487 Clutch Rotor with Washer.1
50 1909803 Transmission Assembly .(see Page 21)
— 1903889 Owner’s Manual.1
EDGER ATTACHMENT COMPONENTS
34 1893445 Flat Washer.2
34A 1177548 Lockwasher, External Tooth, 5/16".2
35 1909835 Knurled Retaining Knob, Tine Shaft.2
51 1903777 Edger Wheel .1
52 1903781 Edger Tine.1
53 1983648 Long Bushing .1
54 1903778 Short Bushing.1
ADDITIONAL ATTACHMENTS
—- 12575 Power Lawn Rake Attachment.1
—- 12574 Lawn Aerator Attachment.1
23
