Troy-Bilt Bronco CRT Service Manual

Troy-Bilt Small Frame Tillers
4
3.5. Remove the lower cable tie securing the forward
clutch cable to the lower handlebar using side
cutters. See Figure 3.5.
3.6. Remove the hex flange screw and large flat
washer securing the belt cover to the lower
cable mounting bracket using a 3/8” socket. See
Figure 3.6.
3.7. Slide the belt cover down the forward clutch
cable until it is out of the work area.
NOTE: The upper portion of the forward clutch
cable will not fit through the belt cover.
3.8. Loosen the hex jam nut securing the forward
clutch cable to the lower cable mounting bracket
using a 3/8” wrench and a 7/16” wrench. See
Figure 3.8.
3.9. Slide the forward clutch cable out of the lower
cable mounting bracket.
3.10. Pivot the forward clutch cable’s Z fitting rear-
ward, and remove it from the forward idler lever.
See Figure 3.10.
3.11. Remove the lower portion of the forward clutch
cable from the belt cover.
3.12. Install the new forward clutch cable in the
reverse order above.
3.13. Perform the Forward Clutch Cable Adjustment
section.

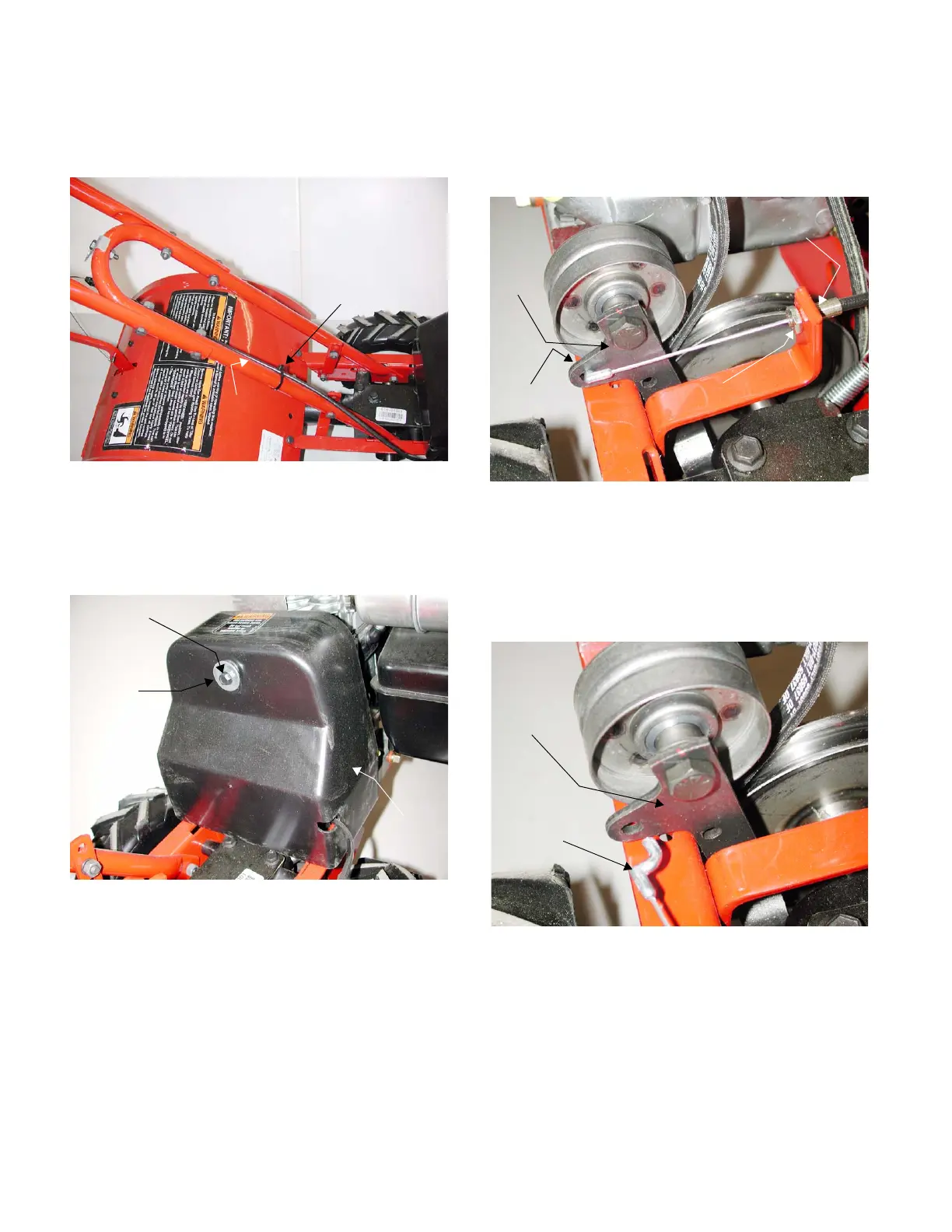

Figure 3.5
Cable Tie
Clutch
Cable
Figure 3.6
Hex Flange Screw
Large
Flat Washer
Belt Cover
Figure 3.8
Hex Jam Nut
Forward Clutch
Cable
Z Fitting
Idler
Lever
Forward
Figure 3.10
Z Fitting
Forward
Idler Lever

Troy-Bilt Bronco CRT Specifications

General

Number of Forward Speeds	1
Number of Reverse Speeds	1
Tilling Width	18 in.
Tilling Depth	8 inches
Warranty	2 years limited
Starting System	Recoil start
