Troy-Bilt Bronco CRT Operator's Manual

2.
3.

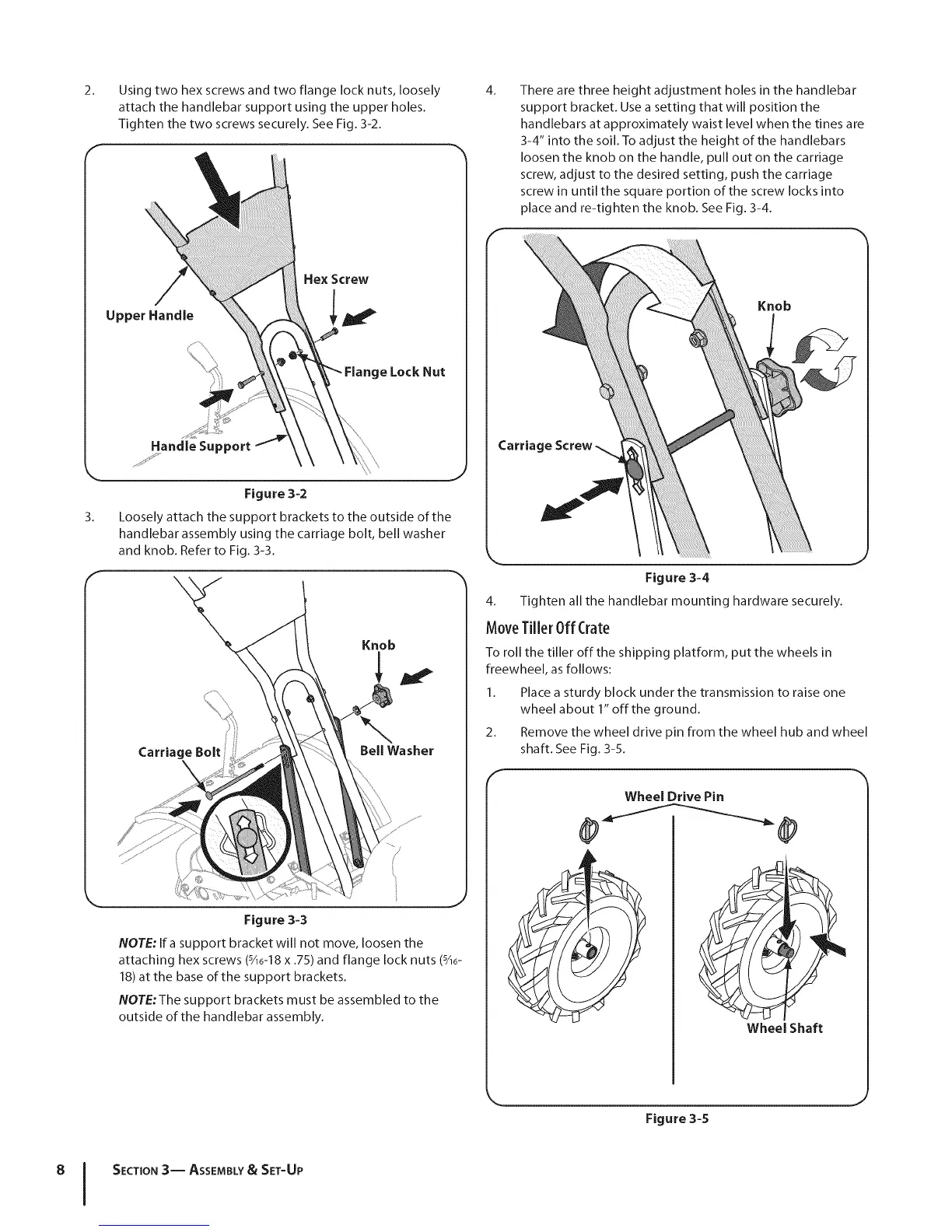

Using two hex screws and two flange lock nuts, loosely
attach the handlebar support using the upper holes.
Tighten the two screws securely. See Fig. 3-2.
Upper Handle
He× Screw
e Lock Nut
Figure 3-2
Loosely attach the support brackets to the outside of the
handlebar assembly using the carriage bolt, bell washer
and knob. Refer to Fig. 3-3.
Knob
Carriage Bolt Bell Washer
Figure 3-3
NOTE: If a support bracket will not move, loosen the
attaching hex screws (sA6-18x .75) and flange lock nuts (sA6-
18) at the base of the support brackets.
NOTE:The support brackets must be assembled to the
outside of the handlebar assembly.
4.
F
There are three height adjustment holes in the handlebar
support bracket. Use a setting that will position the
handlebars at approximately waist level when the tines are
3-4" into the soil. To adjust the height of the handlebars
loosen the knob on the handle, pull out on the carriage
screw, adjust to the desired setting, push the carriage
screw in until the square portion of the screw locks into
place and re-tighten the knob. See Fig. 3-4.
Carriage Screw
Figure 3-4
4. Tighten all the handlebar mounting hardware securely.
Move Tiller Off Crate
To roll the tiller off the shipping platform, put the wheels in
freewheel, as follows:
1. Place a sturdy block under the transmission to raise one
wheel about 1" off the ground.
2. Remove the wheel drive pin from the wheel hub and wheel
shaft. See Fig. 3-5.
f- -,_
Wheel Shaft
Wheel Drive Pin
Figure 3=5
8 I SECTION3-- ASSEMBLY& SET-UP

Troy-Bilt Bronco CRT Specifications

General

Number of Forward Speeds	1
Number of Reverse Speeds	1
Tilling Width	18 in.
Tilling Depth	8 inches
Warranty	2 years limited
Starting System	Recoil start
