Troy-Bilt TB25CB - Page 13

13

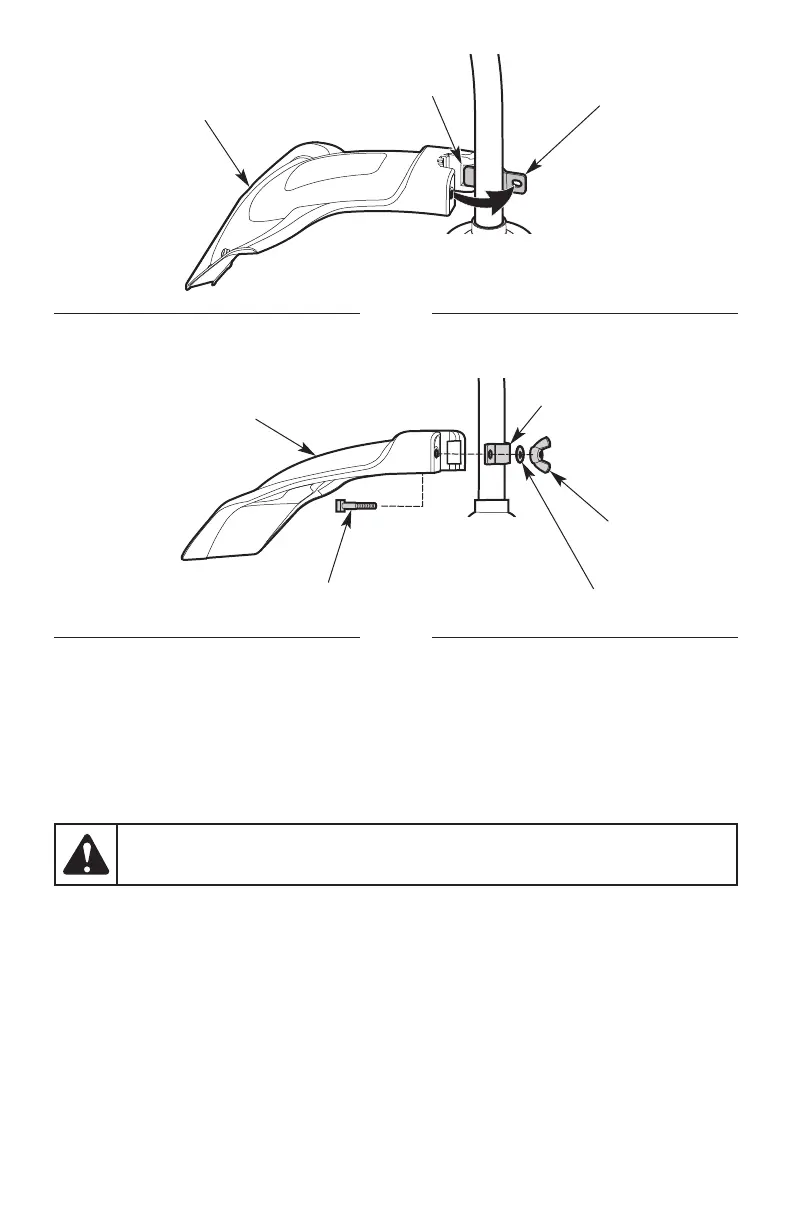

Fig. 1
Mount Bracket
Cutting Head Shield
Slot
Fig. 2
Washer
Square Bolt
Wing Nut
Cutting Head Shield
Mount Bracket
INSTALLING THE CUTTING HEAD SHIELD
(For straight-shaft units)
1. Remove the wing nut and washer from the cutting head shield.
2. Insert the short tab (the one without a hole) on the mount bracket into the slot on the cutting head
shield (Fig. 3).
3. Rotate the cutting head shield until the bolt on the cutting head shield protrudes through the hole
on the mount bracket (Fig. 3).
4. Place the washer onto the bolt (Fig. 4).
5. Screw the wing nut onto the bolt until the cutting head shield is rmly in place (Fig. 4).
WARNING: To prevent serious personal injury, never operate the unit without the
cutting head shield in place.
