Assembly & Set-Up
3
9
Contents of Carton
One Lawn Mower• One Grass Catcher• One Bottle of Oil•
One Lawn Mower Operator’s Manual• One Engine Operator’s Manual• One Side Discharge Chute•
NOTE: Please be aware that this Operator’s Manual covers both
the low and high wheel models of this mower. While this manual
illustrates the low wheel model, the instructions and features
are equally applicable to the high wheel model as well, unless
otherwise noted.
Assembly
NOTE: This unit is shipped without gasoline or oil in the engine.
Fill up with gasoline and oil as instructed in the accompanying
engine manual BEFORE operating your mower.
Handle
Remove any packing material which may be between 1.
upper and lower handles.
Remove wing nuts and carriage bolts from handle as a.
shown in Fig. 3-1. Do not loosen or remove adjacent
hex head screws.

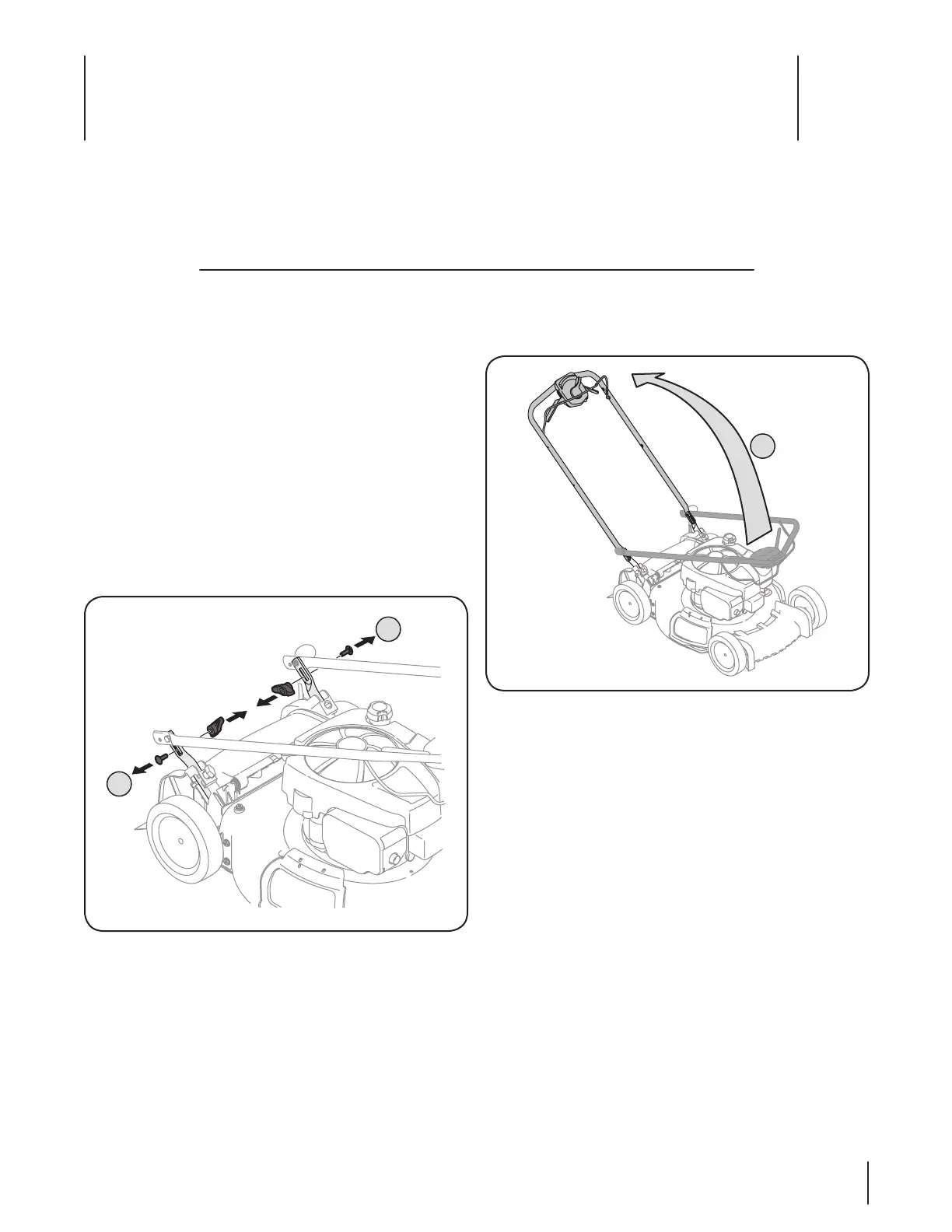

Figure 3-1
While stabilizing mower so it doesn’t move, pivot b.
upper handle up as shown in Fig. 3-2. Do not crimp
cables while lifting the handle up and make sure
they go on the outside of the handle.
Figure 3-2
To Next Page
