KNOW YOUR UNIT
APPLICATIONS
As a trimmer:
• Cutting grass and light weeds
• Edging
• Decorative trimming around trees, fences, etc.
As a brushcutter (TB490BC only):
• Cutting weeds and light brush of up to 1/2 inch in
diameter
Other optional accessories may be used with your unit.
Refer to Operating the EZ-Link System for a list of add-ons.

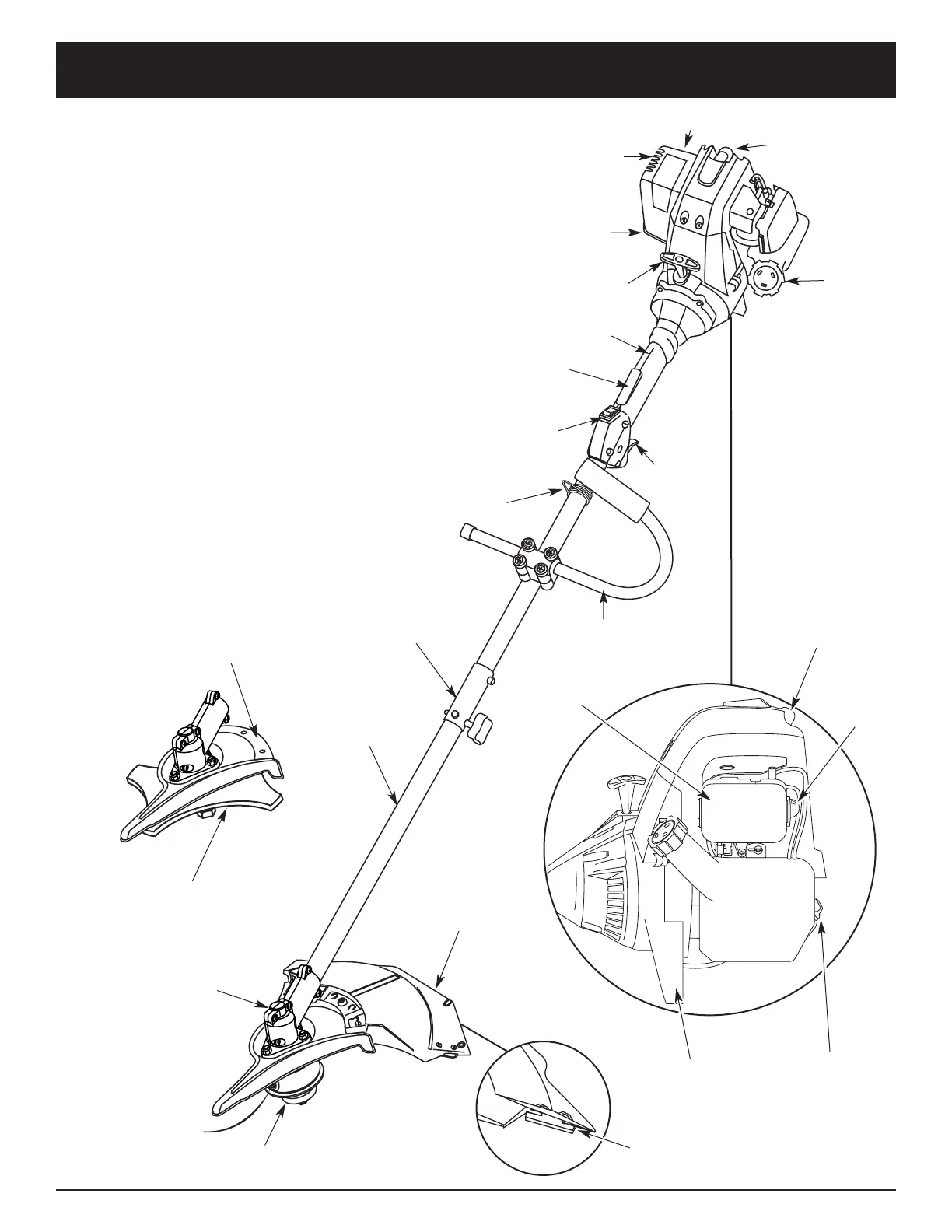

NOTE: The below illustration may differ slightly
from your unit. For example, the picture shows
a straight shaft. Your unit may have a curved
shaft. Also, the TB475SS has a D-handle,
although only a J-handle is pictured.
Primer
Bulb
Oil Fill Plug /
Dipstick
Air Filter
Cover
Engine
Feet
Spark Plug
Cutting Attachment
Shield
Fuel
Cap
Throttle
Control
Throttle Lock-Out
(TB490BC only)
J-Handle
(TB425CS & TB475SS only)
Cutting Attachment
Gear
Housing
Shaft Grip
On/Off Stop Control
Shaft
Housing
Starter Rope Grip
EZ-Link™
Blade Shield /
Shield Mount
(TB490BC only)
Brush Blade
(TB490BC only)
Line Cutting Blade
Spark Plug
Muffler
Muffler Guard
Spark Arrestor
Shoulder Strap Clip
