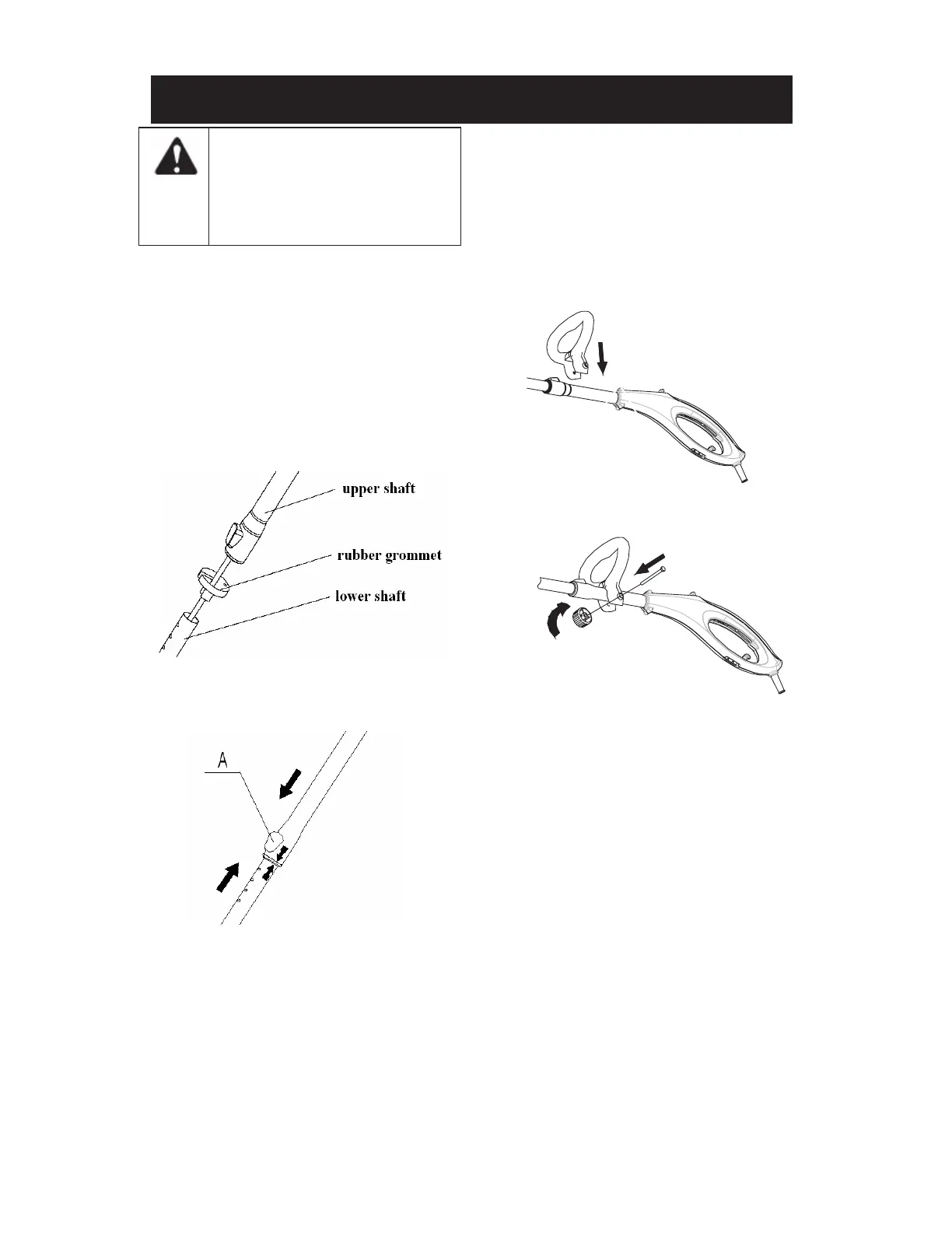

ASSEMBLY INSTRUCTIONS
WARNING: Be sure unit is
unplugged when making any
adjustment.
NOTE: The assembly required for your
trimmer is to install the debris shield, the
assist handle and 2 divided shafts.
ASSEMBLY OF 2 SHAFTS
1. Remove and discard the rubber grommet
( packing material ) before assembling
upper and lower shafts. ( Fig.1)
Fig. 1
2. Align 2 arrows on upper and lower shaft
as shown in Fig.2.
Fig.2
$
2. Place the assist handle on the upper
shaft (some force is required) Fig 3.
3. Tighten the adjustment knob and bolt.
(Fig. 4.)
Fig. 3
Fig. 4
INSTALLATION OF ASSIST HANDLE
1. Remove nut and bolt from handle
before assembly.
3. While pushing up on the shaft length
adjustment button (A), slide upper shaft
over lower shaft until it locks in place.
The
NOTE: Once the upper and lower shafts
are assembled, they will not separate again.
shafts will not come back apart.
