E19

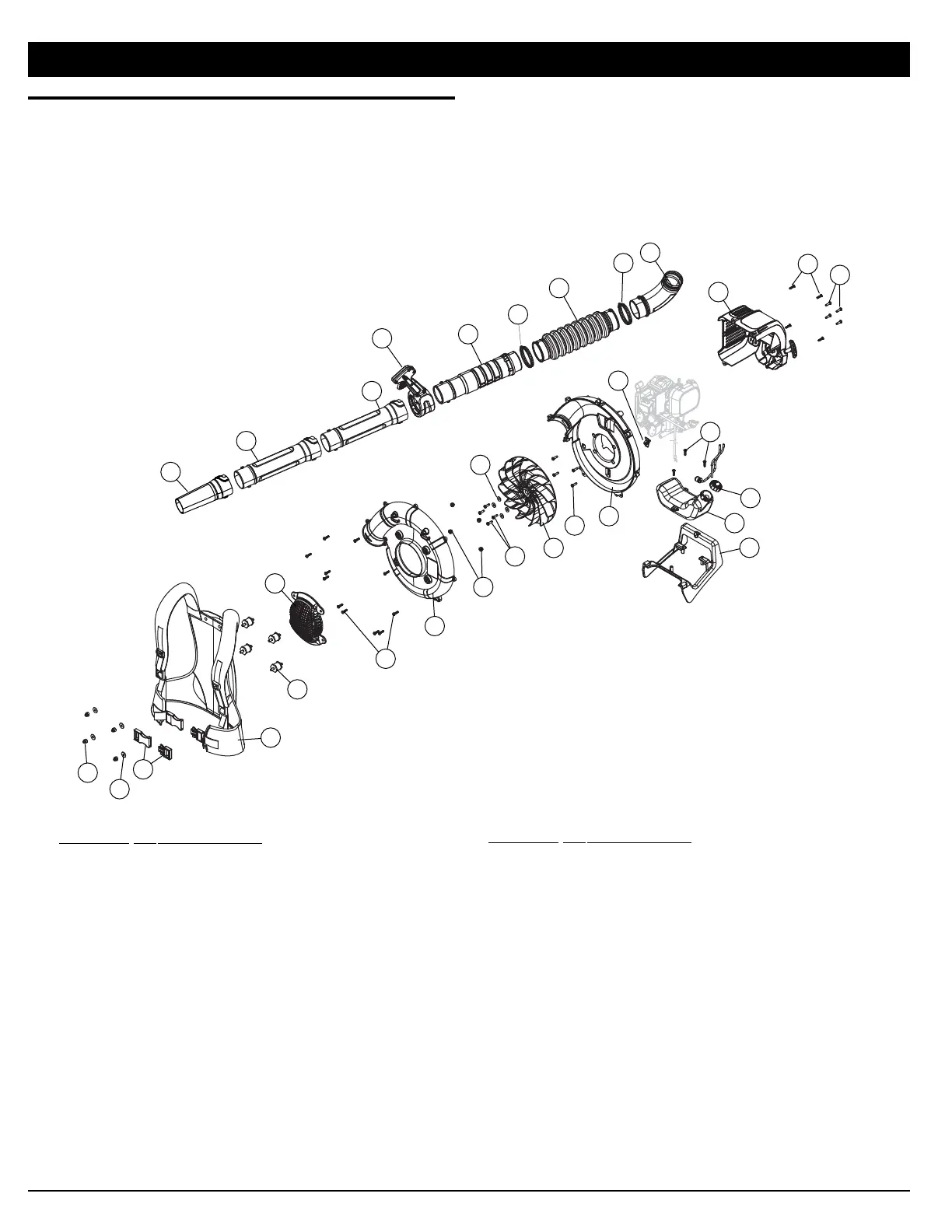

REPLACEMENT PARTS - MODEL TB4BP
4-CYCLE GAS BACKPACK BLOWER
PARTS LIST
8
9
12
14
15
16
18
17
15
14
23
22
21
17
17
24
13
7
5
6
5
4
3
2
2
1
Item Part No. Description
1 753-05637 Nozzle
2 753-05638 Lower Blower Tube
3 753-05652 Throttle Grip Assembly
4 753-05639 Upper Blower Tube
5 753-05640 Clamp
6 753-05641 Flex Tube
7 753-05642 Elbow Tube
8 753-05655 Waist Support Clip
9 753-05656 Suspension System (includes 8)
10 753-05647 Nut
11 753-05646 Spacer
12 753-05648 Insulator Mount
Item Part No. Description
13 753-05649 Intake Cover
14 753-04595 Screw
15 753-05658 Impeller Housing Assembly
16 791-180050 Nut
17 791-181003 Screw
18 753-05657 Impeller (includes 17)
19 791-182409 Washer
20 753-05661 Throttle Retaining Clip
21 753-05289 Fuel Cap
22 753-05662 Fuel Tank Assembly (includes 21)
23 753-05663 Stand
24 753-05660 Engine Cover Assembly
