AIS CTRX GRAPHENE Class B AIS Transponder Manual
1.4E 16 CTRX GRAPHENE Manual
PRODUCT SPECIFICATION
Dimensions: 210 x 144 x 50 mm (L x W x H)
Weight: 0,45 kg GRAPHENE, 0,5 kg GRAPHENE+
Power: DC 12-24V (min. 10V, max. 32V)
Average power consumption 4W (GRAPHENE)
Average power consumption 4.5 W (GRAPHENE+)
350 mA@12 VDC (receiving)
Peak current rating: 1.2A @ 12VDC (transmitting)
GPS Receiver (AIS Internal): IEC 61108-1 compliant
50 channels
Data Interfaces: USB
NMEA 2000 LEN (Load Equivalence Number) = 1
NMEA 0183, RS422 38400 baud
Connectors: VHF Antenna connector = BNC (Female)
GPS Antenna connector = TNC (Female)
USB B serial data (USB mini connector)
Combined NMEA 0183/DC power connector
NMEA2000 connector
VHF Radio = FME (Male) -GRAPHENE+ only
VHF Transceiver: 1 Transmitter, 2 Receivers
Frequency: 156.025 to 162.025 MHz
Receiver sensitivity: <- 110dBm @ 20% PER
RF Output Power: 2 W (50Ω)
Channel Bandwidth: 25 kHz
Data Bit rate: 9600 b/s ± 50 ppm (GMSK) AIS
1200 b/s ± 30 ppm (FSK) DSC
Environmental: IEC 60945, Operating Temperature: -15ºC to +55ºC
IEC 62287, Section 5, Cat c) exposed to the weather
Compass safe distance: 0.5m or more for 0.3° deviation.

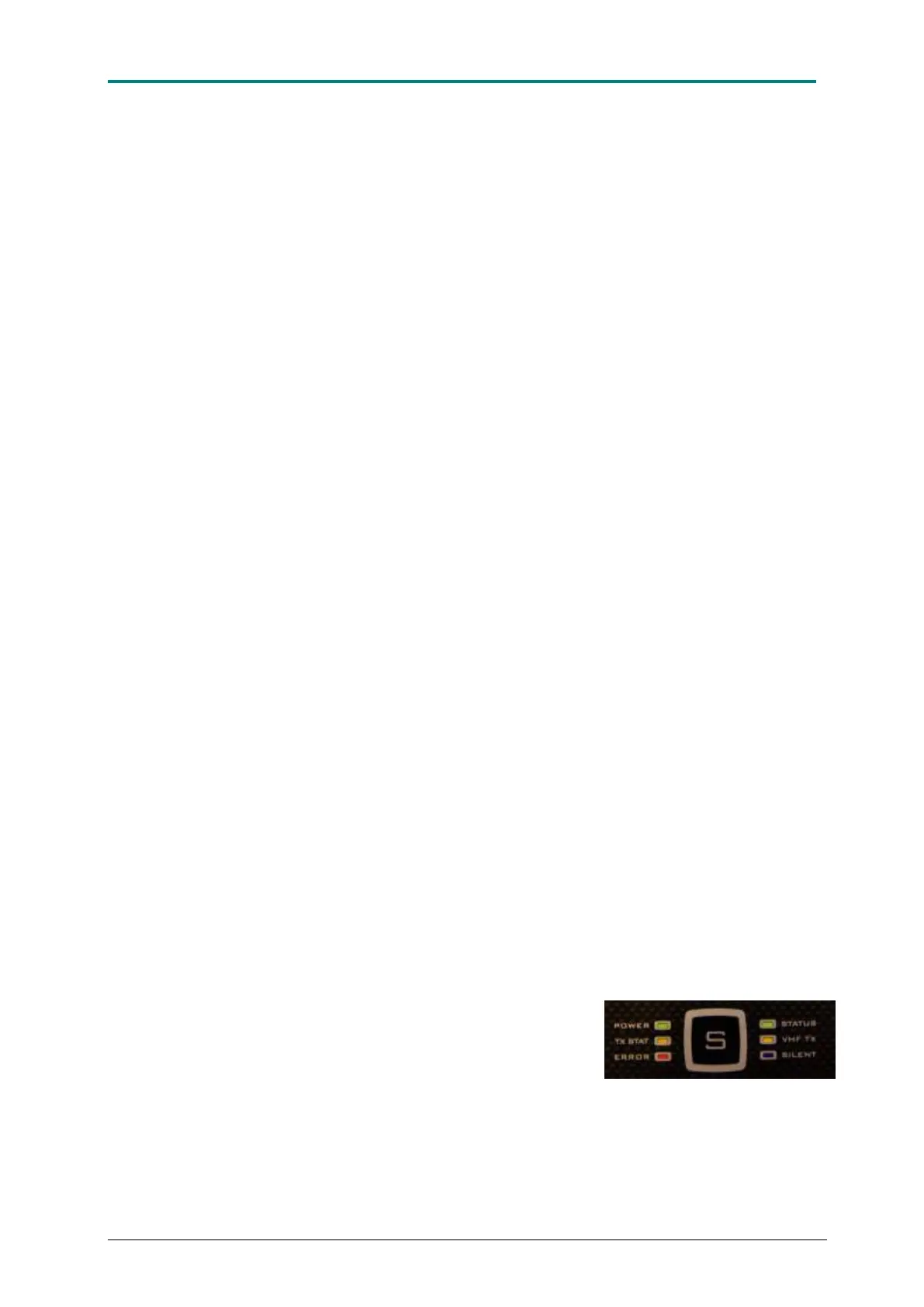

LED indicators: POWER - Green
STATUS - Green
TX STAT - Yellow
ERROS - Red
VHF TX - Yellow
SILENT- Blue
