LOCATING
............ www.truemfg.com ............
True Food Service Equipment, Inc.
INSTALLATION / OPERATION INSTRUCTIONS
Rail End
Lower Rail
Assembly
Snug Fit
Here
Leveling Shim
CastorLeg
Bearing
Race
Lower Rail Assembly
Snug Fit
Here
Rail End
Thread castor into the underside
of cabinet frame rail.
Thread leg into cabinet bottom
frame rail.
The end of the leg is adjustable to
easy leveling.
Use the tool provided to tighten
the castor into place.
For leveling, insert the shim between
the castor and frame rail.
1
2
3
4
5

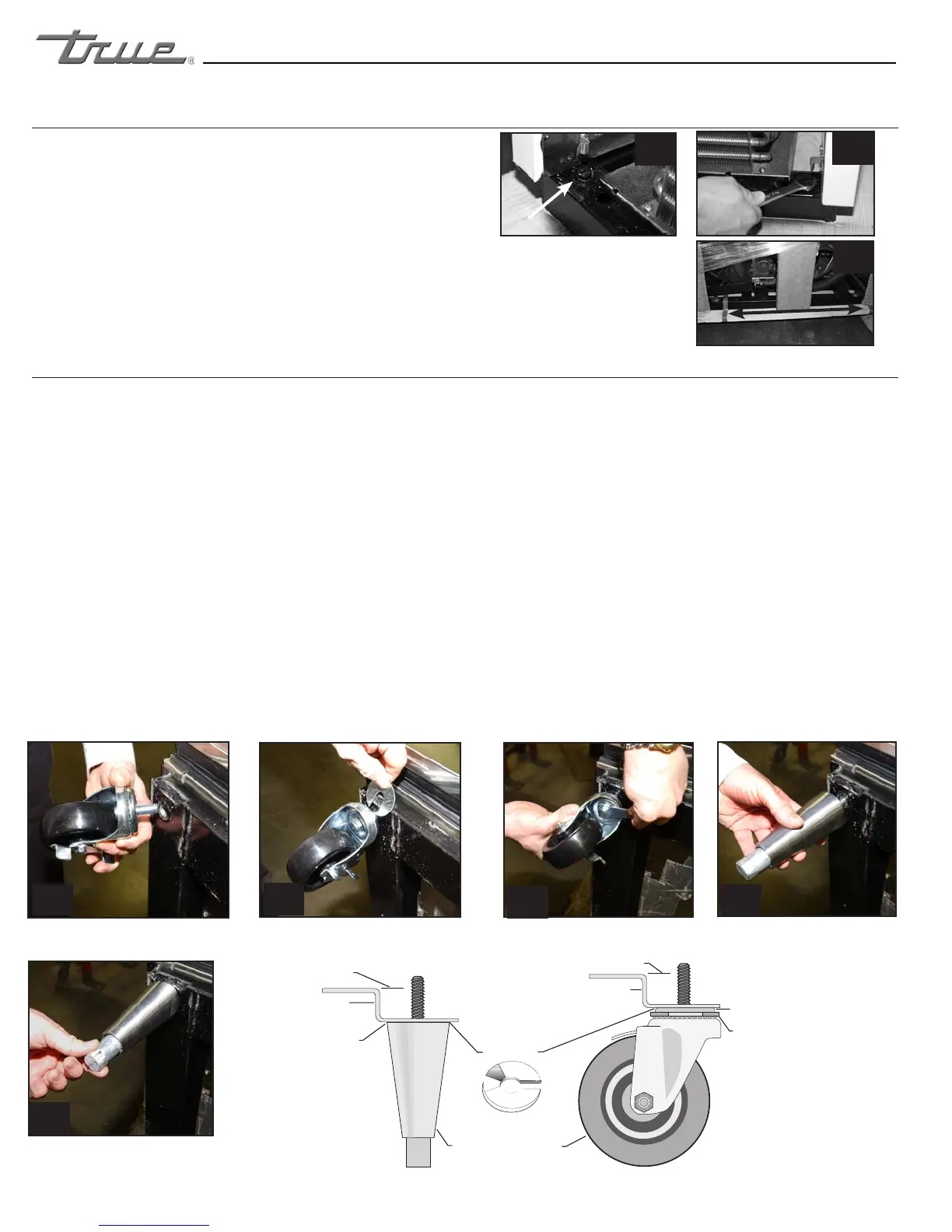

INSTALLATION OF LEGS AND CASTORS
Important Safeguard for installation of leg/castor (Images 1-5 demonstrate procedure)
Securing Castors and Legs





Unit leveling



A. 


B. 


C. 

D. 


CAUTION
To avoid damage to lower rail assembly,
slowly raise unit to upright position.
NOTE
Open holes located on the cross members of the frame rail
should be plugged before unit is in use.
A. 

B. 

C. 
D. 
E. 
F. 

Removing skid from bottom
of cabinet.
A
B
C
