GDM FREEZER / REFRIGERATOR
TEC_TM_105 | REV. D | EN 05/16/2023 Page 17 of 40
truemfg.com
Castor Installation (GDM-10/12)
1. Position Styrofoam or cardboard on the floor behind the
appliance.
2. Carefully lay the appliance on its back.
3. Remove the front louver grill.
4. Remove the shipping bolts.
5. Install the castors into the threaded holes.
NOTICE ›
Be sure to position castors with brakes at the
appliance’s front.
6. Position the front castors forward and engage the brakes.
7. Install the front louver grill.
8. Carefully lift the appliance upright.
NOTICE ›
Slowly lift the appliance upright to avoid
damaging the lower rail assembly.
9. Verify the appliance is level. Adjust level as needed.
See “Leveling Screw, Leg, or Castor Installation” (pg. 15).
Installation & Setup (cont.)
WARNING!
Tipping hazard! Appliance may tip if front castors
are not positioned forward and locked.
Proper leveling of your TRUE appliance is critical to operating
success (for non-mobile appliances). Leveling impacts effective
condensate removal and door operation.
See "Leveling Screw, Leg or Castor Installation" (pg. 15) for level
adjustment and shimming information.
Procedure
Position the appliance in its final installation location. Then, level
the appliance front-to-back and side-to-side. See fig. 1.
1. Position the level on the inside floor of the appliance near the
doors (level parallel to appliance front). Level the appliance.
2. Position the level at the inside rear of the appliance
(level parallel to appliance back). Level the appliance.
3. Position the level on the left and right inside floor (level parallel
to appliance sides). Level the appliance.
Level the Appliance
WARNING!
Tipping hazard! ALWAYS verify center castors or
leveling legs fully contact the floor after leveling the
appliance. See fig. below.

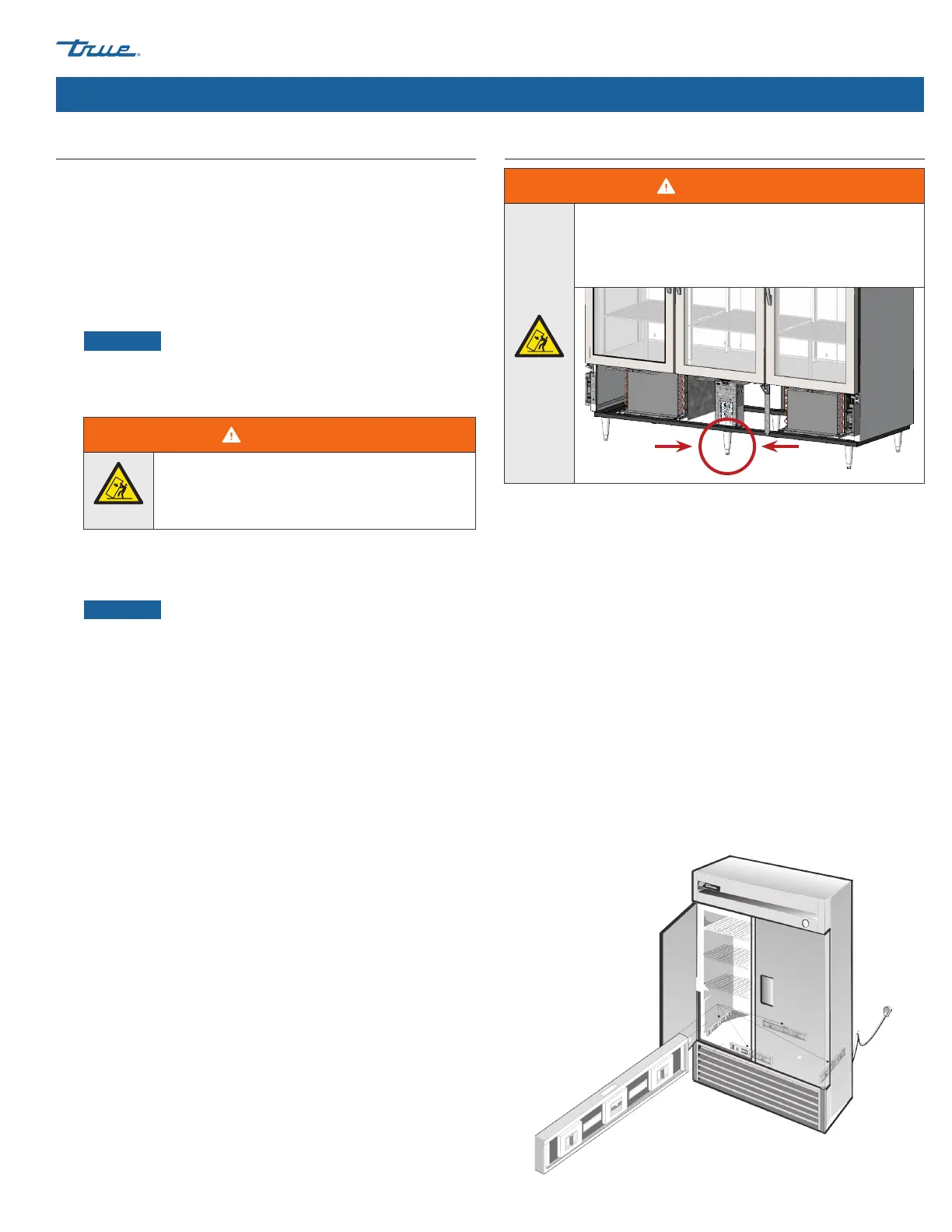

Fig. 1. Measure the level along the perimeter of the interior floor.
