CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS (continued):

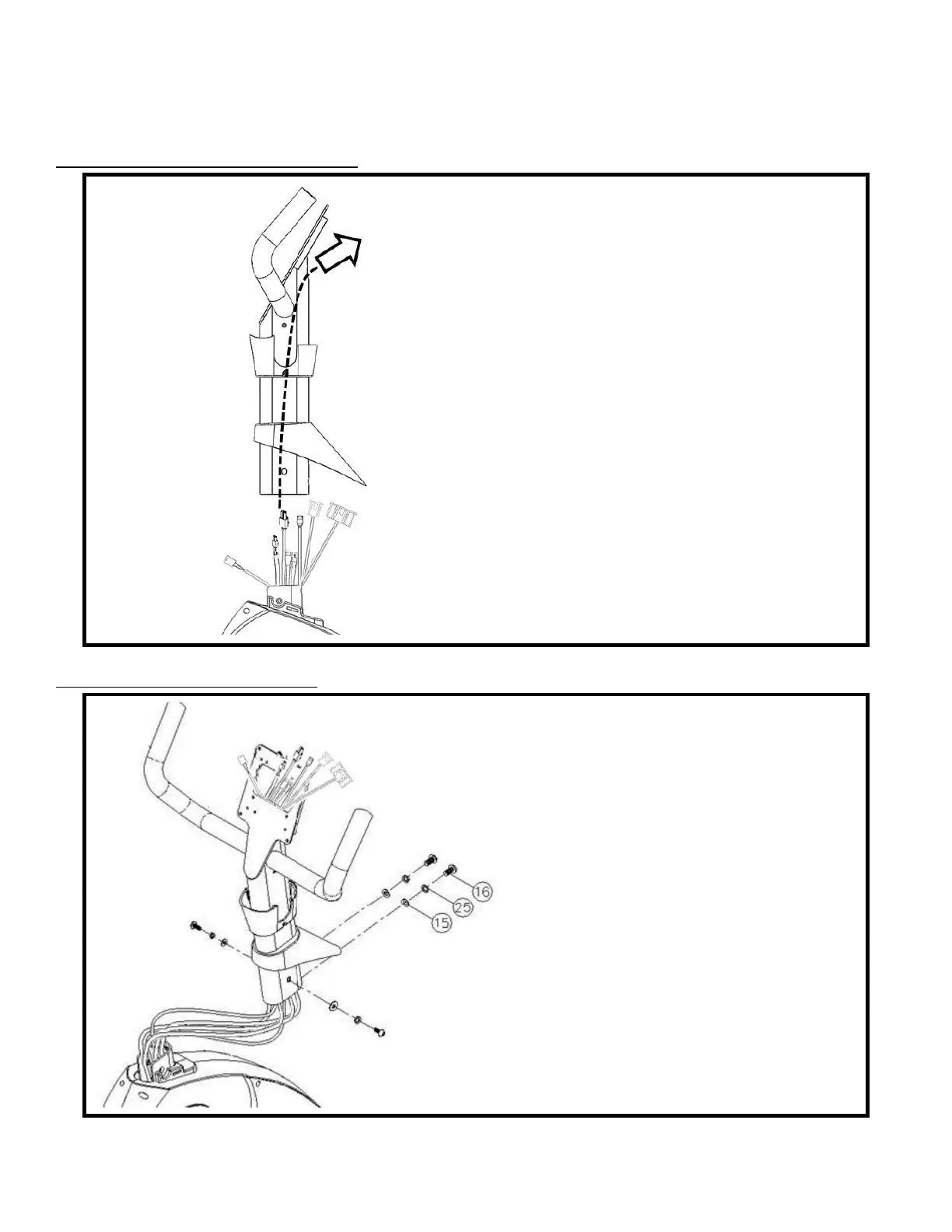

Step 11 Front Mast Cable Routing:
• At least 1 person should hold the Front Mast
while an additional person(s) routes the
Front Mast cables
• Route the
bundle of cables through the Front
Mast (as shown, left)
• A Pull-tie has been provided (attached to the
Front Mast tube) in order to help facilitate
this routing
• Some installers may find it easier to route
each Cable from the Front Mast cable bundle
individually through the Front Mast tube
Step 12 Front Mast Assembly:
• Install the Front Mast onto the Bike Frame;
the short bracket on the Bike Frame should
fit inside the Front Mast tube
• Verify that the Front Mast is in the correct
orientation; Front Mast handlebars should be
facing the Seat Assembly
• For each screw (#16) insert through quantity
1 split washer (#25) then 1 flat washer (#15)
• Insert each screw assembly (quantity 4)
through the Front Mast tube, into the Bike
Frame bracket
• Tighten using the provided 6mm hex wrench
• Verify that the Front Mast is secured tightly
to the Bike Frame; tighten screws, if
necessary
• Slide Mast Boot down; tabs on the inside of
the Mast Boot will fit inside slots on the
