CHAPTER 2: ASSEMBLY INSTRUCTIONS
BIKE ASSEMBLY STEPS (continued):

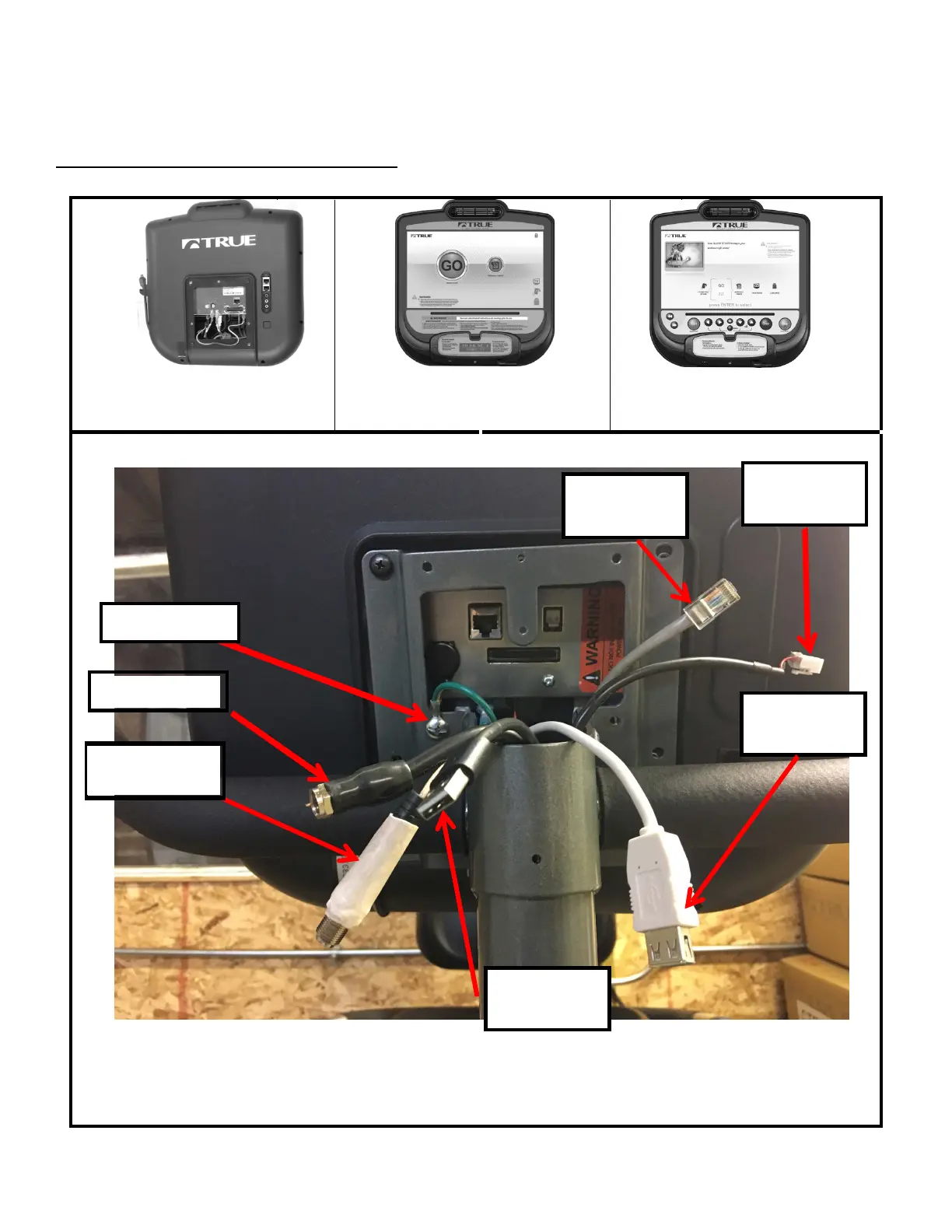

Step #15A Console Cable Connections:
*Follow Step 15A if installing a touchscreen console or 15”TFT console. For other consoles, proceed to Step 15B.
16” Touchscreen
Console
NOTE: Ethernet & Coaxial cable connections are not available on the Orange LED or 9” TFT Consoles
The Ethernet Port on the 15” TFT Console is non-functioning
All Ground Wires Must be connected
Truefitness.com / 800.426.6570 / 636.272.7100 16
Console
15” TFT
Coaxial Cable
Power Cable
(2 P
in )
Network
Cable
Adapter Cable
(USB)
Ground Wire
Data Cable
(USB)
Coaxial Cable
Adapter
To Next Page
