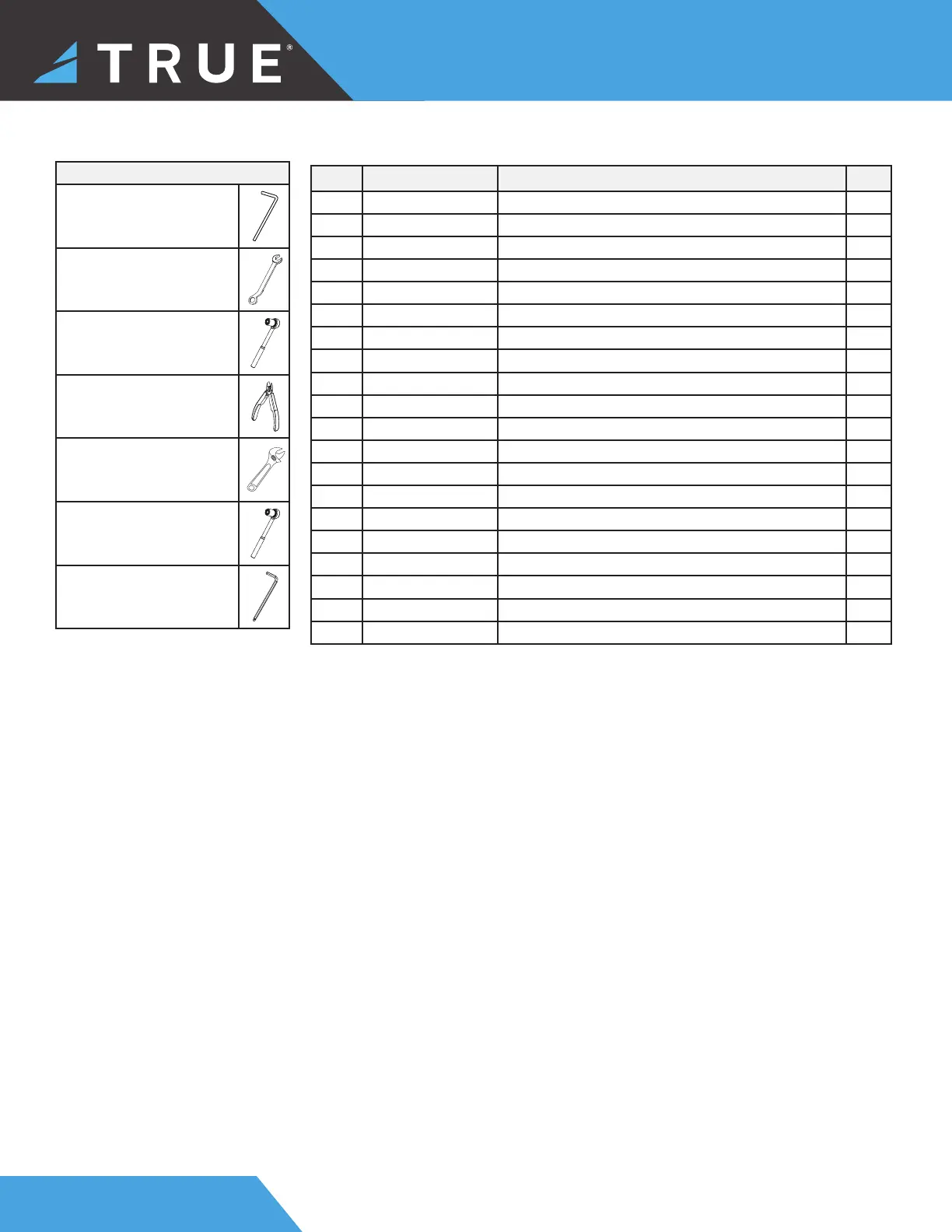

True SPL1000 - Page 20

20
ITEM PART DESCRIPTION QTY
1 SPL-10-UPR200X UPRIGHT ASSEMBLY 1
2 SPL-10-MFR000X MAIN FRAME ASSEMBLY 1
3 SPL-10-CAM100X PULLEY ASSEMBLY 1
4 SPL-10-ARM000X ARM, LEFT, ASSEMBLY 1
5 SPL-10-ARM220X PIVOT ARM, LEFT, LOWER, ASSEMBLY 1
6 SD0183 PULLEY 114MM 3
7 SPL-10-CBL000 SUBASSEMBLY, CABLE, MAIN FRAME, SPL1000 1
8 SPL-10-CBL100X SUBASSEMBLY, CABLE, UPRIGHT, SPL1000 1
9 C1258 LPSHCS, 3/8”-16 X 1-3/4” E-COAT 2
10 C 766A LOCK NUT, 3/8”-16 X 17/64”, NYLON 2
11 C 754B WASHER, FLAT, 3/8” SAE, BLK 4
12 C1260 LPSHCS, 3/8"-16 X 2" E-COAT 1
13 C 749B LOCK WASHER, 3/8”, BLK ZP 2
14 SPL-00-CBL003 BOLT, CABLE 1
15 C1254 LPSHCS, 3/8"-16 X 1/2" E-COAT 1
16 SPL-00-CAP101X SUBASSEMBLY, LABEL, KNEE PIVOT CAP 1
17 C1403 HEX NUT, M20, BLK 1
18 C 918A WASHER, FLAT, 3/4" SAE, BLK 1
19 SPL-10-AXL050 WELDMENT, MAIN AXLE 1
20 C1230 BHCS, 1/2"-20 X 1/2", BLK 1
STEP 2—ROUTE CABLE THROUGH UPRIGHT AND MAIN FRAME ASSEMBLIES
TOOLS NEEDED
Allen Wrench
Wrench
Socket Wrench
Wire Cutters
Adjustable Wrench with
41mm or 1" 5/8 Opening
30mm or 1" 3/16 Socket
Ball End Allen Wrench
