STANDARD FEATURES
Model:
TRUE FOOD SERVICE EQUIPMENT
2001 East Terra Lane • P.O. Box 970 • O’Fallon, Missouri 63366 • (636)240-2400 • Fax (636)272-2408 • (800)325-6152 • Intl. Fax# (001)636-272-7546 • www.truemfg.com
WARRANTY
One year warranty on all parts
& labor and an additional 4 year
warranty on compressor.
(U.S.A. only)
METRIC DIMENSIONS ROUNDED UP TO THE
NEAREST WHOLE MILLIMETER
SPECIFICATIONS SUBJECT TO CHANGE
WITHOUT NOTICE

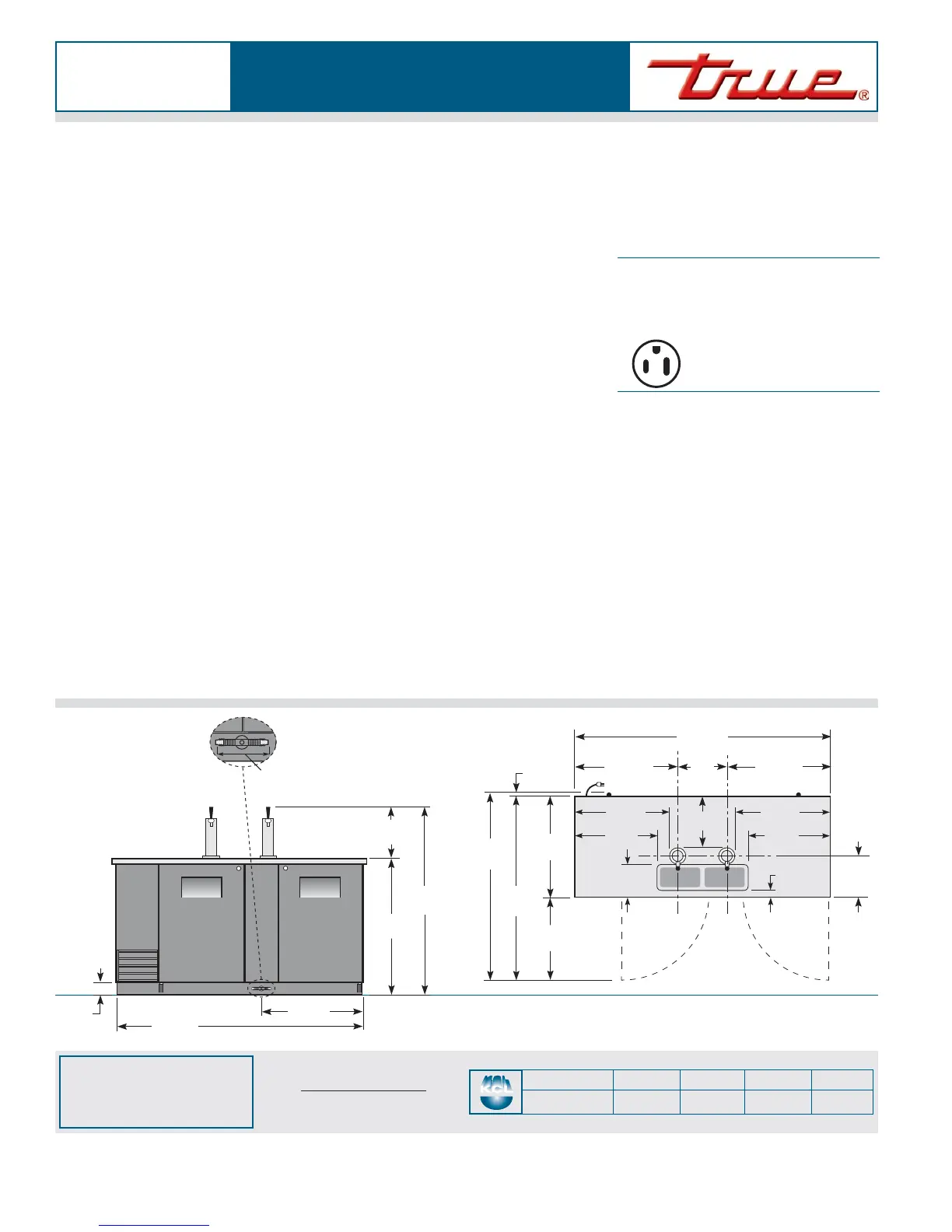

Model Elevation Right Plan 3D
PLAN VIEW
KCL
TDD-3 TFHY02E TFHY02S TFHY02P TFHY023
Direct Draw Beer Dispenser:
Solid Door
TDD-3
DESIGN
• True’s direct draw beer dispensers are
designed with enduring quality and
value. Our commitment to using the
highest quality materials and oversized
refrigeration assures colder product
temperatures and years of trouble
free service.
REFRIGERATION SYSTEM
• Factory engineered, self-contained,
capillary tube system using
environmentally friendly (CFC free)
134A refrigerant.
• Extra large evaporator coil balanced
with higher horsepower compressor
and large condenser; maintains cabinet
temperatures of 33°F to 38°F (.5°C to
3.3°C).
• Sealed, cast iron, self-lubricating
evaporator fan motors and larger
fan blades give True beer dispensers
a more effi cient low velocity, high
volume airfl ow design. This unique
design ensures faster temperature pull
down of warm product, colder holding
temperatures and faster recovery in
high use situations.
• Condensing unit accessed from behind
front grill, slides out for easy cleaning
and maintenance.
CABINET CONSTRUCTION
• Exterior - heavy duty, wear resistant
laminated black vinyl front and sides.
Matching black aluminum back. All
stainless steel counter top.
• Interior - 300 series stainless steel fl oor
with
1
/2" (13 mm) reinforced lip and
heavy gauge galvanized steel walls.
• Insulation - entire cabinet structure and
solid doors are foamed-in-place using
high density, CFC free, polyurethane
insulation.
• Welded, heavy duty galvanized base rail
dipped in rust inhibiting enamel paint
for corrosion protection inside
and out.
• Two (2) 3" (77 mm) diameter stainless
steel insulated beer columns. Cold air
is directed into beer columns to reduce
foaming and maximize
draft beer profi ts.
DOORS
• Wear-resistant laminated black vinyl
exterior with heavy gauge galvanized
steel liner.
• Each door fi tted with 12" (305 mm)
long recessed handle that is foamed-
in-place with a sheet metal interlock to
ensure permanent attachment.
• Positive seal doors.
• Magnetic door gaskets of one piece
construction, removable without tools
for ease of cleaning.
• Door locks standard.
LIGHTING
• Incandescent interior lighting.
MODEL FEATURES
• Evaporator is epoxy coated to eliminate
the potential of corrosion.
• Convenient
1
/2" (13 mm) barbed T drain
fi tting located on front of cooler.
• Designed to accommodate all types
of beer kegs.
• Listed under NSF-7 for the storage
and/or display of packaged or bottled
product.
ELECTRICAL
• Unit completely pre-wired at factory
and ready for fi nal connection to a
115/60/1 phase, 15 amp dedicated
outlet. Cord and plug set included.
OPTIONAL FEATURES/ACCESSORIES
Upcharge and lead times may apply.
❒ 230 - 240V / 50 Hz.
❒ 6" (153 mm) standard legs.
❒ 6" (153 mm) seismic/fl anged legs.
❒ 2
1
/2" (64 mm) diameter castors.
❒ 4" (102 mm) diameter castors.
❒ Double headed draft column.
❒ Two-way tapper manifold.
❒ Three-way tapper manifold.
❒ Draft cap.
❒ Remote cabinets (condensing unit
supplied by others; system comes
standard with 404A expansion valve
and requires R404A refrigerant).
Consult factory technical service
department for BTU information.
115/60/1
NEMA-5-15R
ELEVATION
PLAN VIEW
37"
(940 mm)
3"
(77 mm)
27
1
/16"
(688 mm)
11
7
/32"
(285 mm)
52
1
/4"
(1328 mm)
69
1
/16"
(1755 mm)
15
1
/4"
(388 mm)
48
27
/32"
(1241 mm)
21
25
/32"
(554 mm)
13"
(331 mm)
28
1
/32"
(712 mm)
1
/2"(13 mm)
Barbed T
Drain Fitting
3
7
/8"
99 mm
28
1
/8"
(715 mm)
67
1
/4"
(1709 mm)
28
1
/32"
(712 mm)
1
31
/32"
(50 mm)
22
9
/32"
(566 mm)
25
25
/32"
(655 mm)
22
9
/32"
(566 mm)
25
25
/32"
(655 mm)
13
19
/32"
(346 mm)
8
31
/32"
(228 mm)
49
27
/32"
(1267 mm)
1"
(26 mm)
