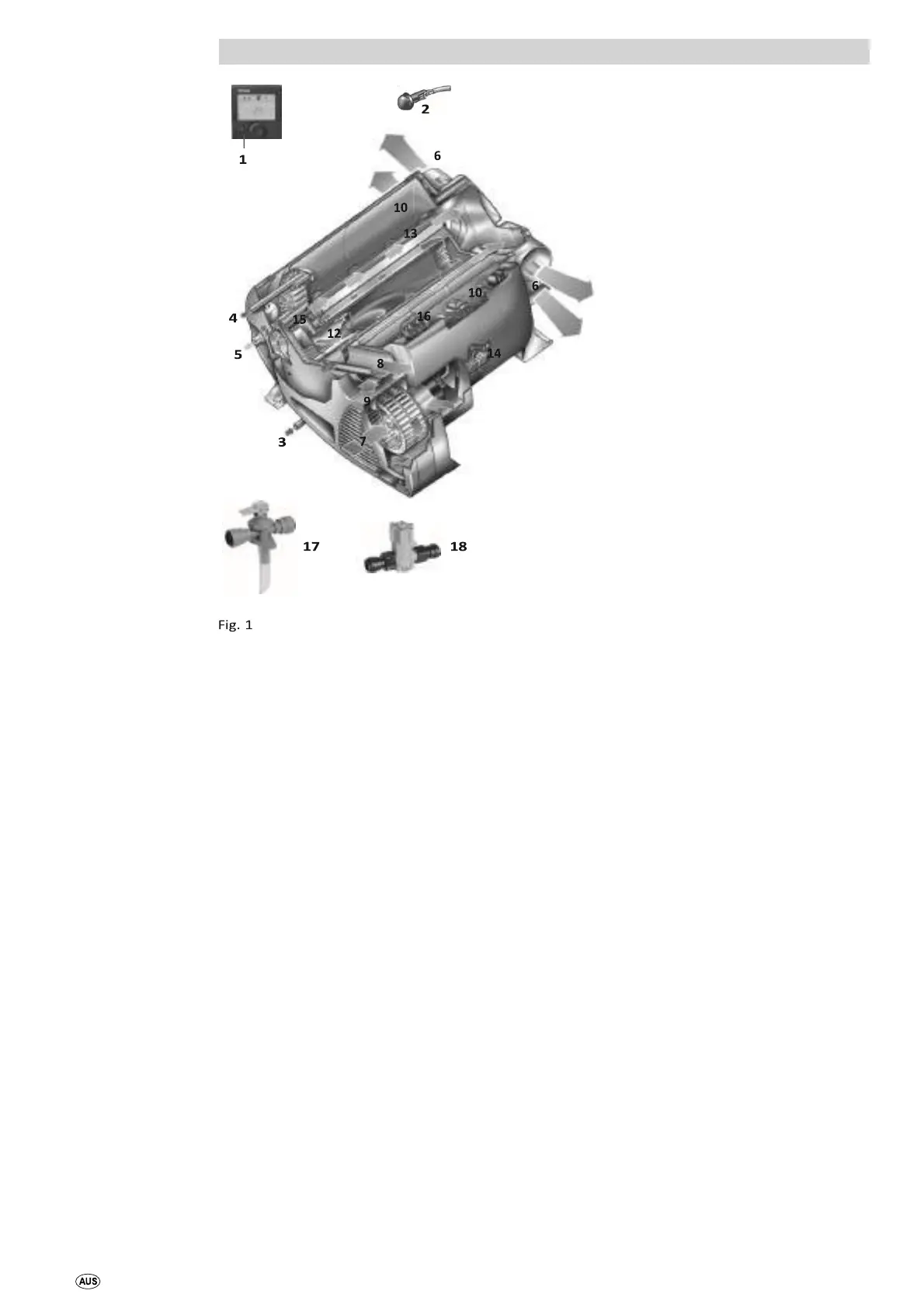

Combi 2 E / 4 E CP plus (Australia)
1 Control panel (digital)
2 Room temperature sensor
3 Cold water connection
4 Hot water connection
5 Gas connection (with pressure test point – not shown)
6 Hot air outlets
7 Recirculated air intake
8 Waste gas discharge
9 Combustion air infeed 10 Electronic control unit
11 Water container (10 litres)
12 Burner
13 Heat exchanger
14 Power electronics
15 Heating elements 240 V
16 Overheating switch 240 V
17 Safety/drain valve
