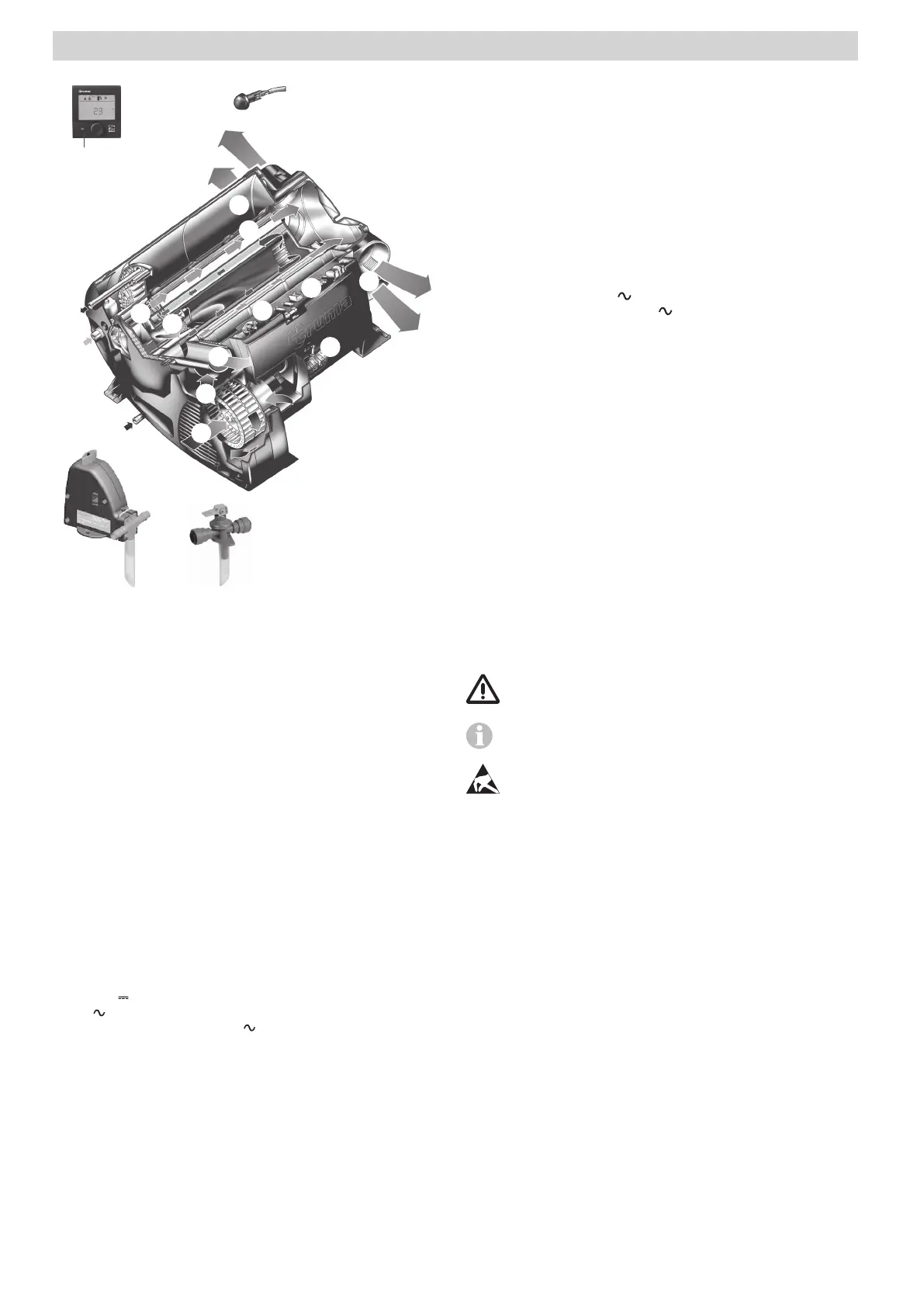

Truma Combi Series User Manual

2 EN
1 Control panel, digital or analogue (no picture)
2 Room temperature sensor
3 Cold water connection
4 Hot water connection
5 Gas connection
6 Warm air outlets
7 Circulated air intake
8 Exhaust gas discharge
9 Combustion air infeed
10 Electronic control unit
11 Water container (10 litres)
12 Burner
13 Heat exchanger
14 Power electronics
15 Heating rods 230 V ( Combi E only)
16 Overheating switch 230 V
17 FrostControl (safety / drain valve – UK version optional)
18 Drain valve (UK version)
Table of contents
Symbols used ........................................................................ 2
Intended use ....................................................................... 2
Safety instructions ............................................................ 3
Function description (Combi) ............................................ 6
Function description(CombiE) .......................................... 6
Operating instructions
Control panels .................................................................... 7
Room temperature sensor ................................................ 7
Safety / drain valve ............................................................ 7
A. FrostControl ..................................................................... 7
B. Drain valve ....................................................................... 8
Filling the water ................................................................. 8
Draining the water container ........................................... 8
Start-up ................................................................................ 8
Switching off ...................................................................... 9
Maintenance ....................................................................... 9
Solar systems ..................................................................... 9
Fuses .................................................................................... 9
Fuse 12 V ........................................................................... 9
230 V fuse ( Combi E) ........................................................ 9
Overheating protection 230 V ( Combi E) ........................ 10
Technical data ................................................................... 10
Dimensions ......................................................................... 10
Disposal ............................................................................. 10
Faults .................................................................................. 11
Troubleshooting guide (water supply) ................................. 11
Accessories ....................................................................... 11
Manufacturer’s Warranty
(European Union) .............................................................. 12
Combi (E)
Geändert Ludsteck 2017
17 18
2
3
5
7
8
9
11
10
14
15
16
4
12
13
6
6
1
Figure 1
Symbols used
Symbol indicates possible hazards.
Note containing information and tips.
Observe the ESD regulations.
Intended use
Proper use
– The appliance is approved solely for installation and opera-
tion in caravans of Vehicle Class O and motor caravans
of Vehicle Class M1, when the gas system is installed
in accordance with EN1949. National legislation and
regulations for operating and testing gas installations
(e.g. DVGWWorkSheet G 607 in Germany) must be
observed.
– The appliance may be used only as to heat drinking water
and the vehicle interior.
– If the appliance is operated while the vehicle is in motion,
facilities must be installed to prevent the uncontrolled es-
cape of liquid gas in the event of an accident (according to
UN-ECE Regulation 122).
– If the appliance is being used for commercial purposes, the
operator must ensure that special statutory and insurance
regulations of the respective destination country are ob-
served (e.g. DGUV regulations in Germany).

Truma Combi Series Specifications

General

Brand	Truma
Model	Combi Series
Category	Heater
Language	English
