19
230 V electrical connection
and IR receiver connection
The electrical connection may only be carried out by a
qualified professional installer (in Germany, for example,
qualified in accordance with VDE 0100, Part 721/754). The
instructions given here are not a challenge to the lay person to
carry out the electrical connection, but serve to provide addi-
tional information for the professional fitter whom you engage!

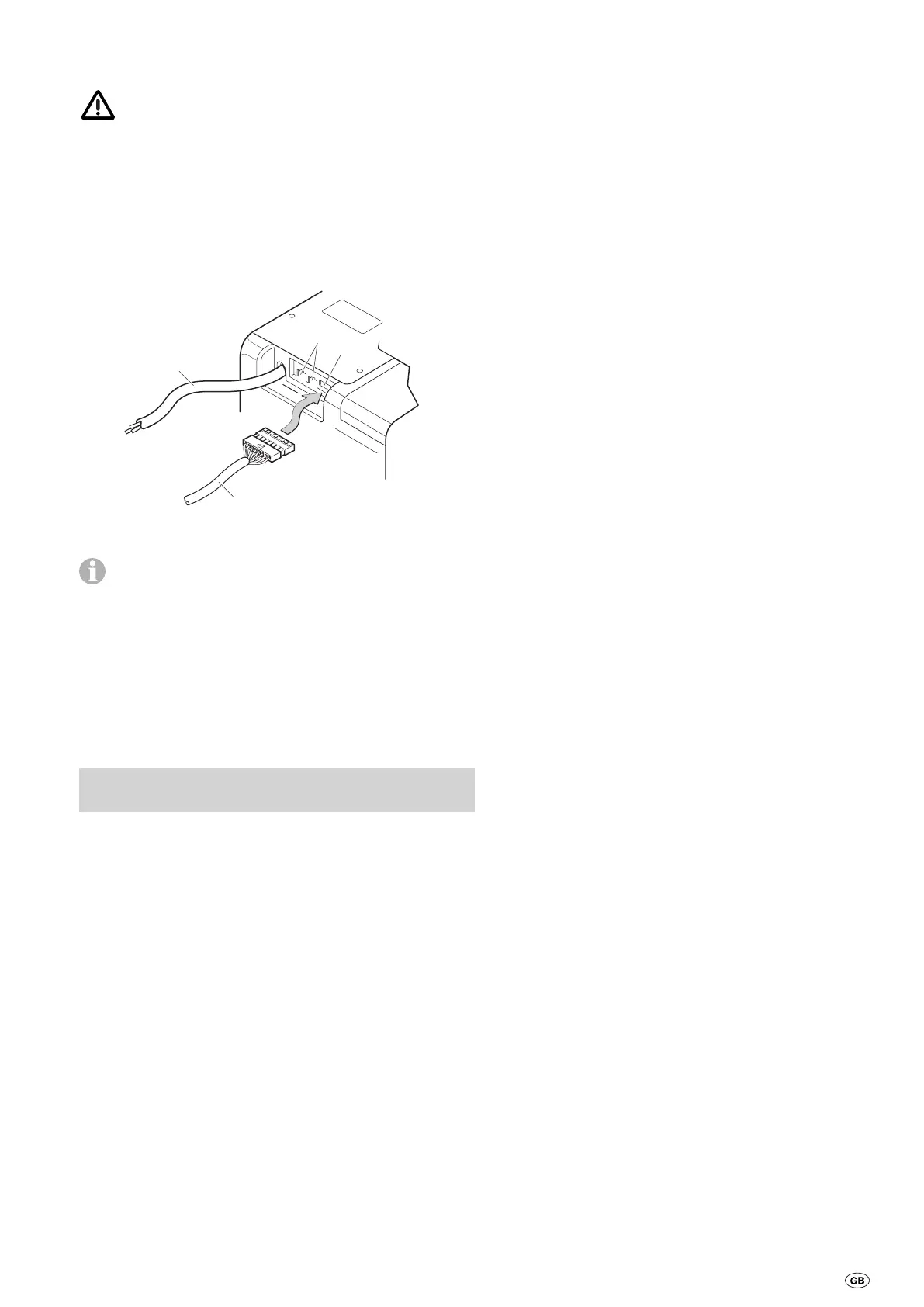

Establish the connection to the mains with the connection
cable (20), 150 cm long, to a lead in the vehicle, fused to at
least 10 A.
It is essential to ensure the correct cable colours are connected!
20
18
19
17
Insert plug of IR receiver cable (17) into socket (19).
The connection (17) is needed if the Saphir compact
air conditioning unit is being operated via a Truma
TG 1000 sinus power inverter (COM connection/communica-
tion a or b).
The cables must be long enough for the unit to be pulled out
of the false floor with the cables attached. All cables must be
secured with cable clips!
For maintenance or repair work, an isolating device must be
provided on the vehicle side to provide all-pole isolation from
the mains, with a contact interval of at least 3.5 mm.
Function test /
Mounting for the remote control
Position IR remote handset cradle as close as possible to the
IR receiver (12) so that the air conditioning unit can be operated
without removing the remote handset from the cradle.
In conclusion, all the functions of the device need to be tested
in accordance with the Operating Instructions.
The Operating Instructions and the completed guarantee card
are to be handed over to the vehicle owner.
