3. Attach the Armrests:
Before you install the armrests, locate the remote control in the middle of the leg rest.
E. Locate and unscrew the M6 bolts on the main seat frame using a Phillips head
screwdriver. Set aside. Locate the fixed hole on the back interior of the armrest. Press the
button located on the hole and insert it into the fixed bolt located on the backrest.
F. Connect the square metal tube into the corresponding piece on the seat frame.
G. Align the armrest with the bolt hole on the interior of the main seat frame and screw
the M6 bolts you set aside into the holes. You should screw in 2 bolts for each corner
(4 bolts total).
H. Connect the armrest air hose to the main seat frame air hose and make sure the
connection is secure.
I. Connect the LED wire located on the armrest to the main seat frame LED wire.
Note: Do not compress air hoses or LED wires during assembly.
Note on Disassembly: If you need to disassemble the armrests for any reason, remove
the shoulder device and the airbags located on the seat first. Then, reverse the
assembly process outlined above starting with detaching the seat, air hose and LED
wire.

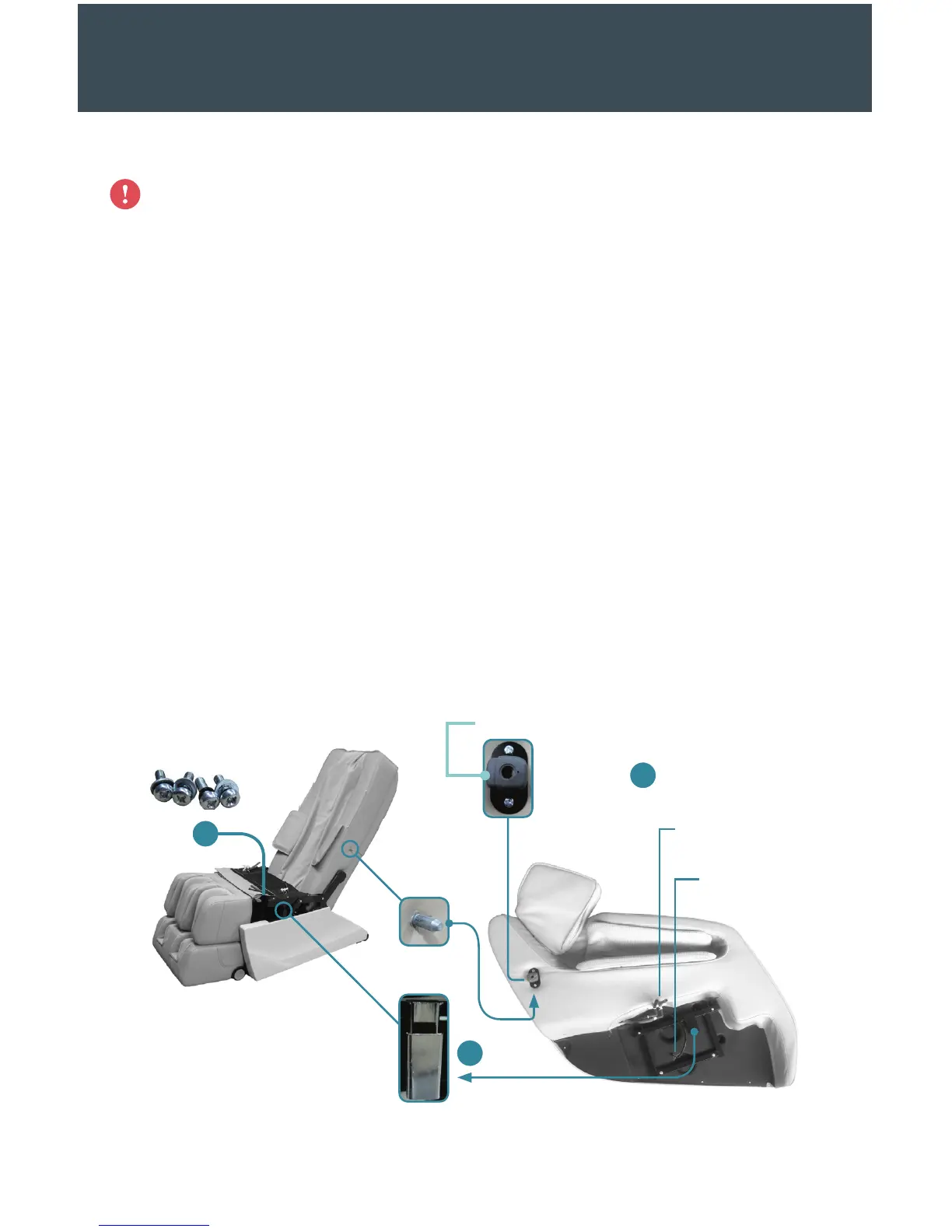

Bolts
Fixed Bolt
Fixed Bolt
LED Wire
Fixed Hole
Side of
Metal Frame
Button (Press to Insert/Release)
E
F
G
INSTALLATION
To Next Page
