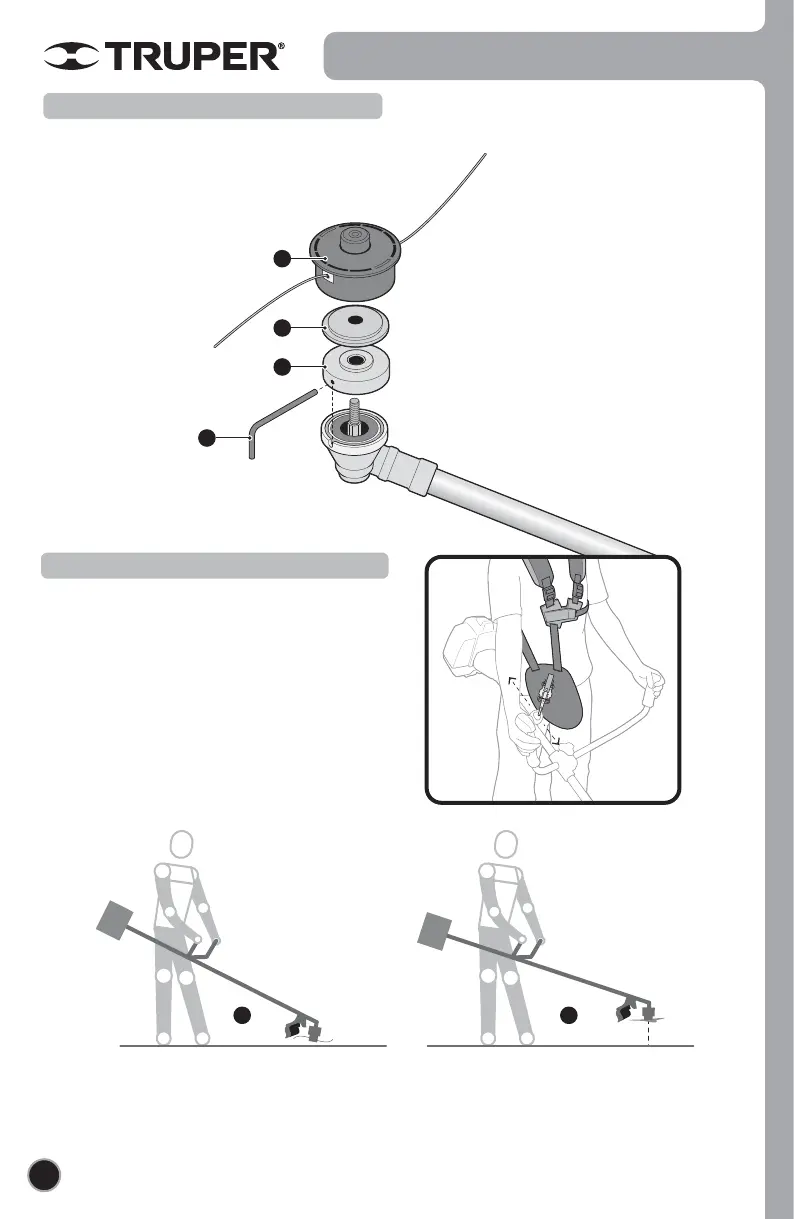

• Set the pressure turn table onto the cutter head (7).
• Set the flange onto the turn table (8).
• Insert the Allen key into the turn table side to block the
axis (5).
• Place the threaded spool in the axis
and tighten counterclockwise using
your hand (9).
• Use the guard with the protection.
See the guard section.
Line spool installation
8
9
7
5
8
Assembly
A B
• Wear the harness and adjust to set it firmly and
comfortably.
• Join the harness into the harness ring of the straight axis
of the grass trimmer.
• Travel the ring upwards and downwards until the grass
trimmer is balanced and the cutter head points down,
below the user’s waist and no more than 30” away from
the ground.
• When using the line spool, the cutter head shall touch
the ground slightly (A).
• When using the blade, the cutter head shall be
approximately 8” away from the ground (B).
Balancing the grass trimmer
8”
