Use care and do not touch the
thread cutter blade sharp edge.
7

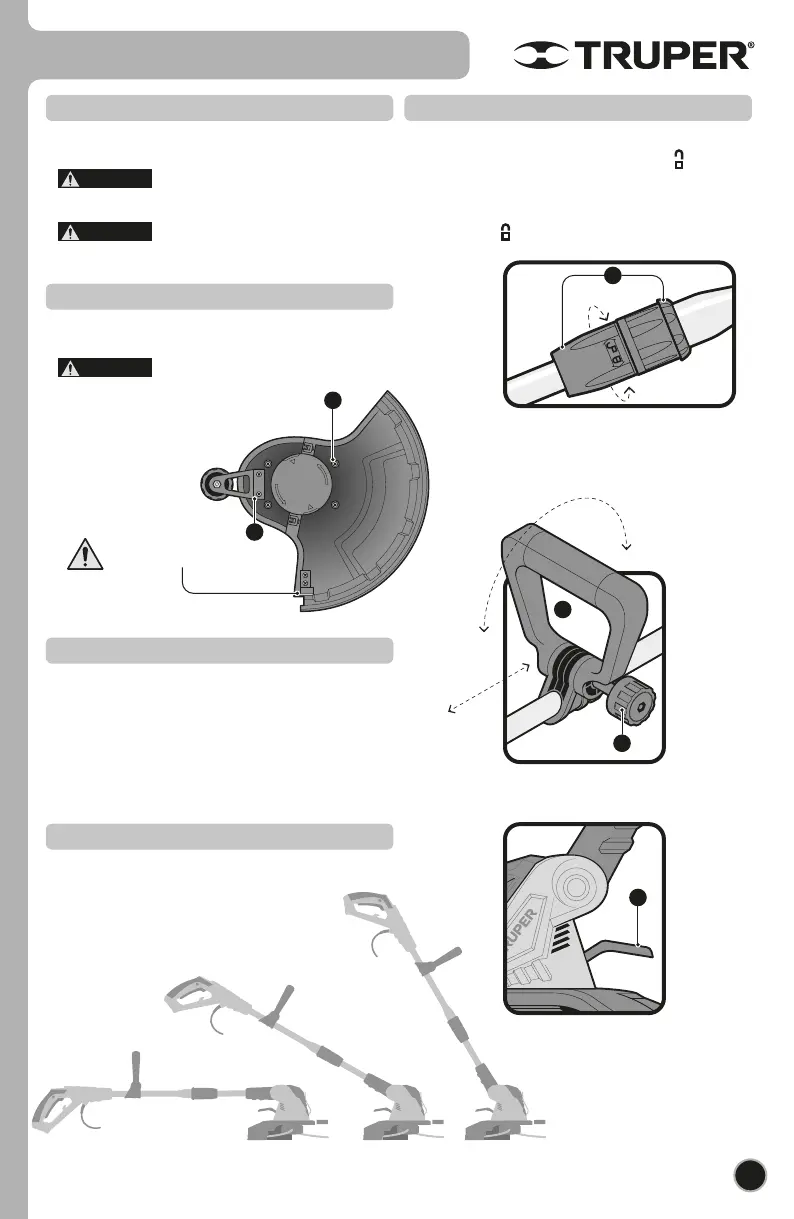

Assembly
Guard
• To assemble and disassemble the guard tighten or
loosen the four screws (A) in the bottom of the guard.
• Operating the tool with the guard
removed increases the risk of accidents and damage to
the tool.
• Turn off and disconnect the trimmer
before assembling or disassembling the guard.
Guide to Trim Edges
Adjust the Telescopic Shaft
• To assemble and disassemble the edger guide tighten or
loosen the two screws (B) in the bottom of the guard.
• Turn off and disconnect the trimmer
before assembling or disassembling the guide.
• Disconnect the Trimmer. Unscrew the adjusting
knob (A) turning into the open lock direction( ).
• Expand or retract the shaft into the position it suits
best.
• Tighten the adjusting knob turning into the closed
lock direction ( ).
D
G
C
B
A
ENGLISH
CAUTION
CAUTION
CAUTION
H
Adjusting the auxiliary handle
• Place the auxiliary handle on the main handle housing (D).
• Insert the screw into the handle and housing hole (E).
• Adjust the auxiliary handle to the desired angle (F).
• Tighten the knob (G) to lock the handle´s position.
Head tilt Adjustment
• Step on the pedal (H) and tilt the head to the best
position for the work to be done.
60° for mowing in open areas
30° for hard to reach areas
0° for edging (see page 8)
