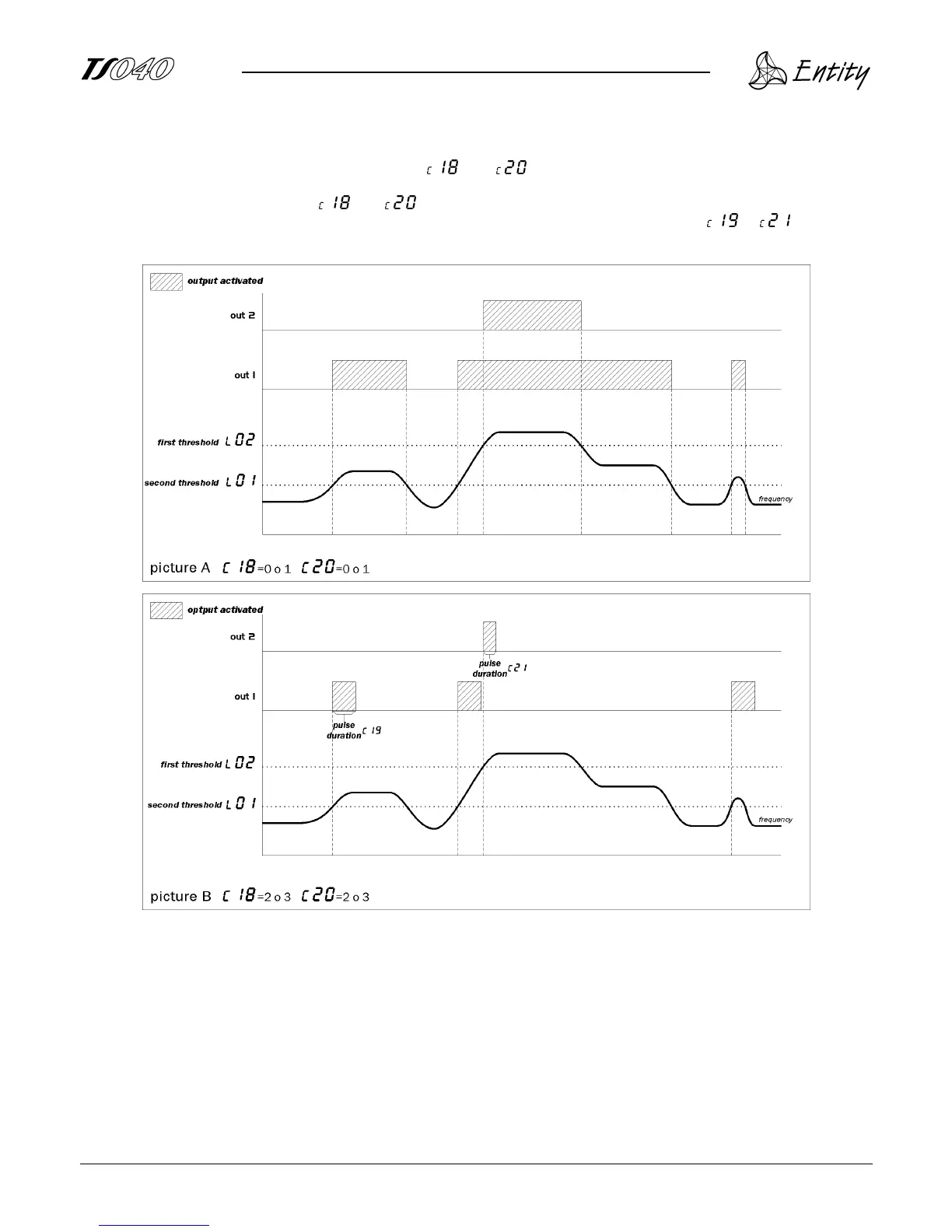

Outputs have positive or negative logic, as set in and . If these parameters values are 0 or 1, output is
activated as soon as measured value gets greater than set threshold and continues to be activated until the measured
value gets lower than it (pic. A); if and ’s values are set to 2 or 3, output will activate as soon as measured
value gets greater than set threshold, stays activated for as many seconds as they are set with or , and then it
is turned off even if measured value is still behind threshold one (pic. B).
